Square D™

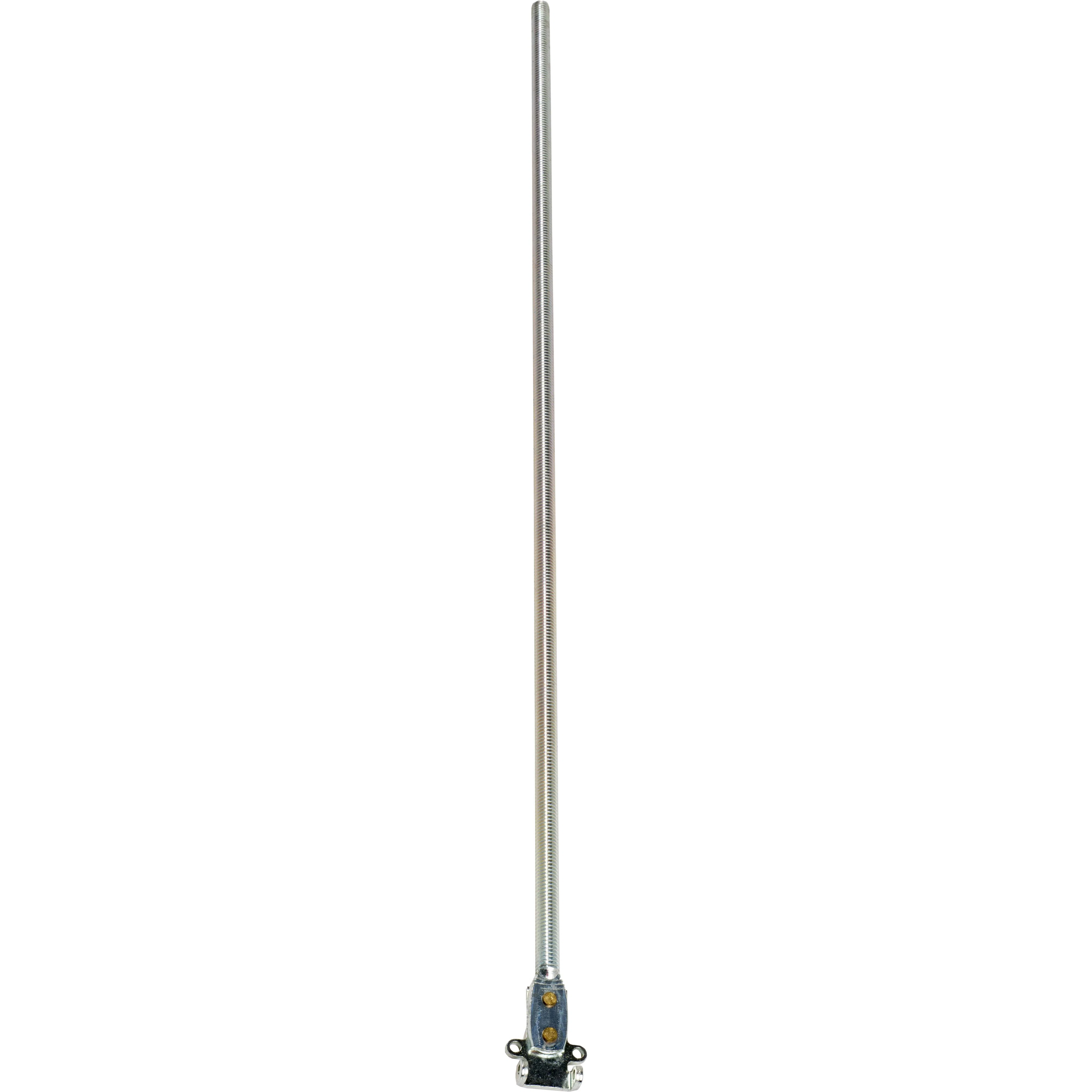

9422R2 Extra Long Operating Rod, For Use With Class 9422 Variable Depth Mechanism Disconnect Switch, Direct Mount

MFR:
Schneider Electric
MFR #:
9422R2
UPC:
785901479253
Item #:
5934

Availability

Location Available Qty
Available Available to Order
$107.53 each

This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This extra long operating rod will extend the variable depth of the 9422R operating mechanisms by 7 inches. This rod can be substituted for the standard rod included with each 9422R or 9422AR mechanism. Two of these kits are required for 9422ARR, 9422RR, 9422ART, 9422RT, 9422ATE, 9422TE, 9422ATF or 9422TF mechanisms.

Manuals and Documentation

Features

  • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
  • Two mounting methods offered for flexibility
  • Disconnect switches were designed for control panel installations
Manufacturer Part Number 9422R2
Brand Square D™
Manufacturer Schneider Electric
UPC 785901479253
EAN 0785901479253
Country Of Origin MX
Specifications Direct Mount
Suitable For Use With Class 9422 Variable Depth Mechanism Disconnect Switch
Type Extra Long
Alternative Part Number 8061476
Manufacturer Item Status Active
Country USA
Warranty 18 months
Standards Approvals UL File No. E52639 CCN NKCR | CSA File No. LR44199 | eccn: EAR99 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
