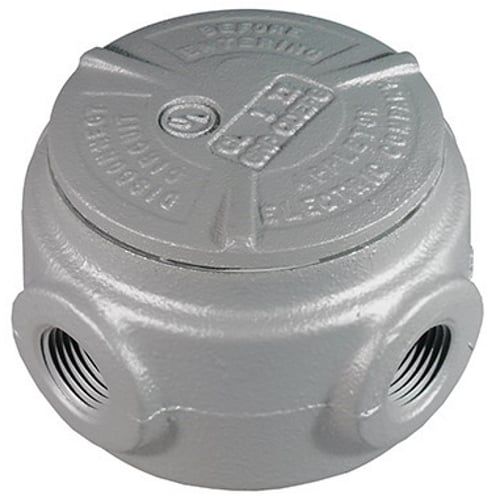

Conduit Body with Cover, 1 inch, Malleable Iron, Zinc Electroplated
- MFR:
- Appleton Electric
- MFR #:
- GRJS100
- UPC:
- 781381440950
- Item #:
- 59200
Conduit Body with Cover, 1 inch, Malleable Iron, Zinc Electroplated
- MFR #:
- GRJS100
- UPC:
- 781381440950
- Item #:
- 59200
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$174.37
each
UNILETS Universal Outlet Box, Number Of Outlet: 5, Material: Malleable Iron, Size: 1 IN, Cable Entry: (5) 1 IN GRJS Hub, Cubic Capacity: 7.3 CU-IN, Knockouts: No, Cover Opening: 2.56 IN, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 1.94 IN,
Manuals and Documentation
Features
- High tensile strength and ductility
- Furnished with covers
- Accurately tapped, tapered hub threads for tight
| Catalog Number | GRJS100 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (5) 1 IN GRJS Hub |
| Cubic Capacity | 7.3 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover; General purpose wiring; Universal design with five threaded openings and three close-up plugs; Compact round box for use where space is limited; Serve as mounting means for lighting fixtures when used with hub cover; Internally threaded body with externally threaded cover; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381440950 |
| GTIN | 00781381440950 |
| Item Type | Universal Outlet Box |
| Length | 6.7000 |
| Length UOM | Inch |
| Width | 5.1000 |
| Width UOM | Inch |
| Height | 3.6000 |
| Height UOM | Inch |
| Weight | 1.330 |
| Weight UOM | Pounds |
| Size | 1 |
