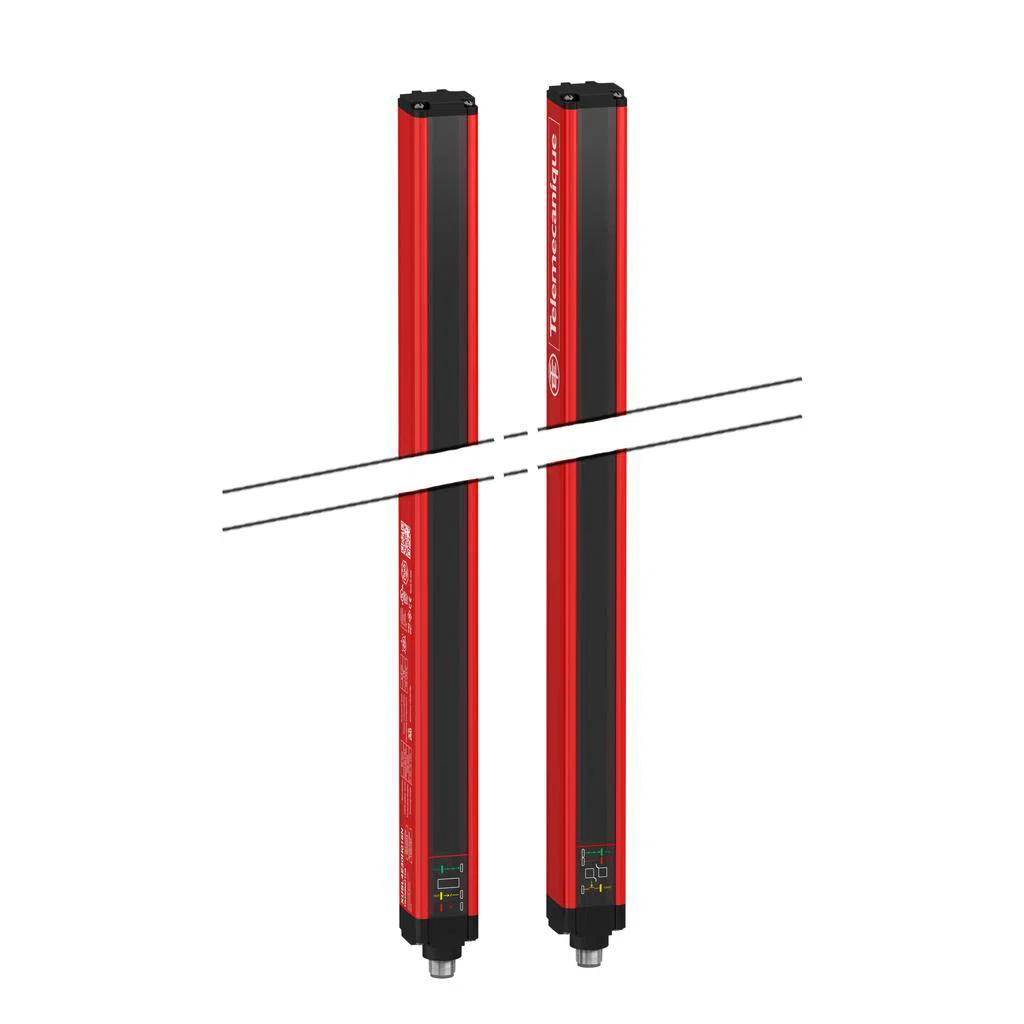

XUSL4E30H046N Preventa Type 4 Safety Light Curtain, 29.4 mm W, 460 mm H Protected, 0 to 12/0 to 4 m by Cabling Operating, 23 Beams, 513 mm OAH
- MFR:
- YAGEO Corporation
- MFR #:
- XUSL4E30H046N
- UPC:
- 785901991540
- Item #:
- 591898
XUSL4E30H046N Preventa Type 4 Safety Light Curtain, 29.4 mm W, 460 mm H Protected, 0 to 12/0 to 4 m by Cabling Operating, 23 Beams, 513 mm OAH
- MFR #:
- XUSL4E30H046N
- UPC:
- 785901991540
- Item #:
- 591898
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XUSL4E Type 4 safety light curtain is designed for hand detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 23 light beams with a protected height of 460 mm. Its PFHD reliability data is 9.47 x 10. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -30 to 55 deg C and the sensing distance is 0 to 4 m or 0 to 12 m selectable by wiring.
Manuals and Documentation
Features
- Test muting through external safety module XPSLCMUT1160 LED display of operating modes and faults
| Manufacturer Part Number | XUSL4E30H046N |
| Brand | Telemecanique |
| Manufacturer | YAGEO Corporation |
| UPC | 785901991540 |
| EAN | 3389119618335 |
| Country Of Origin | FR |
| Enclosure Type | IP65/IP67 |
| Housing Material | Aluminum |
| Series | XUSL4E |
| Type | Type 4 |
| Overall Height | 513 mm |
| Size | 29.4 mm W |
| Alternative Part Number | 14838618 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 18 months |
| Standards Approvals | CE Certified | TUV Certified | cULus Listed | 89/655/EEC Work Equipment | 89/336/EEC Electromagnetic Compatibility | 98/37/EEC Machinery | 10 gn 16 ms IEC 61496-1 Shock Resistance | 0.35 +/- 0.05 mm 10 to 55 Hz IEC 61496-1 Vibration Resistance | RoHS Compliant | REACH Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | Green Premium™ Listed |
| Application | For hand protection |
| Includes | Adjustable Mounting Bracket, Receiver, Transmitter and User Guide with Certificate of Conformity on CD-ROM |
| Aperture Angle | 2.5 deg at 3 m |
| Connection Type | 5-Pin M12 Male Connector Transmitter/8-Pin M12 Male Connector Receiver |
| Light Source | LED |
| Number Of Beams | 23 |
| Operating Range | 0 to 12/0 to 4 m by Cabling |
| Output Current | 0.4 A |
| Power Supply | 2 A |
| Protected Height | 460 mm |
| Reset Type | Automatic/Manual |
| Response Time | 7.5 ms |
| Safety Output Rating | 2 OSSD Solid-State PNP Arc Suppression |
| Storage Operating Temperature | -13 to 158/-31 to 158/14 to 131/-22 to 131 deg F |
| Supply Voltage | 24 V DC |
