Discontinued

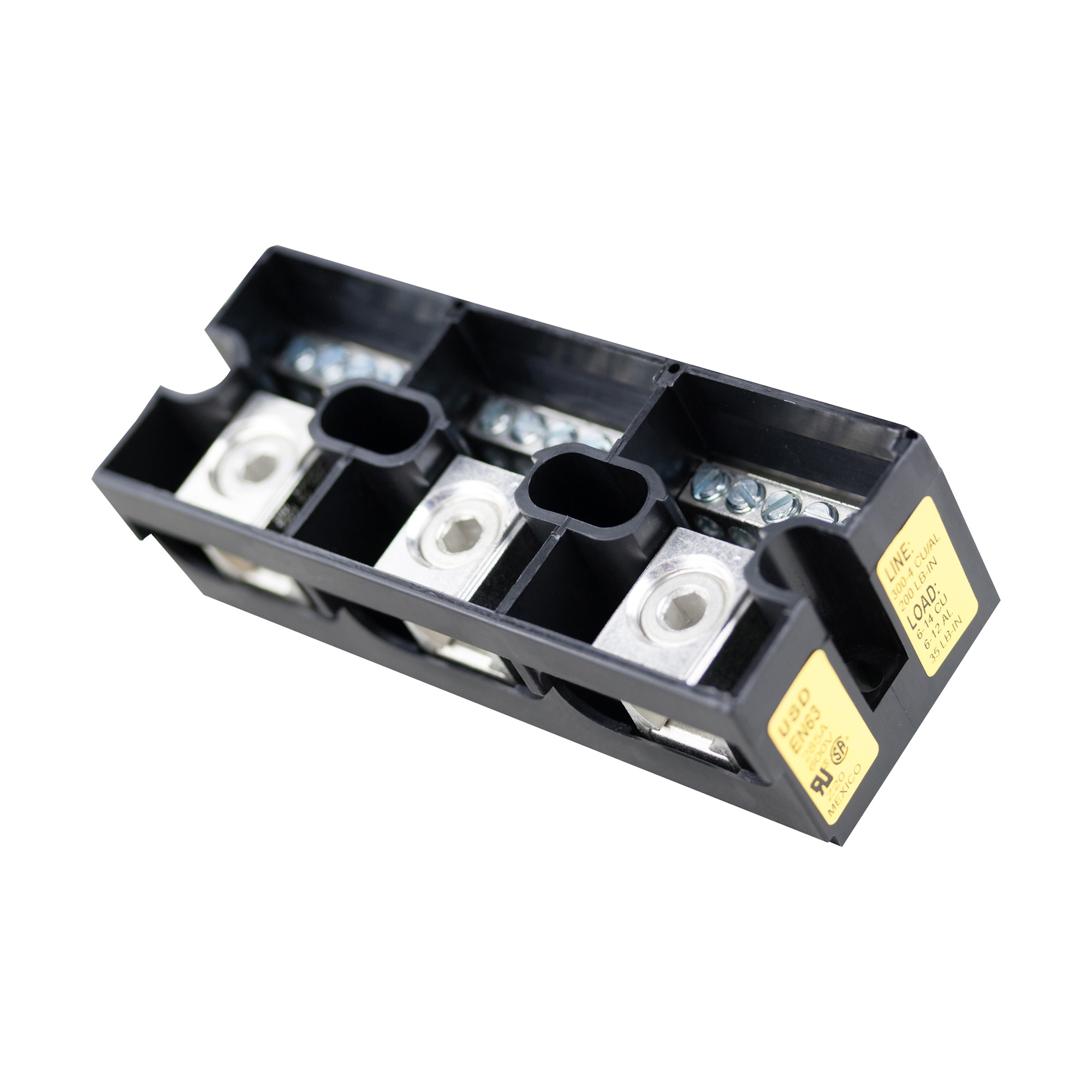

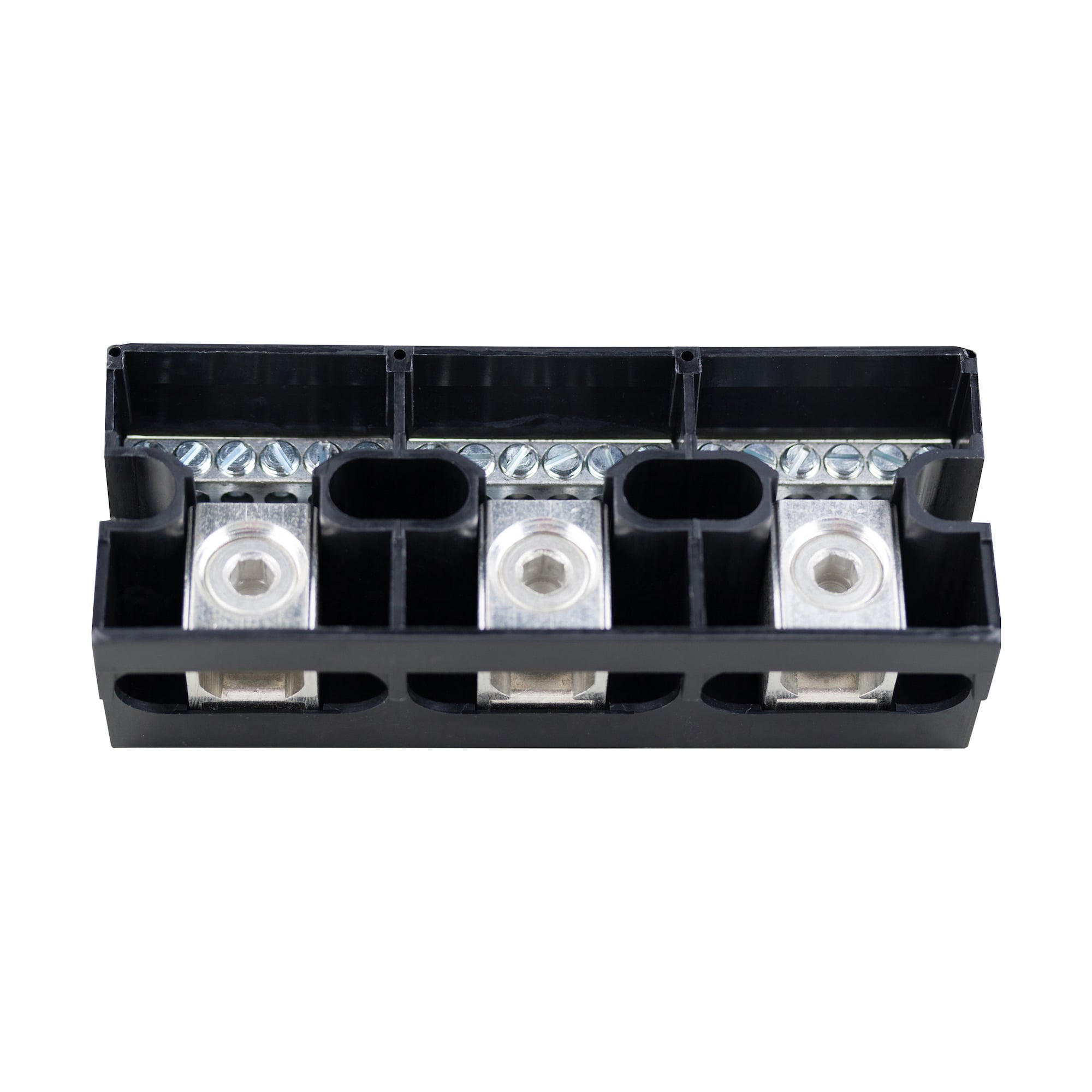

EN63 Power Distribution Block, 600 VAC/VDC, 285 A, 3 Poles, 4 AWG to 300 kcmil Cu/Al Line, (6) 14 to 6 AWG Cu, (6) 14 to 8 AWG Al Load Wire, Thermoplastic
- MFR:
- Eaton Bussmann
- MFR #:
- EN63
- UPC:
- 051712581035
- Item #:
- 59181
Discontinued
EN63 Power Distribution Block, 600 VAC/VDC, 285 A, 3 Poles, 4 AWG to 300 kcmil Cu/Al Line, (6) 14 to 6 AWG Cu, (6) 14 to 8 AWG Al Load Wire, Thermoplastic
- MFR #:
- EN63
- UPC:
- 051712581035
- Item #:
- 59181
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
| Catalog Number | EN63 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 285 |
| Application | Stationary Mach Equip In Factory - Robotics |
| Color | Black |
| Material | Molded Thermoplastic |
| Special Features | Operating Temperature 125 Deg C, Torque Rating 200 Lb-In (Line), 20 Lb-In (Load) |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712581035 |
| GTIN | 00051712581035 |
| Length | 5.25 |
| Length UOM | Inch |
| Width | 1.5 |
| Width UOM | Inch |
| Height | 2 |
| Height UOM | Inch |
| Weight | 0.509 |
| Weight UOM | Pounds |
| Size | 5.37 In Length X 2.12 In Width X 1.68 In Height |
| Operating Temperature | 125 °C |
| Torque Rating | 20 lb-in |
| Voltage Rating | 600 V |
