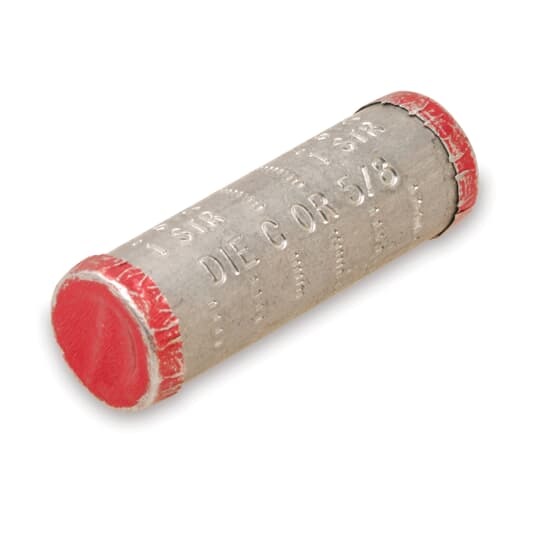

CS72 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 4 to 1 AWG ACSR/Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
- MFR:
- ABB - Installation Products
- MFR #:
- CS72
- UPC:
- 783786100606
- Item #:
- 59126
CS72 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 4 to 1 AWG ACSR/Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
- MFR #:
- CS72
- UPC:
- 783786100606
- Item #:
- 59126
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.32
each
Manuals and Documentation
| Catalog Number | CS72 |
| Manufacturer | ABB - Installation Products |
| Brand | BLACKBURN MECHANICAL |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
| Conductor Range | End A: #2 (6/1,7/1) ACSR , #1 to #2 STR End B: #4 (6/1,7/1) ACSR , #3 to #4 STR , #2 SOL |
| Connection | Compression |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All Splices are color coded and marked with strip lengths, installation die codes and compression locations, providing easy identification for easy installation |
| Standard | RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
| UPC | 783786100606 |
| GTIN | 00783786100606 |
| Item Type | Compression Splice Service Entrance |
| Size | 2 Inch |
| Environmental Conditions | All Seasons / Conditions |
| Cross Reference Products | 3M CIT5|ABBInstall CS72|ABBInstall U1B24|ALCOA 1361|Burndy YSU2R2|Burndy YSU2R2W|ESP ACS24|Frankel ARG24|Kearney 20689|NAED 14123 |
