Discontinued
Panduit®

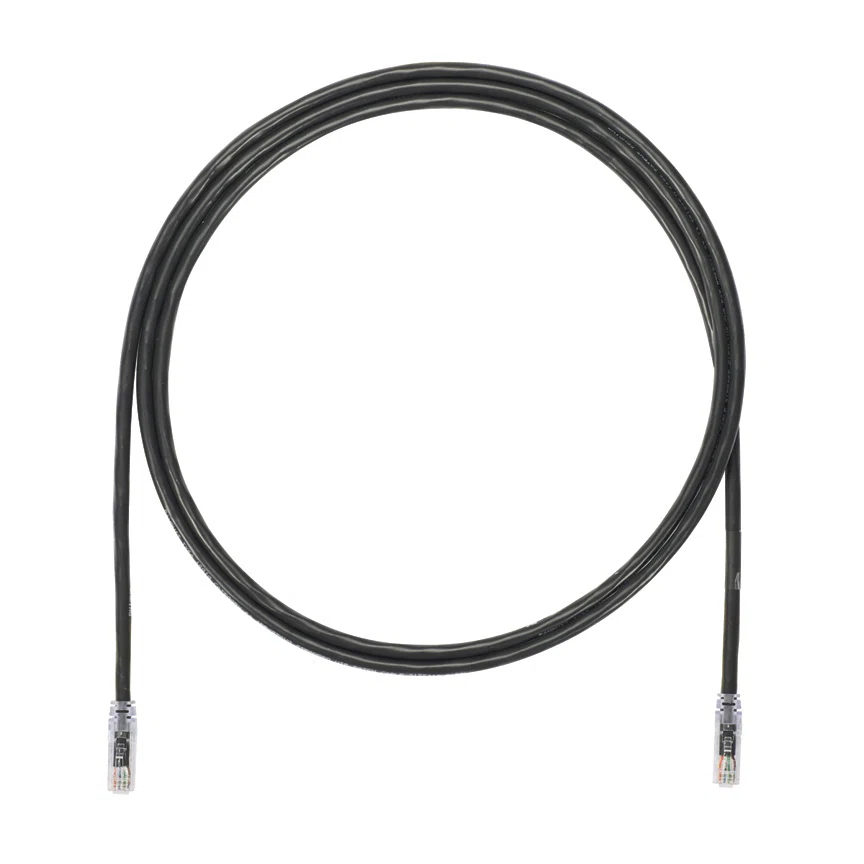

UTP6A5BL PanNet TX6A 10Gig U/UTP Patch Cord, Cat 6a, 24 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 5 ft L Cord

MFR:
Panduit
MFR #:
UTP6A5BL
UPC:
074983096893
Item #:
59093

Availability

Location Available Qty
Available Available to Order

Category 6A/class EA, UTP patch cords shall be constructed of 24 AWG stranded copper cable with an enhanced performance modular plug on each end. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All four pairs shall be surrounded by matrix tape and a flame retardant jacket. The patent pending matrix tape shall suppress alien crosstalk and allow 10 Gbps transmission. Patch cord cable shall be offered in multiple colors and lengths for design flexibility with a strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Manuals and Documentation

Features

  • Matrix technology
  • Superior headroom warranty
  • Flexible cable design
  • Centered de-embedded plug
  • Patented tangle-free latch
  • 100% performance tested
  • Slender strain relief boot
  • Robust construction
  • Interoperable
  • MaTriX Tape Technology
  • 100% performance tested
  • Superior headroom warranty
  • Flexible cable design
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
  • Variety of cable colors and lengths
Manufacturer Part Number UTP6A5BL
Brand Panduit®
Manufacturer Panduit
UPC 074983096893
EAN 0074983096893
Country Of Origin CR
Category Type Cat 6a
Conductor Size 24 AWG
Conductor Type Stranded Copper
Connector Type RJ45 Modular Plug
Cord Length 5 ft
Jacket Color Black
Series UTP6A
Temperature Rating 14 to 140 deg F
Type U/UTP
Alternative Part Number 10599798 | 10879086
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ANSI/TIA-568-C.2 | ANSI/TIA-1096-A | ISO 11801 Class EA | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt Type 3 and Type 4 for PoE Compliance | UL 1863 | IEC 60603-7 | CE Marked | CM Flammability Rating | Meets IEC 60603-7 | CSA Approved
Application 10GBASE-T (Ethernet), Data Center I/O Consolidation, Data Center Server Virtualization, Consolidation of Network Interconnects, Back-Bone Aggregation, Parallel Processing and High Speed Computing Applications
