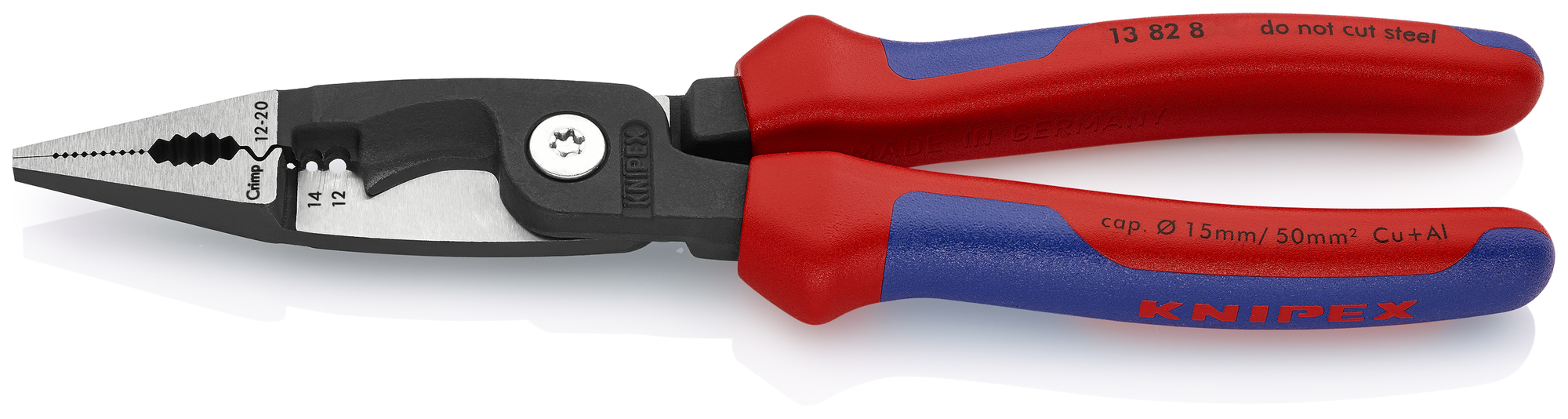

6-in-1 Electrical Installation Pliers 12 and 14 AWG, 8 in., Multi-Component
- MFR:
- KNIPEX Tools
- MFR #:
- 13 82 8 SBA
- UPC:
- 843221012106
- Item #:
- 590059
6-in-1 Electrical Installation Pliers 12 and 14 AWG, 8 in., Multi-Component
- MFR #:
- 13 82 8 SBA
- UPC:
- 843221012106
- Item #:
- 590059
Availability
| Location | Available Qty |
|---|---|
| Available | 6 ea |
6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs. Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²). Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²). Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32" dia. (5 x 2.5 mm² / dia. 5 mm). Slim head dimensions for easier access. Bolted joint: precise, zero-backlash operation of pliers. High-grade special tool steel; forged, multi stage oil-hardened.
Manuals and Documentation
Features
- 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs

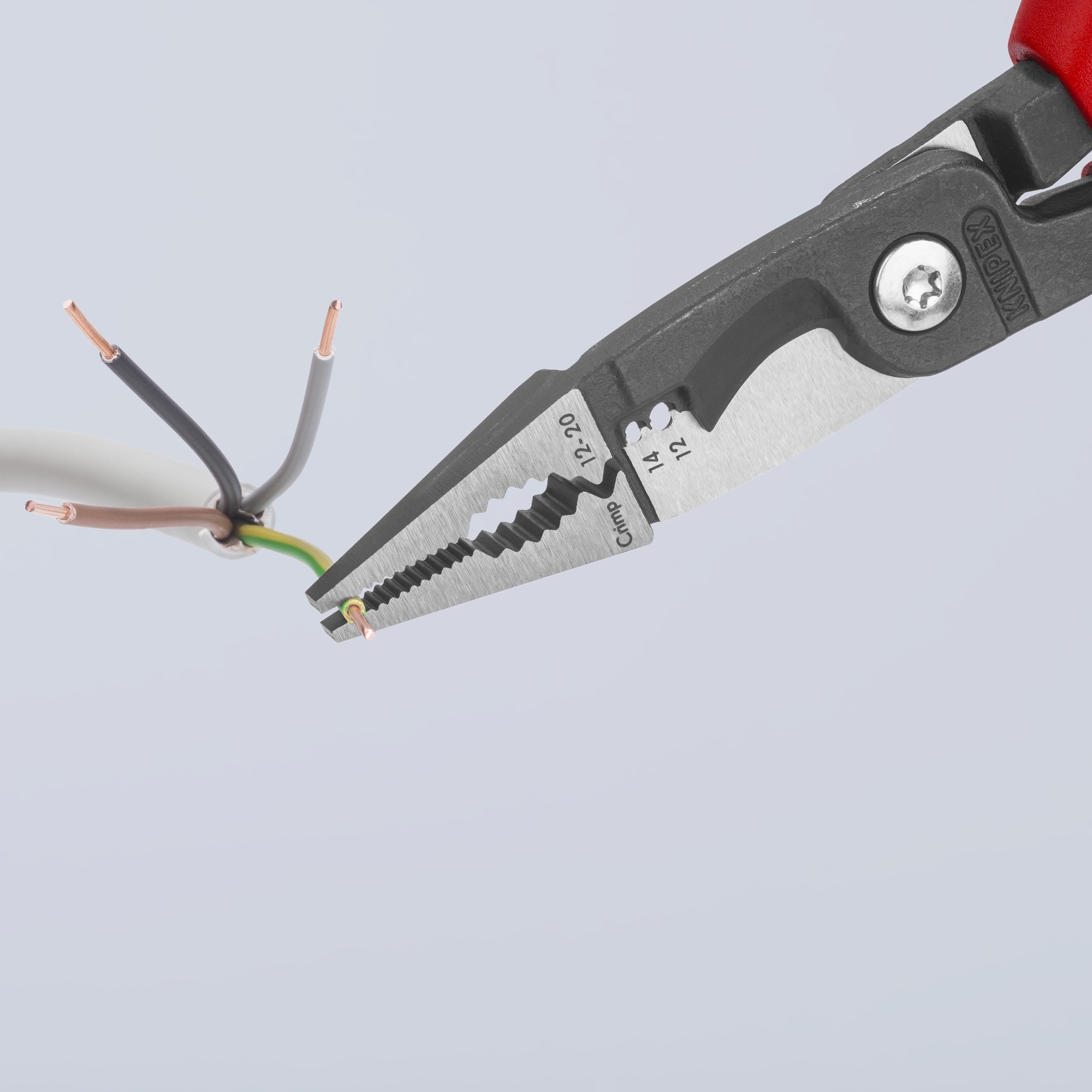

- Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
- Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

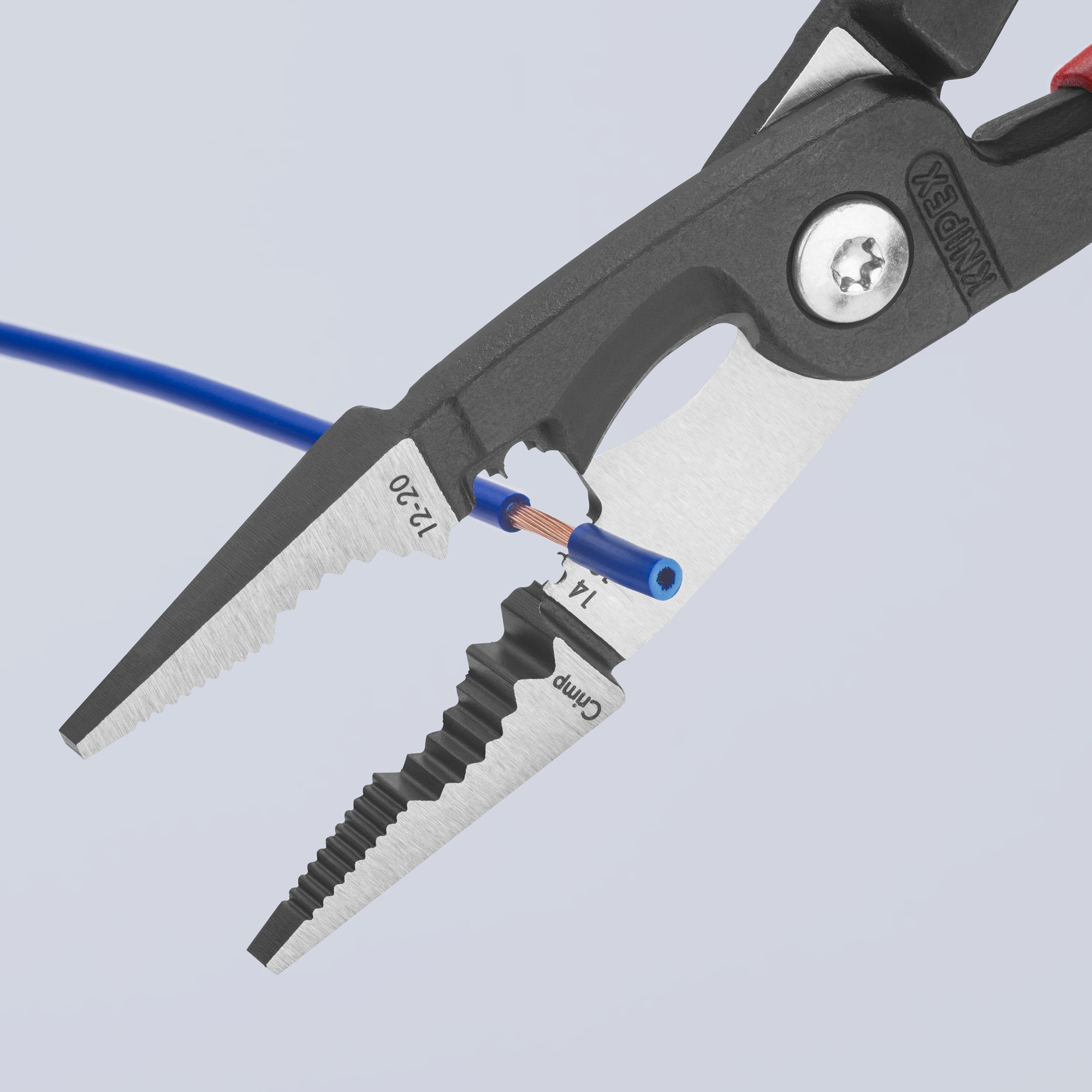

- Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)

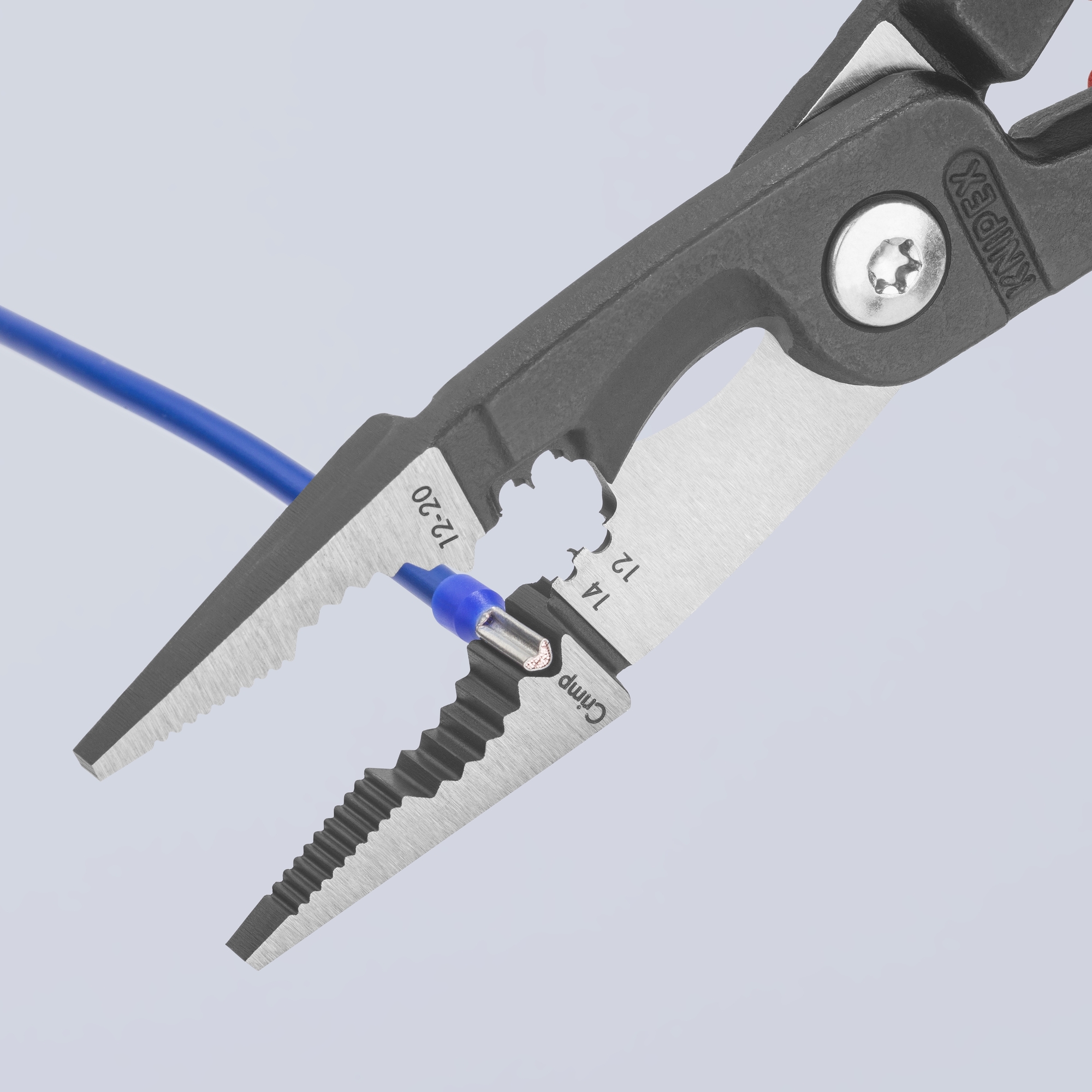

- Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)
- Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32" dia. (5 x 2.5 mm² / dia. 5 mm)
- Slim head dimensions for easier access
- Bolted joint: precise, zero-backlash operation of pliers
| Catalog Number | 13 82 8 SBA |
| Manufacturer | KNIPEX Tools |
| Brand | KNIPEX |
| Country of Origin | Germany |
| Finish | Polished |
| Material | High-grade special tool steel, forged, multi stage oil-hardened |
| UPC | 843221012106 |
| GTIN | 00843221012106 |
| Item Type | Wire Strippers and Dismantling Tools > Wire Strippers |
| Length | 8.25 |
| Length UOM | Inch |
| Width | 1.8 |
| Width UOM | Inch |
| Height | 0.85 |
| Height UOM | Inch |
| Weight | 0.59 |
| Weight UOM | Pounds |
| Nominal Size | 8.25 |
