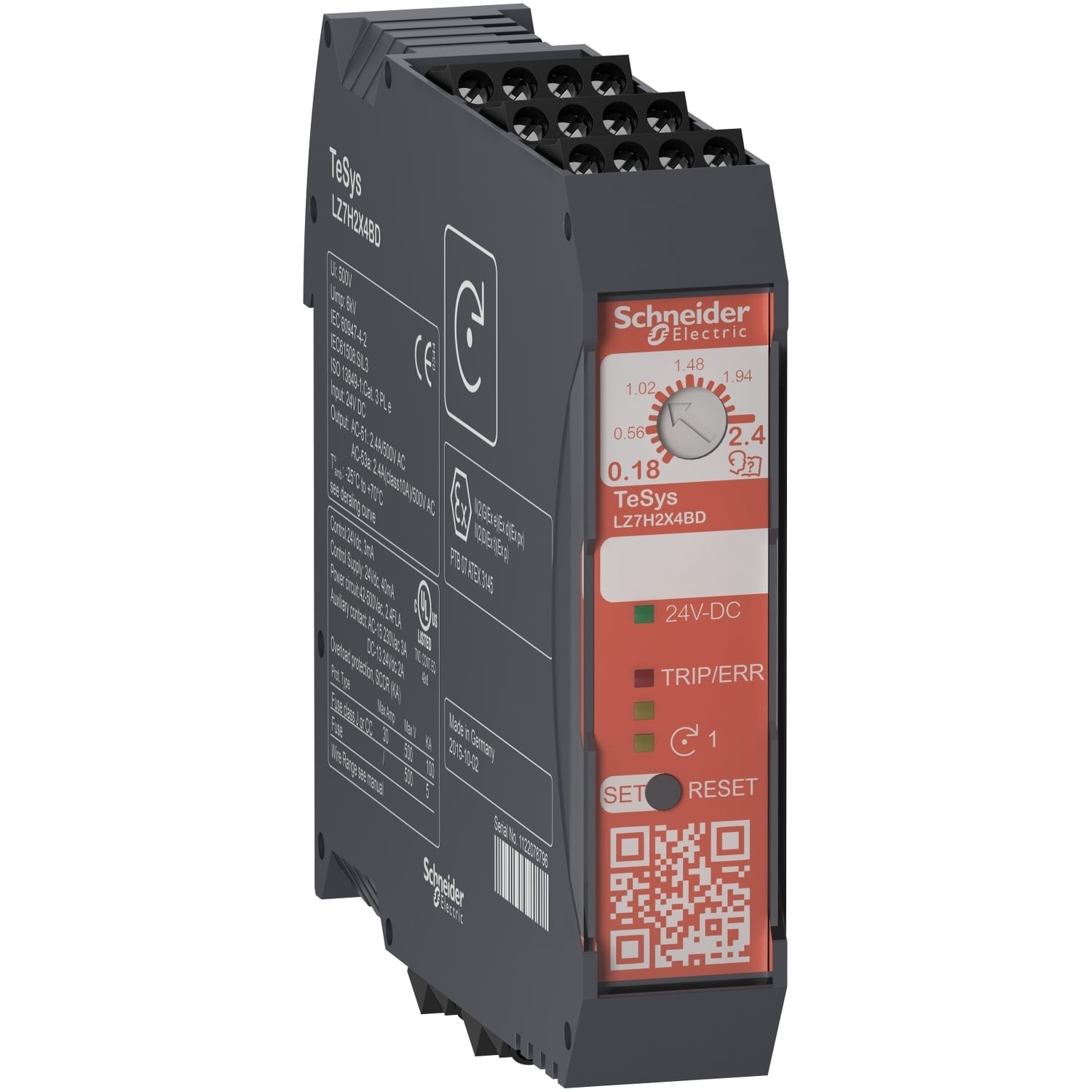

LZ7H2X4BD Ultra Compact Motor Starter, 24 VDC V Coil, Direct Action, 3 Poles, IP20 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- LZ7H2X4BD
- Item #:
- 587087
LZ7H2X4BD Ultra Compact Motor Starter, 24 VDC V Coil, Direct Action, 3 Poles, IP20 Enclosure
- MFR #:
- LZ7H2X4BD
- Item #:
- 587087
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys H ultra compact direct safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70C. Multi standards certified (IEC, UL, CCC).
Manuals and Documentation
| Catalog Number | LZ7H2X4BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Germany |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422433159&lang=en-us |
| GTIN | 03606485421018 |
