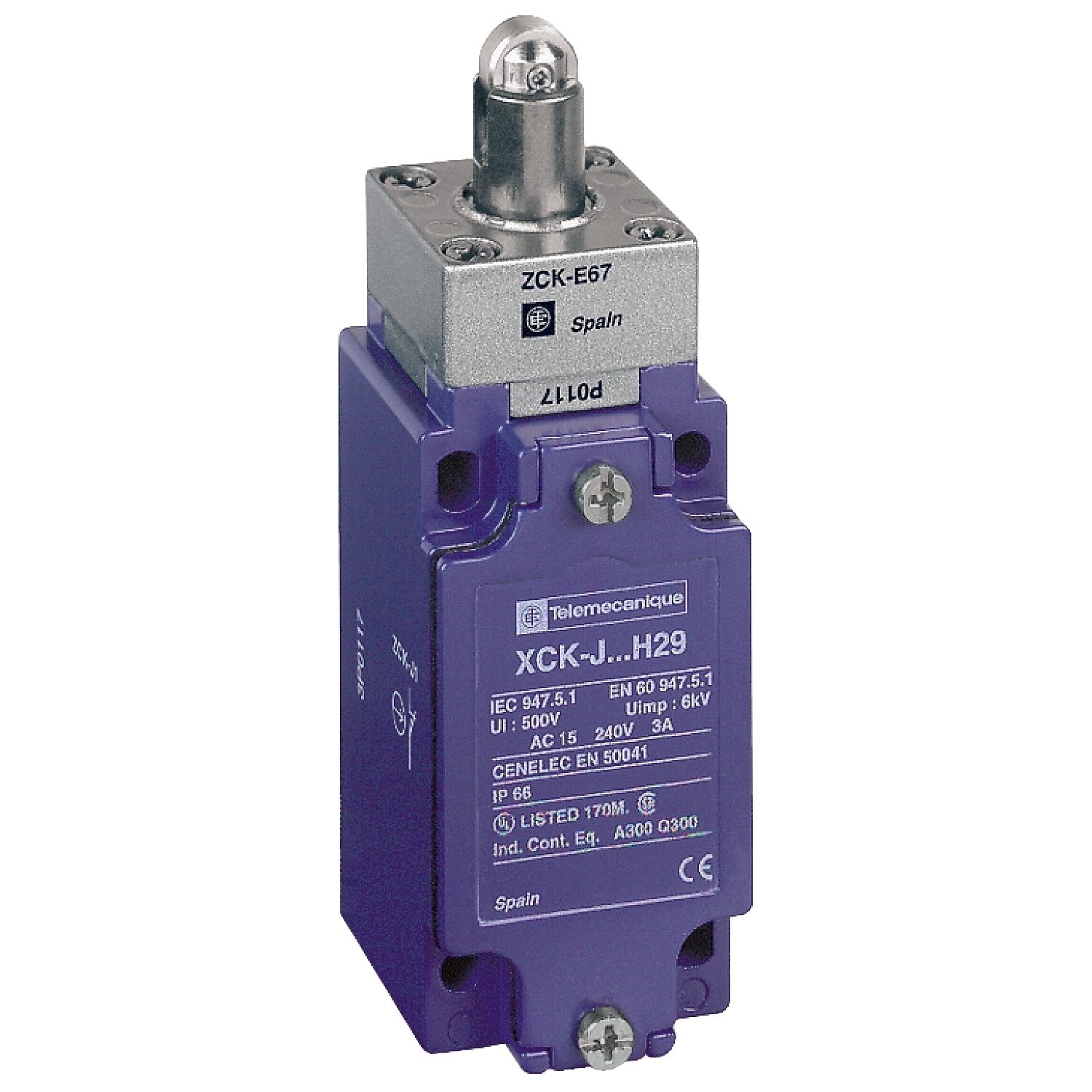

XCKJ567 OsiSense Fixed Heavy Duty Standard Format Limit Switch, 240 V AC/250 V DC, 0.27/3 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ567
- UPC:
- 785901320715
- Item #:
- 586237
XCKJ567 OsiSense Fixed Heavy Duty Standard Format Limit Switch, 240 V AC/250 V DC, 0.27/3 A, Roller Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKJ567
- UPC:
- 785901320715
- Item #:
- 586237
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$150.83
each
limit switch XCKJ - steel roller plunger reinforced - 1NC+1NO - slow - Pg13
Manuals and Documentation
| Catalog Number | XCKJ567 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Slow-break, break before make;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal reinforced |
| Amperage Rating | 10 |
| Application | INDUSTRIAL |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4/12 IP 66 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-CCC-UL,IEC 60204-1-IEC 60947-5-1-CSA C22.2 NO 14-EN 60947-5-1-UL 508-EN 60204-1-CENELEC EN 50041,IK07 EN 50102,IP66 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856428&lang=en-us |
| UPC | 785901320715 |
| GTIN | 03389110645996 |
| Item Type | Limit switch |
| Size | 1.73 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
