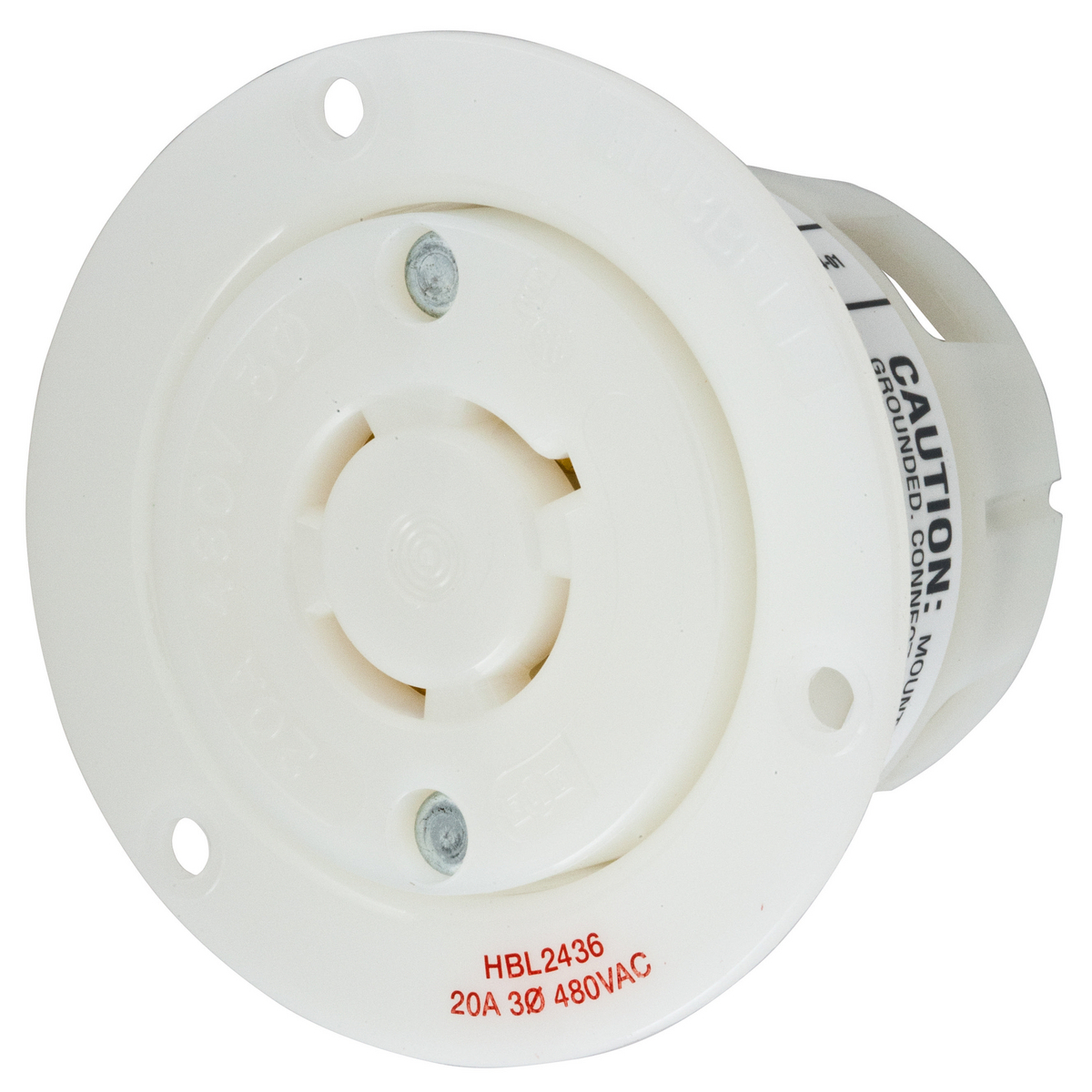

HBL2436 HBL 3-Phase Flanged Grounding Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 3 Poles, 4 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2436
- UPC:
- 783585038346
- Item #:
- 58595
HBL2436 HBL 3-Phase Flanged Grounding Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 3 Poles, 4 Wires, White
- MFR #:
- HBL2436
- UPC:
- 783585038346
- Item #:
- 58595
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$87.22
each
Manuals and Documentation
| Catalog Number | HBL2436 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Insulgrip |
| Color | White |
| Connection | Screw Terminal |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585038346 |
| GTIN | 00783585038346 |
| Item Type | Flanged Receptacle |
| Size | 3.06 in x 3.06 in x 2.27 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3 Phase 480 |
| Wattage | 9,600 W |
| Wire Size | #16 AWG to #8 AWG |
