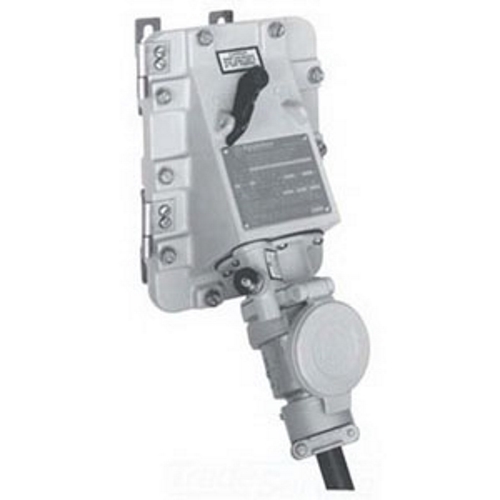

Grounding Style 2 JBR Series Switched Receptacle with Mounting Box; 30 Amp, 600 Volt AC, 4-Pole, 3-Wire, Pressure Wire Terminal
- MFR:
- Appleton Electric
- MFR #:
- JBR3034150
- UPC:
- 781381632737
- Item #:
- 58465
Grounding Style 2 JBR Series Switched Receptacle with Mounting Box; 30 Amp, 600 Volt AC, 4-Pole, 3-Wire, Pressure Wire Terminal
- MFR #:
- JBR3034150
- UPC:
- 781381632737
- Item #:
- 58465
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,986.00
each
JBR Series Switched Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 10 - 4 AWG Copper-Aluminum, Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 7BCD, 9FG, Mounting: Surface Mount With 1-1/2 IN Hub, Motor Horsepower: 20 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 8-1/4 IN Width X 13.07 IN Height X 10.28 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups F, G, Class III, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL Listed: E10784, For ACP3034BC And CPH3034B Plugs
Manuals and Documentation
| Catalog Number | JBR3034150 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | For ACP3034BC And CPH3034B Plugs |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Surface |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | JBR is UL Listed for use with ACP Powertite and CPH plugs; Receptacle supplied with flip cover and screw cover; Terminal block provided in mounting box for ease of wiring; Factory wired between the receptacle and terminal block; Style 2 (shell and extra pole) grounding; Receptacles may be locked in the OFF position; Mounting box provided 1-1/2 IN vertical feed-thru conduit openings, reducer bushings provided for 1-1/4 IN conduit opening, all conduit openings have NPT threads; O-ring gasket provided between the mounting box and receptacle cover; Internal switch provides safe and quick disconnect means, no need for separate disconnect switch; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Stainless steel captive cover bolts, mounting feet and hinges; Supplied with (2) 1-1/2 - 1-1/4 IN reducing bushings |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784 |
| UPC | 781381632737 |
| GTIN | 00781381632737 |
| Item Type | JBR Series Switched Receptacle With Mounting Box |
| Voltage Rating | 600 VAC At 50 - 400 HZ |
| Wire Size | 10 - 4 AWG Copper-Aluminum |
