Bussmann

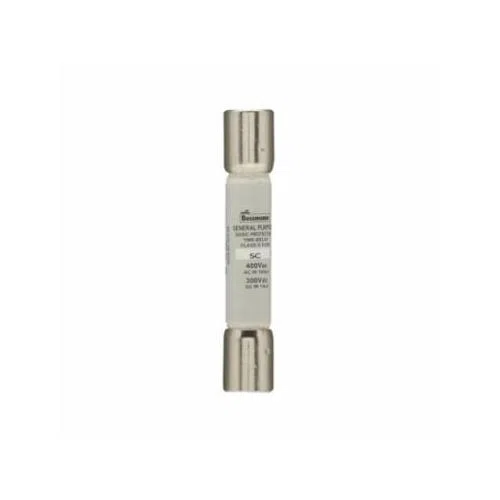

SC-60 Current Limiting Time Delay Fuse, 60 A, 480 V AC/300 V DC, 100/10 kAIC Interrupt, G Class, Cartridge Body

MFR:
Eaton
MFR #:
SC-60
UPC:
051712250603
Item #:
58426

Availability

Location Available Qty
Available 7 ea
$118.77 each

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Manuals and Documentation

Features

  • Most economical overcurrent protection solution compared to circuit breakers
  • For use in various non-demanding, general purpose applications
  • Compact branch circuit units with high interrupt rating and current limitation
  • Size rejection by length helps prevent over fusing
  • Fuses 7 A and above have a degree of overload time delay that permits them to pass temporary overloads
  • 100 kA at 480 VAC, 10 kA at 300 VDC interrupt rating
Manufacturer Part Number SC-60
Brand Bussmann
Manufacturer Eaton
UPC 051712250603
Country Of Origin MX
Amperage Rating 60 A
Material Melamine
Mounting Type Holder
Series SC Series
Type Current Limiting Time Delay
Voltage Rating 480 V AC/300 V DC
Alternative Part Number 7608349
Manufacturer Item Status Active
Country USA
Standards Approvals CE Marked,RoHS Compliant
Application Industrial Facilities and Factories, Safety and Security Systems, Fusible Branch Panel Boards, HV Branch Circuit Protection and General Purpose Applications
Body Size 0.41 in Dia x 2.25 in L
Body Type Cartridge
Class G
Indicating Non Indicating Non-Indicating
Interrupt Rating 100/10 kAIC
Rejection Non Rejection Rejection
Response Time 12 s at 200%
Terminal Type Ferrule End
