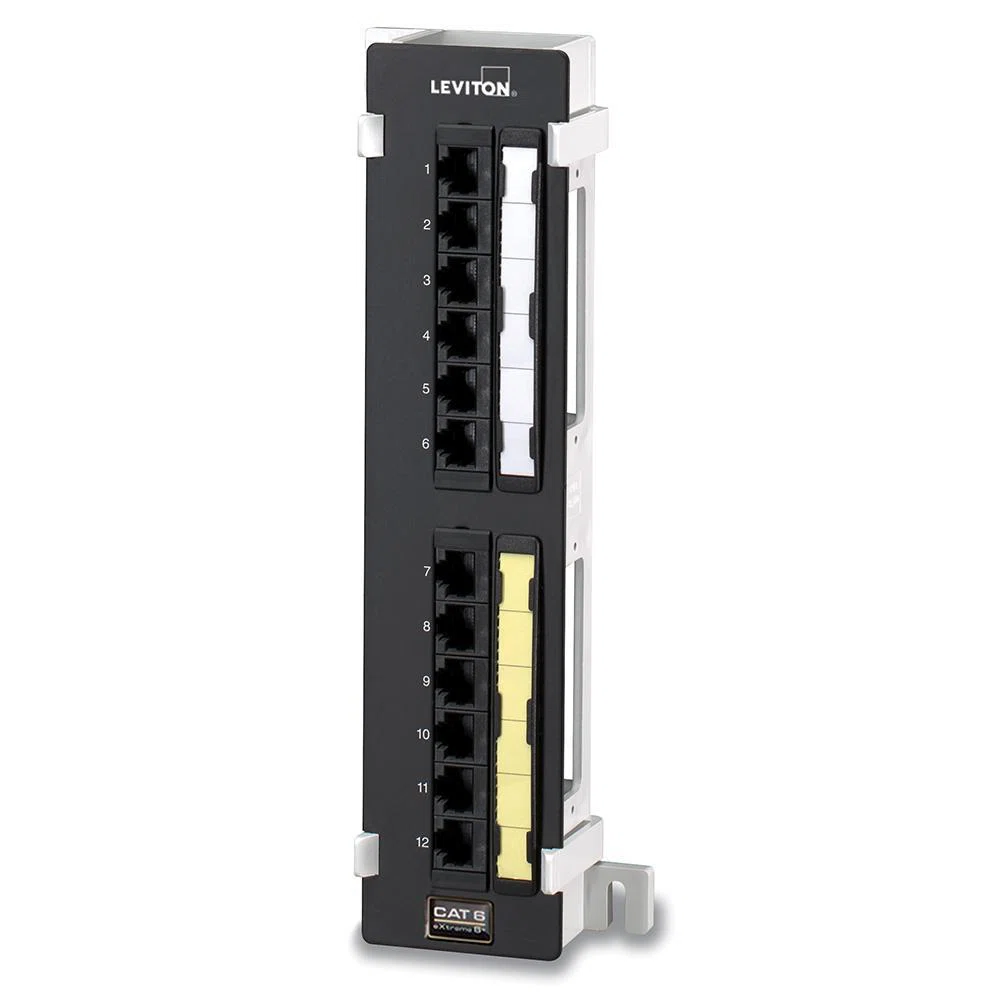

69586-U89 eXtreme 110-Style Universal Patch Panel, 12 Ports, CAT 6, 26 to 22 AWG Terminal, Plastic/Steel
- MFR:
- Leviton
- MFR #:
- 69586-U89
- UPC:
- 078477131428
- Item #:
- 58257
69586-U89 eXtreme 110-Style Universal Patch Panel, 12 Ports, CAT 6, 26 to 22 AWG Terminal, Plastic/Steel
- MFR #:
- 69586-U89
- UPC:
- 078477131428
- Item #:
- 58257
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$413.09
each
Leviton® eXtreme® 6 patch panels are designed for use on 19 in standard racks and cabinets. The patch panels include Leviton® patent pending retention force technology which promotes consistent performance over the life of the system. Installer friendly design allows for quick installation due to standard 110 terminations ON the rear of the panel which follows the normal installation color sequence (blue orange, Green, brown) from left to right. Leviton® eXtreme® 6 system is designed for use in high megabit applications such as Gigabit Ethernet.
Manuals and Documentation
Features
- Patented retention force technology protects tines from damage and increases system longevity
- Craft friendly installation
- Universal T568A and T568B wiring cards for 110 style IDC terminations
- Color coded front labeling for easy port identification
- Terminates 26 to 22 ga solid conductor
- Centralized labeling promotes greater visibility of labels when patch cords are routed into horizontal cable management above and below the patch panel
- Capable of multiple re-termination
- Mounts on 19 in equipment racks
- Panel offered in 12, 24, 48, 96-port configurations and 12-ports U89 block for wall mount applications
- Connector modules are in groups of six
- Use star washers for grounding in rack mount installations
| Manufacturer Part Number | 69586-U89 |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477131428 |
| Country Of Origin | US |
| Category Type | CAT 6 |
| Color | Black |
| Material | Plastic/Steel |
| Mounting Type | Wall |
| Type | 110-Style Universal |
| Alternative Part Number | 7350056 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | ANSI/TIA-568-C.2/TIA-1096-A | ISO/IEC 11801 | cULus Listed |
| Application | For 19 in rack and cabinet electronic equipment |
| Includes | Rear Cable Management Bar |
| Number Of Ports | 12 |
| Terminal Size | 26 to 22 AWG |
| Terminal Type | 110-IDC |
| Wiring Code | T568A/T568B |
