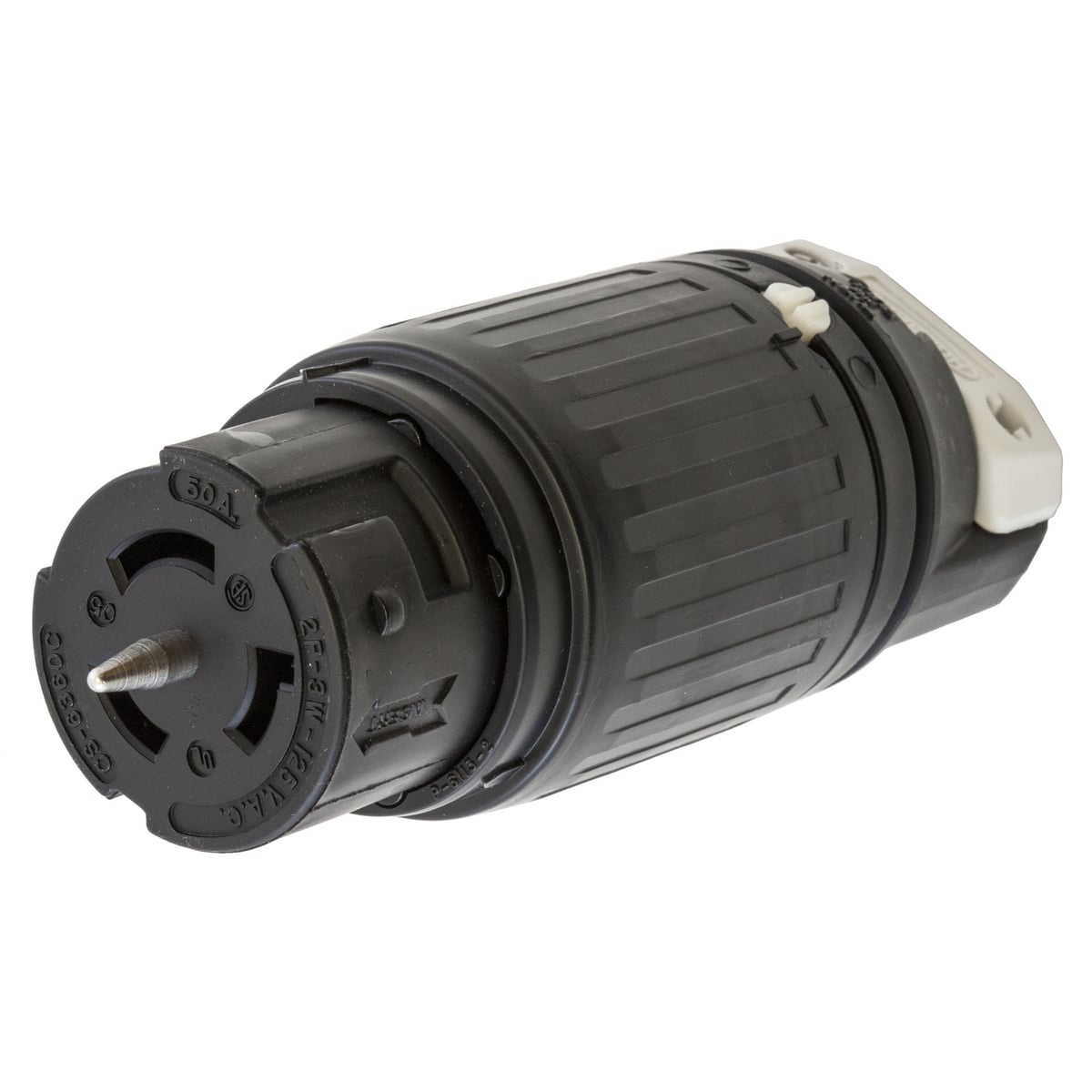

CS6360C 1-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 125 V AC, 50 A, 2 Poles, 3 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- CS6360C
- UPC:
- 783585827933
- Item #:
- 58191
CS6360C 1-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 125 V AC, 50 A, 2 Poles, 3 Wires, Black/White
- MFR #:
- CS6360C
- UPC:
- 783585827933
- Item #:
- 58191
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$216.78
each
Hubbells 50 Amp Twist-Lock Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grips offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
Manuals and Documentation
| Catalog Number | CS6360C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 50 |
| Application | Heavy Duty Industrial |
| Color | Black; White |
| Conductor Range | #6AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Cord |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| UPC | 783585827933 |
| GTIN | 00783585827933 |
| Item Type | Connector Body |
| Size | 6.50 in x 2.56 in x 2.50 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
