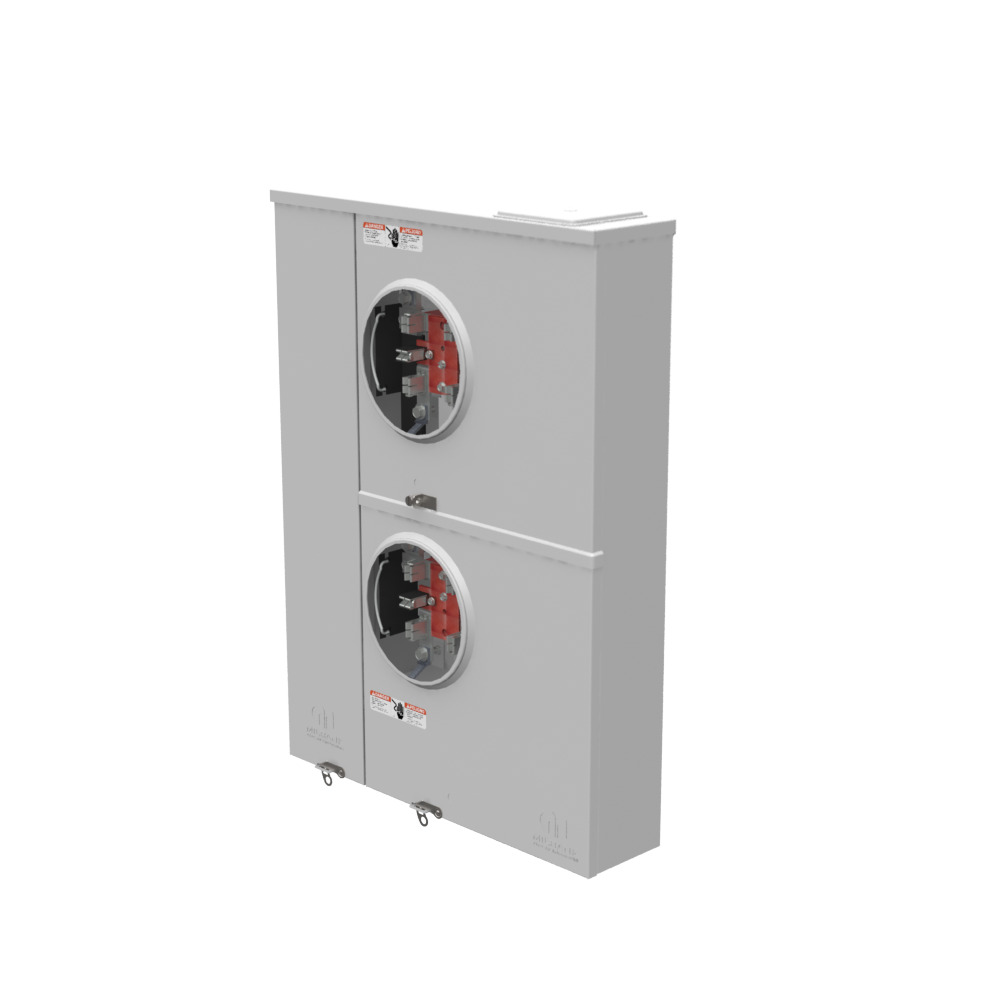

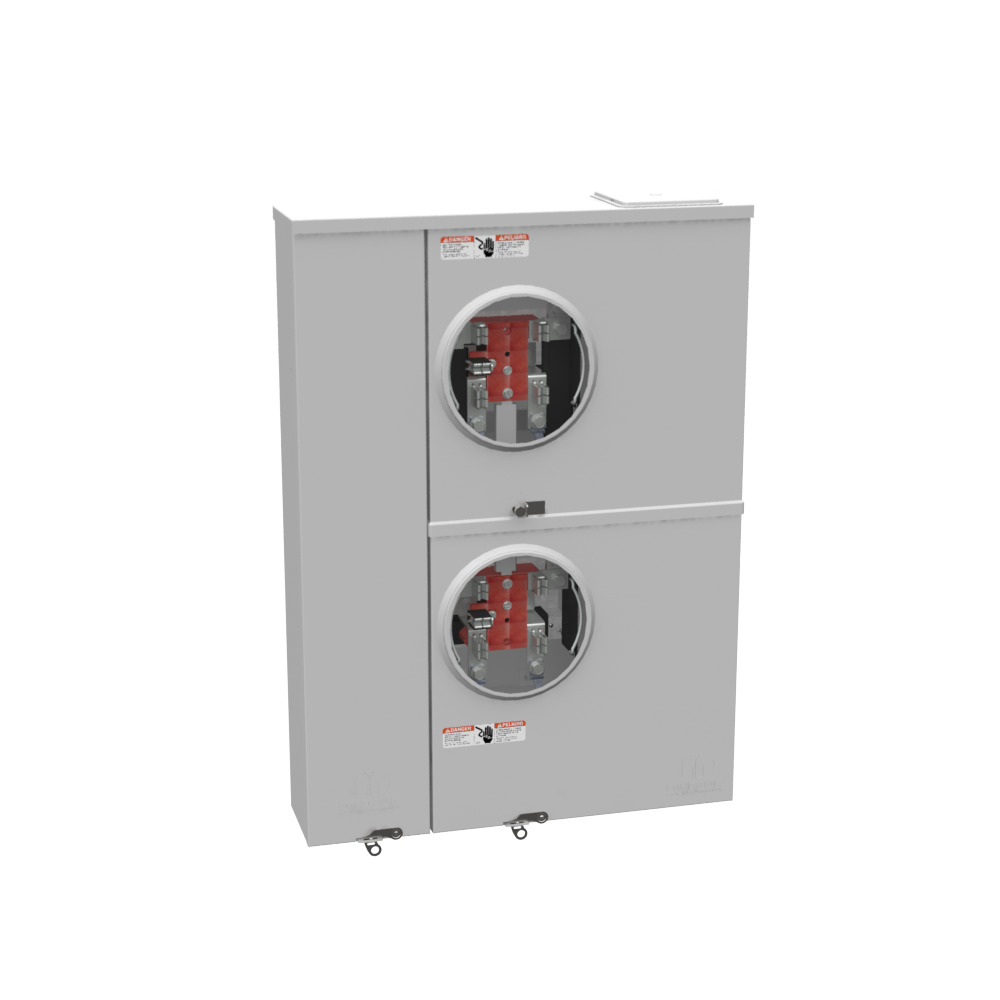

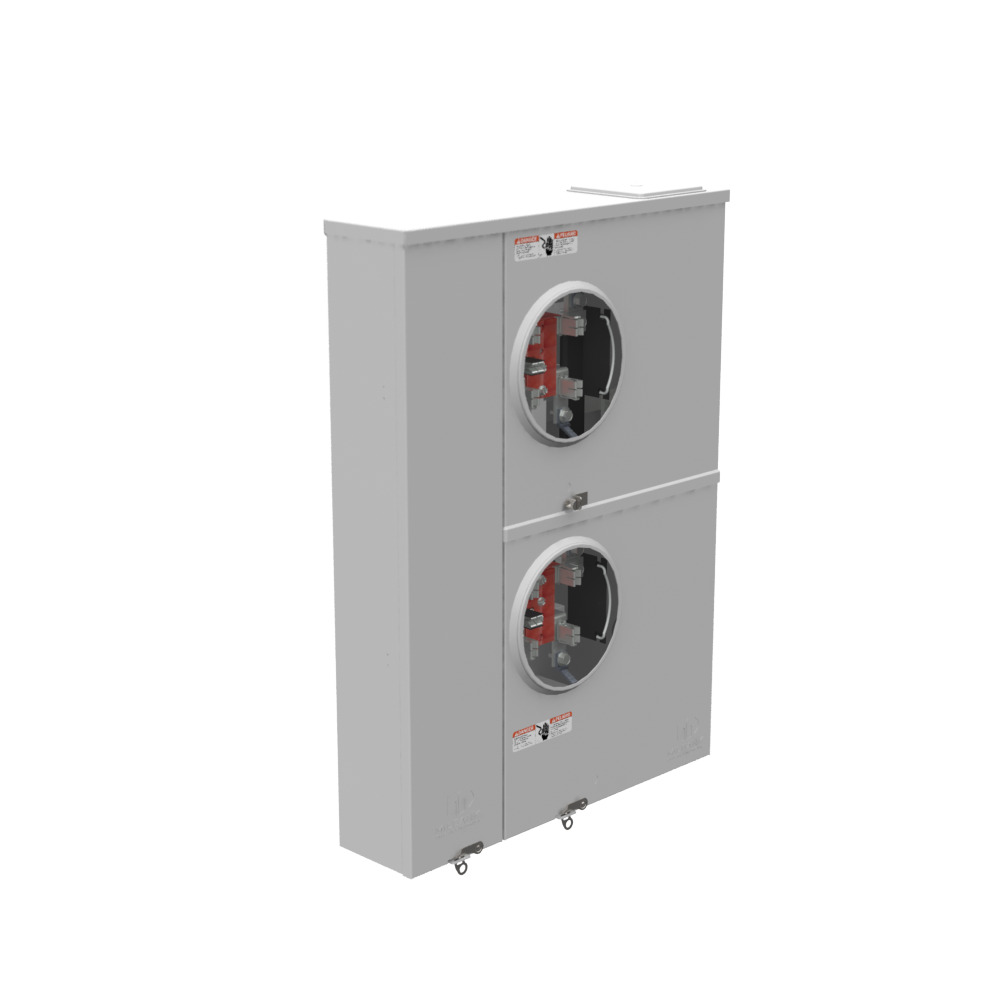

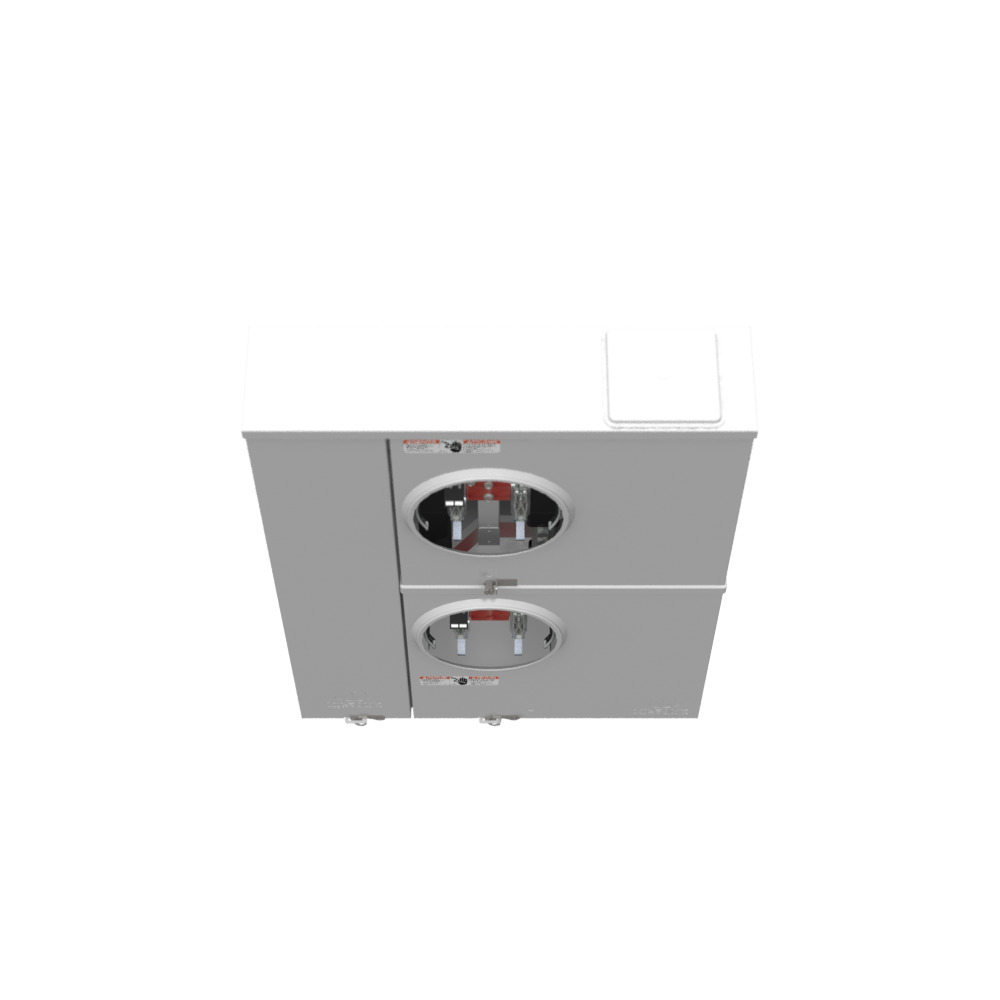

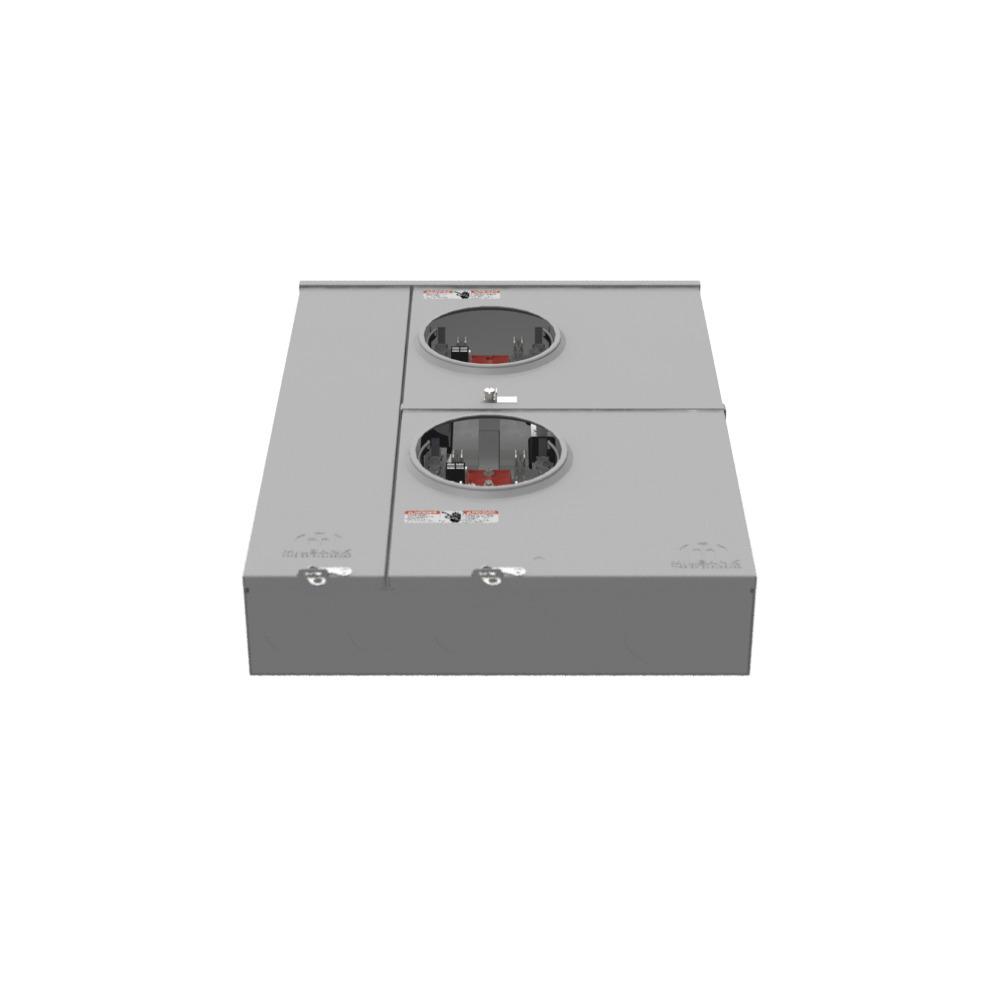

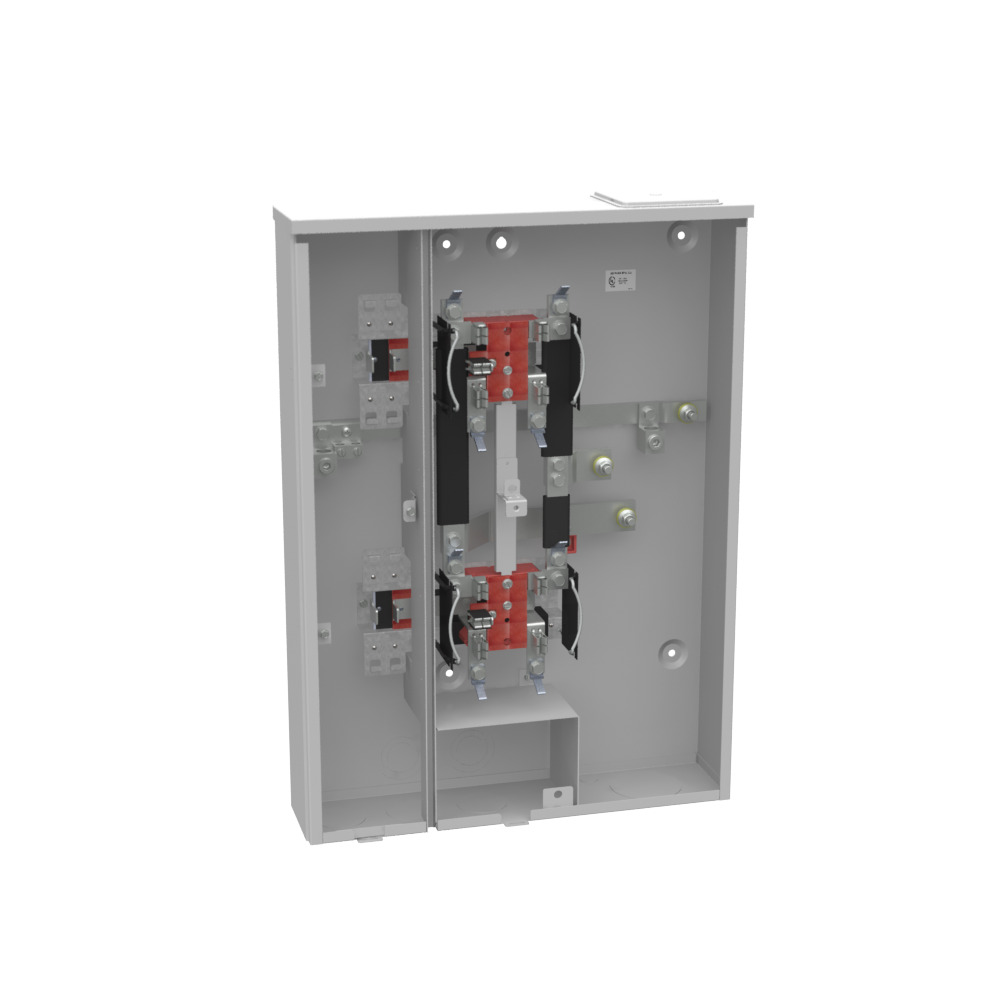

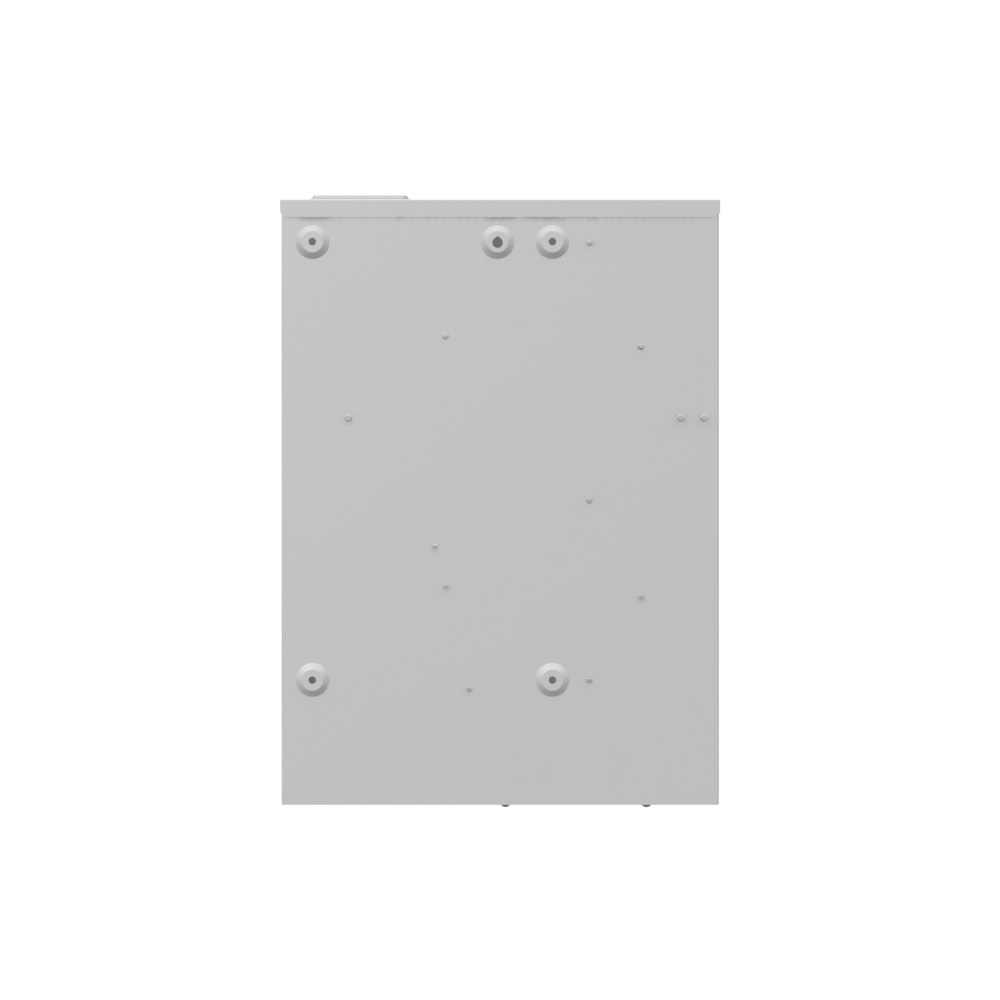

U2862-X-KK-5T 5 Term, Ringless, Large Closing Plate, Horn Bypass, 2 Position, 2-200 Amp, Main Breaker Provision, Vertical
- MFR:
- Milbank
- MFR #:
- U2862-X-KK-5T
- UPC:
- 784572228351
- Item #:
- 581890
U2862-X-KK-5T 5 Term, Ringless, Large Closing Plate, Horn Bypass, 2 Position, 2-200 Amp, Main Breaker Provision, Vertical
- MFR #:
- U2862-X-KK-5T
- UPC:
- 784572228351
- Item #:
- 581890
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,536.30
each
5 TERM RNGLS LRG CLS PLT HRN BYPS 2 POS 2-200 AMP MN BRKR PROV VERTICAL
| Catalog Number | U2862-X-KK-5T |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 5 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572228351 |
| GTIN | 00784572228351 |
| Item Type | Ringless Meter Socket |
| Length | 4.844 |
| Length UOM | Inch |
| Width | 21 |
| Width UOM | Inch |
| Height | 29 |
| Height UOM | Inch |
| Size | 4.844L x 21W x 29H |
| Terminals | 3/8 Inch Stud |
| Voltage Rating | Up to 240 Volts Alternating Current |
