Square D

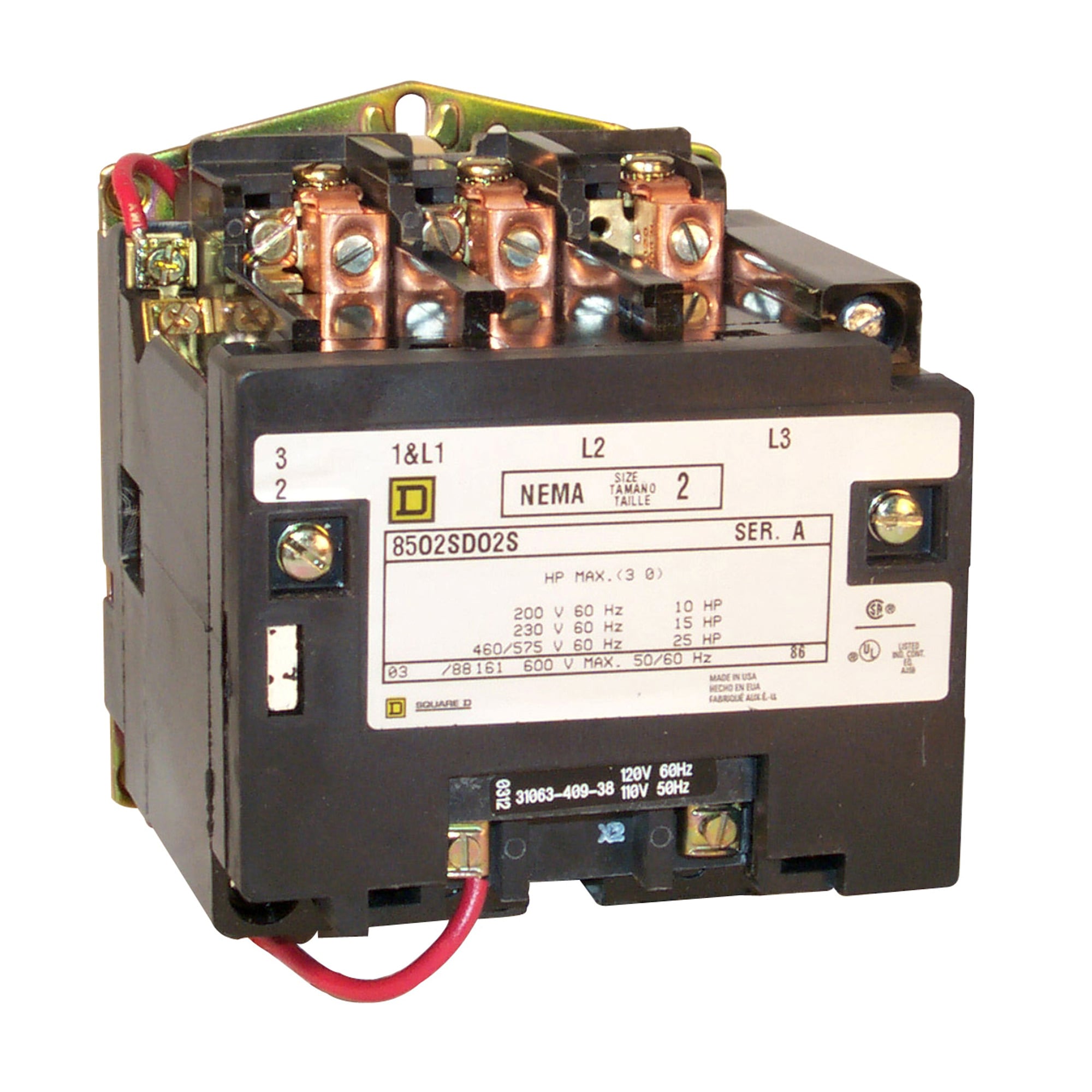

8502SDO3V02S Non-Reversing Type S Contactor, 110 V AC at 50 Hz to 120 V AC at 60 Hz V Coil, 4 Poles

MFR:
Schneider Electric
MFR #:
8502SDO3V02S
UPC:
785901881629
Item #:
581248

Availability

Location Available Qty
Available Available to Order

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 4 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 5.63 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Manuals and Documentation
Catalog Number 8502SDO3V02S
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901881629
GTIN 00785901881629
