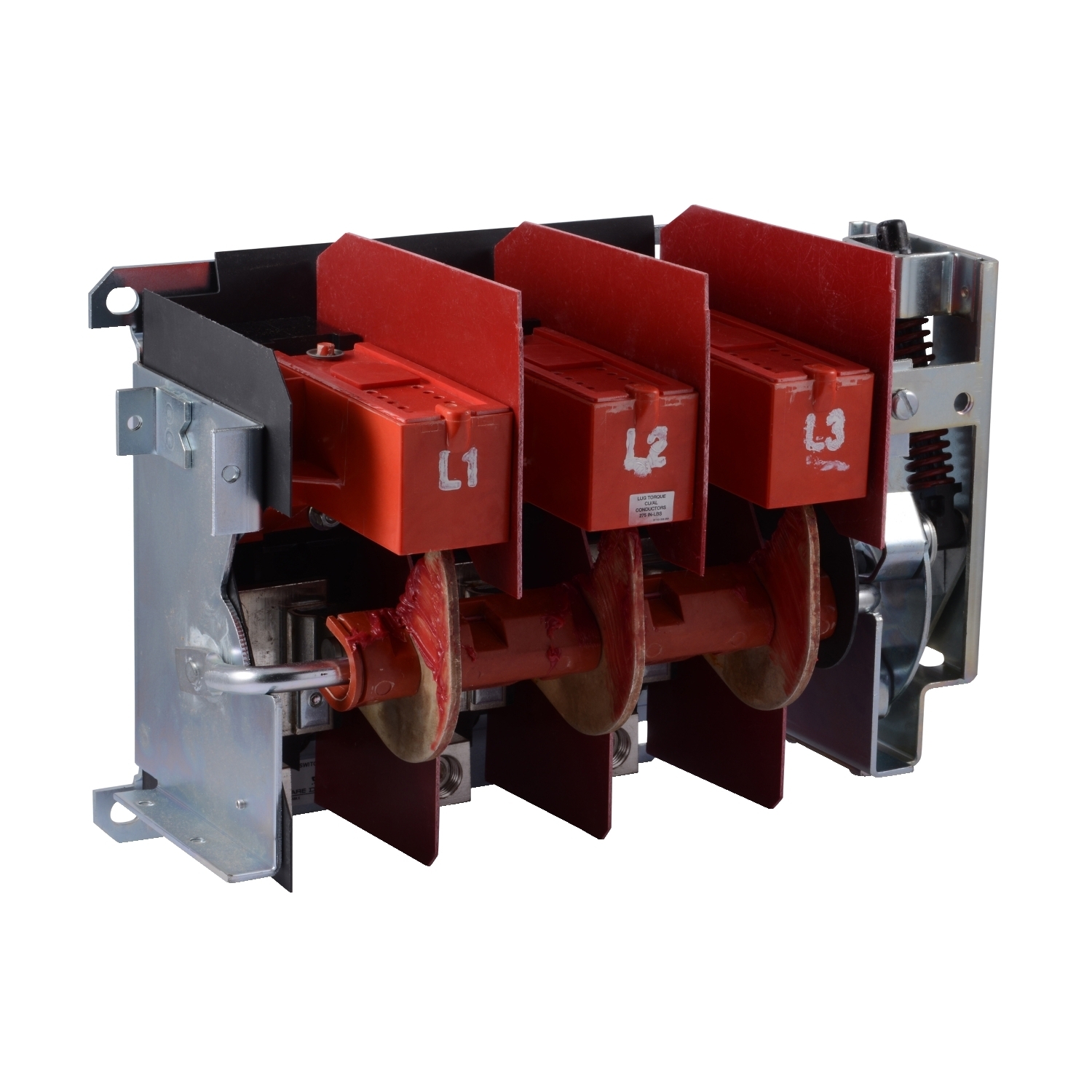

9422ATF11 Fixed/Variable Depth Non-Fusible Rod Operated Disconnect Switch, 600 V AC, 200 A, 40 hp, 60 hp, 125 hp, 150 hp
- MFR:
- Schneider Electric
- MFR #:
- 9422ATF11
- UPC:
- 785901120308
- Item #:
- 58121
9422ATF11 Fixed/Variable Depth Non-Fusible Rod Operated Disconnect Switch, 600 V AC, 200 A, 40 hp, 60 hp, 125 hp, 150 hp
- MFR #:
- 9422ATF11
- UPC:
- 785901120308
- Item #:
- 58121
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 200 A disconnect switch is designed for flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Manuals and Documentation
| Catalog Number | 9422ATF11 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565615&lang=en-us |
| UPC | 785901120308 |
| GTIN | 00785901120308 |
