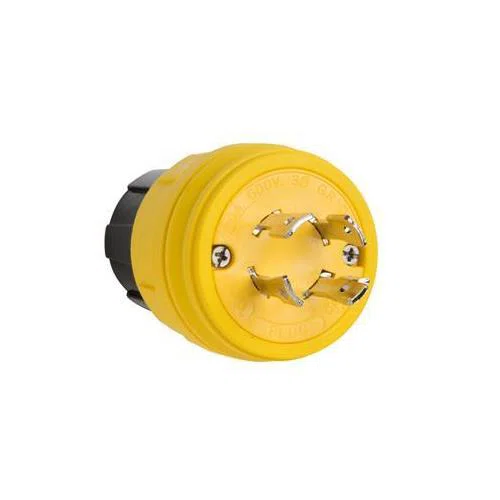

28W77 Turnlok Watertight Locking Plug, 600 V AC, 30 A, 3 Poles, 4 Wires, Yellow
- MFR:
- Legrand
- MFR #:
- 28W77
- UPC:
- 785007033403
- Item #:
- 580961
28W77 Turnlok Watertight Locking Plug, 600 V AC, 30 A, 3 Poles, 4 Wires, Yellow
- MFR #:
- 28W77
- UPC:
- 785007033403
- Item #:
- 580961
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Rated watertight for 1500 psi high pressure hosedown, these plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact and chemical-resistant, they have nickel plated blades and contacts for superior corrosion resistance. And thanks to quick drive assembly screws and backed out, ready to wire terminal screws, these Pass & Seymour® watertight plugs and connectors offer a fast and easy installation saving time and money in any application.
Manuals and Documentation
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather
- Nickel-Plated blades and contacts for long lasting, superior corrosion resistance
- Multipoint sealing system provides environmental protection
- Devices resist high-pressure hose down of 1,500 psi
- Color coded sealing bushings provided for large range of cord diameters
- Large ribs on body for a superior grip when mating
| Manufacturer Part Number | 28W77 |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| UPC | 785007033403 |
| Country Of Origin | US |
| Amperage Rating | 30 A |
| Color | Yellow |
| Dimensions | 2.5 in Dia x 3.11 in L |
| Enclosure | NEMA 4/4X/12/6/6P/IP67 |
| Material | Rubber |
| Series | 28 Series |
| Temperature Rating | -40 to 60 deg C |
| Type | Watertight |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 12972679 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 Year |
| Standards Approvals | ANSI Specified | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 42 | ECCN EAR99 | NEMA WD-1/WD-6 Rated | UL 498 |
| Application | Food and Beverage, Pulp and Paper Mills, Mines, Refrigeration, Petrochemical, Water/Waste Water, Shipbuilding and Temporary Power Applications |
| Cord Diameter | 0.64 to 0.93 in |
| Nema Rating | NEMA L17-30P |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Screw |
