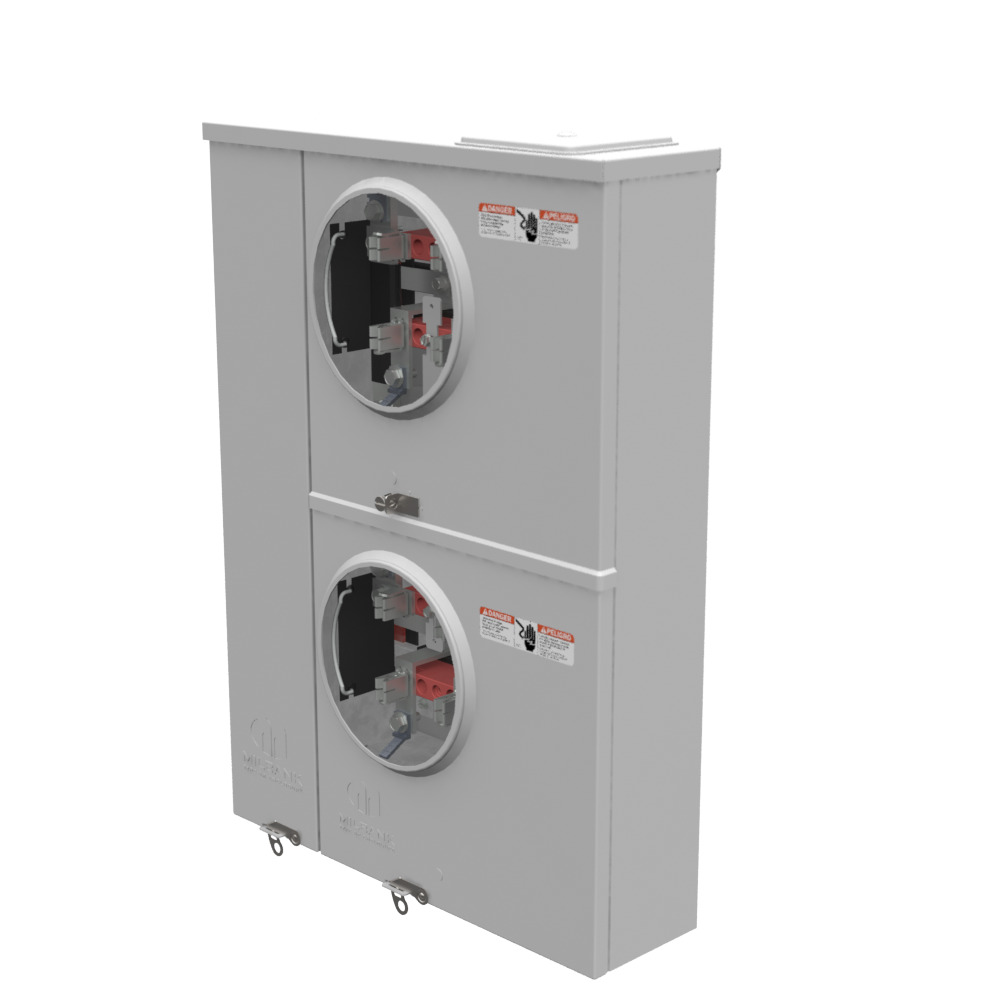

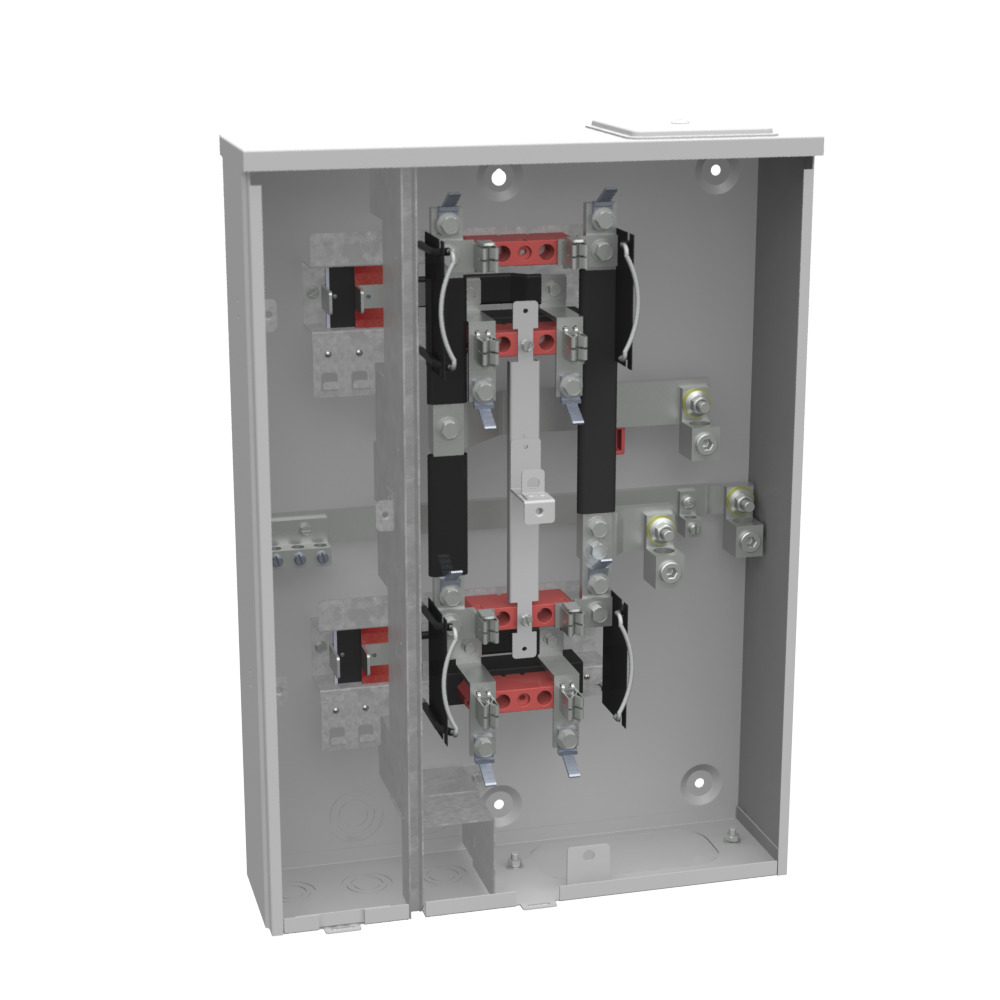

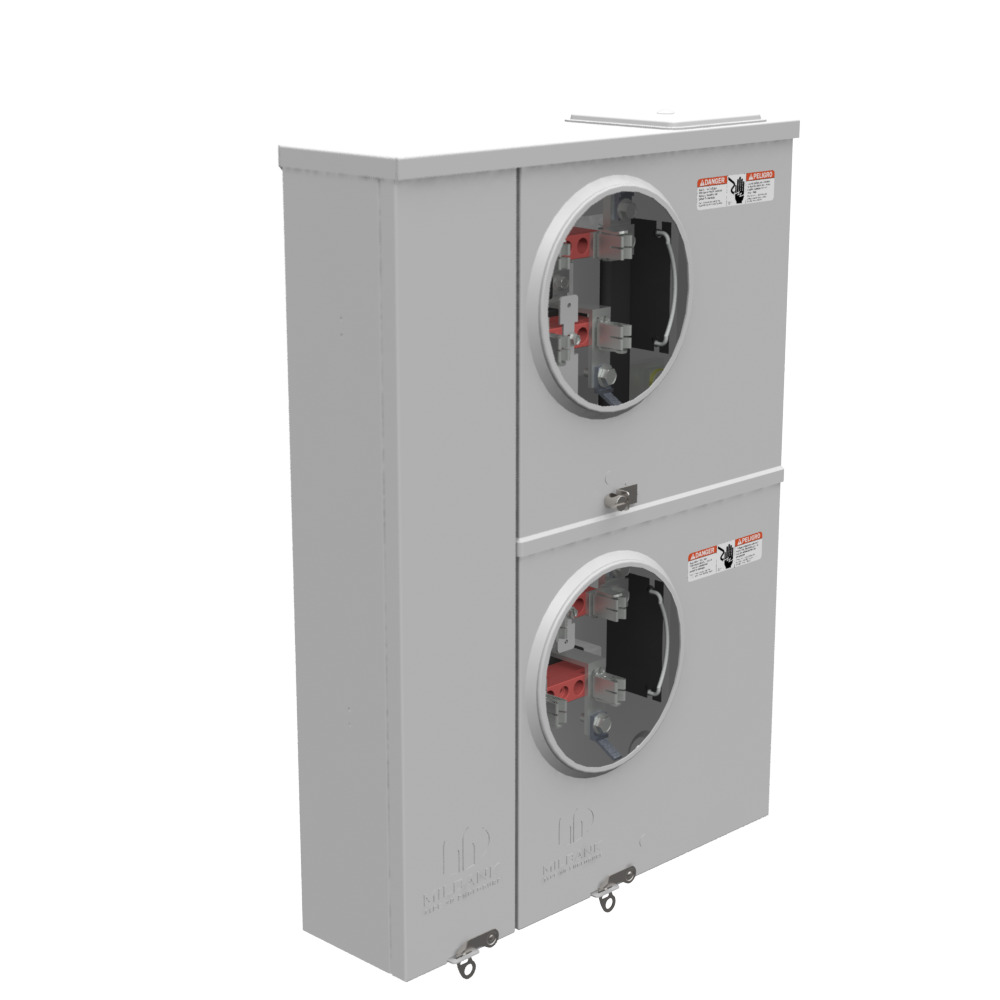

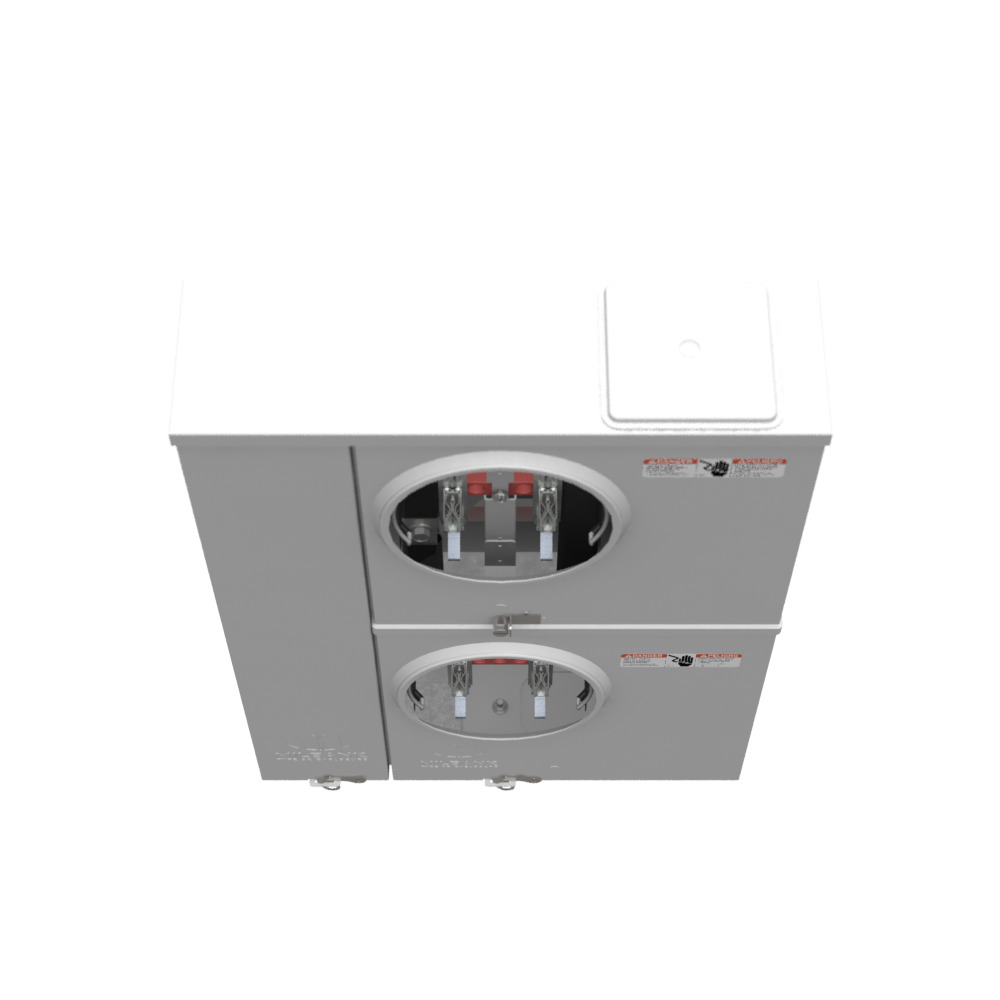

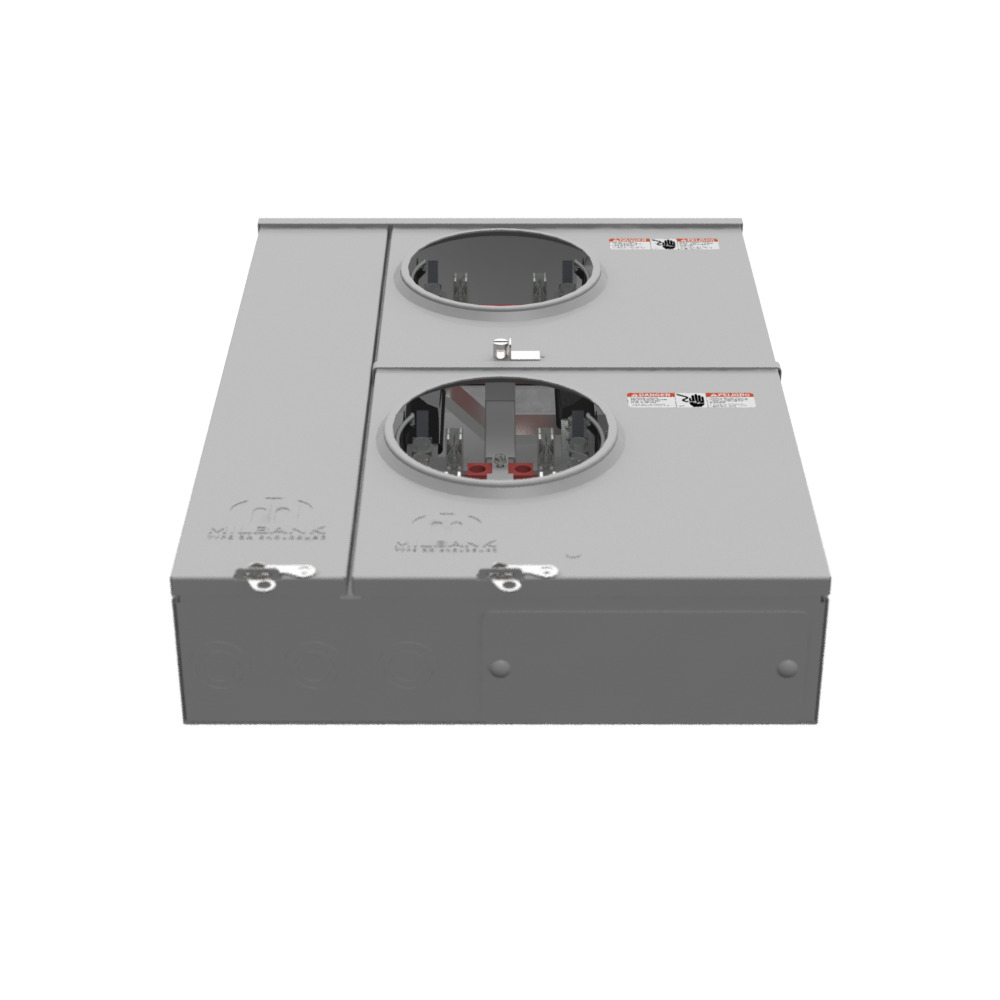

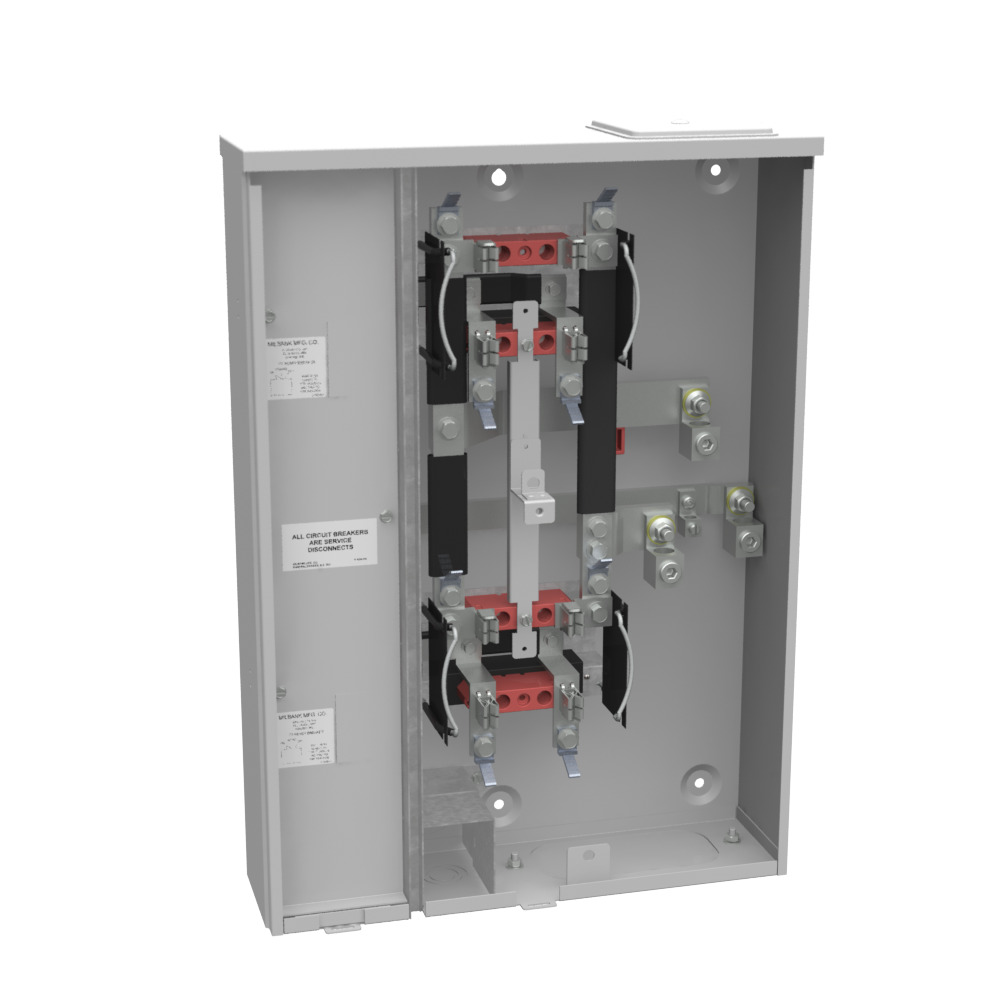

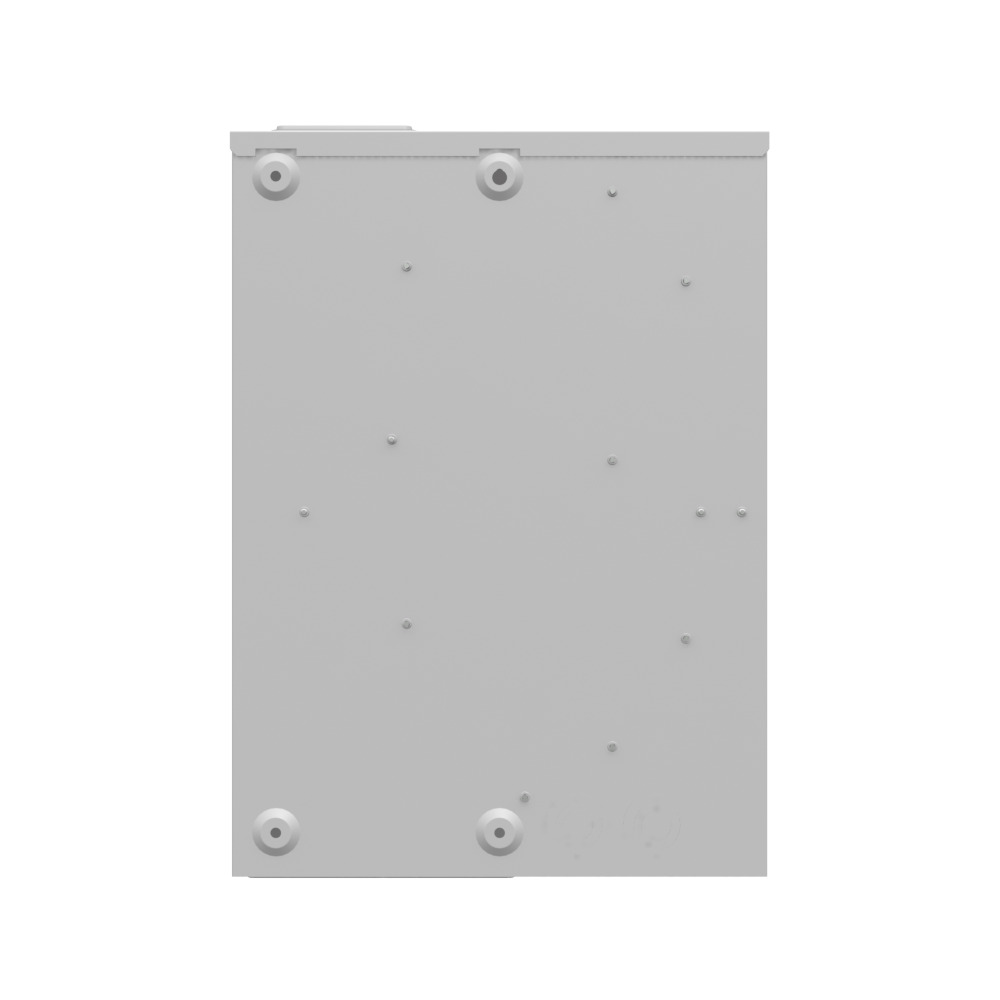

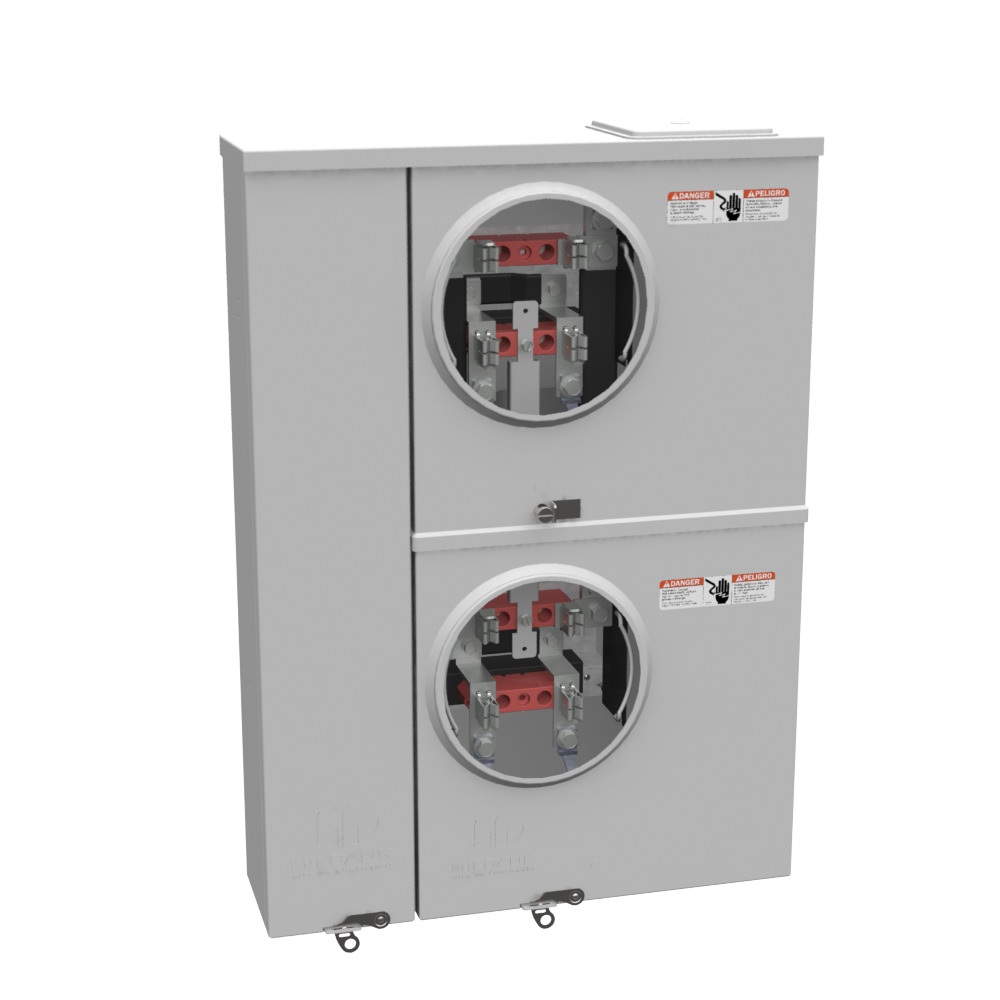

U2852-X-KK-K1-PED-CECHA Meter Socket with Main Breaker, 125 Amp, 1 Phase, Ringless, Horn, 4 Term, 2 Position, OH, UG, 240V
- MFR:
- Milbank
- MFR #:
- U2852-X-KK-K1-PED-CECHA
- UPC:
- 784572726543
- Item #:
- 579808
U2852-X-KK-K1-PED-CECHA Meter Socket with Main Breaker, 125 Amp, 1 Phase, Ringless, Horn, 4 Term, 2 Position, OH, UG, 240V
- MFR #:
- U2852-X-KK-K1-PED-CECHA
- UPC:
- 784572726543
- Item #:
- 579808
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$975.61
each
4 TERM RNGLS LRG CLS PLT HRN BYPS 2 POS 2-125 AMP MN BRKR PROV SGL CONN 6-350kcmil PED MNT PROV VERTICAL COMMONWEALTH EDISON CHICAGO HOUSING AUTHORITY
Manuals and Documentation
| Catalog Number | U2852-X-KK-K1-PED-CECHA |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 125 |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Commonwealth Edison Chicago Housing Authority |
| Standard | UL Listed;Type 3R |
| UPC | 784572726543 |
| GTIN | 00784572726543 |
| Item Type | Ringless Meter Socket |
| Length | 4.844 |
| Length UOM | Inch |
| Width | 18 |
| Width UOM | Inch |
| Height | 25 |
| Height UOM | Inch |
| Size | 4.844L x 18W x 25H |
| Terminals | Single Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
