Mersen

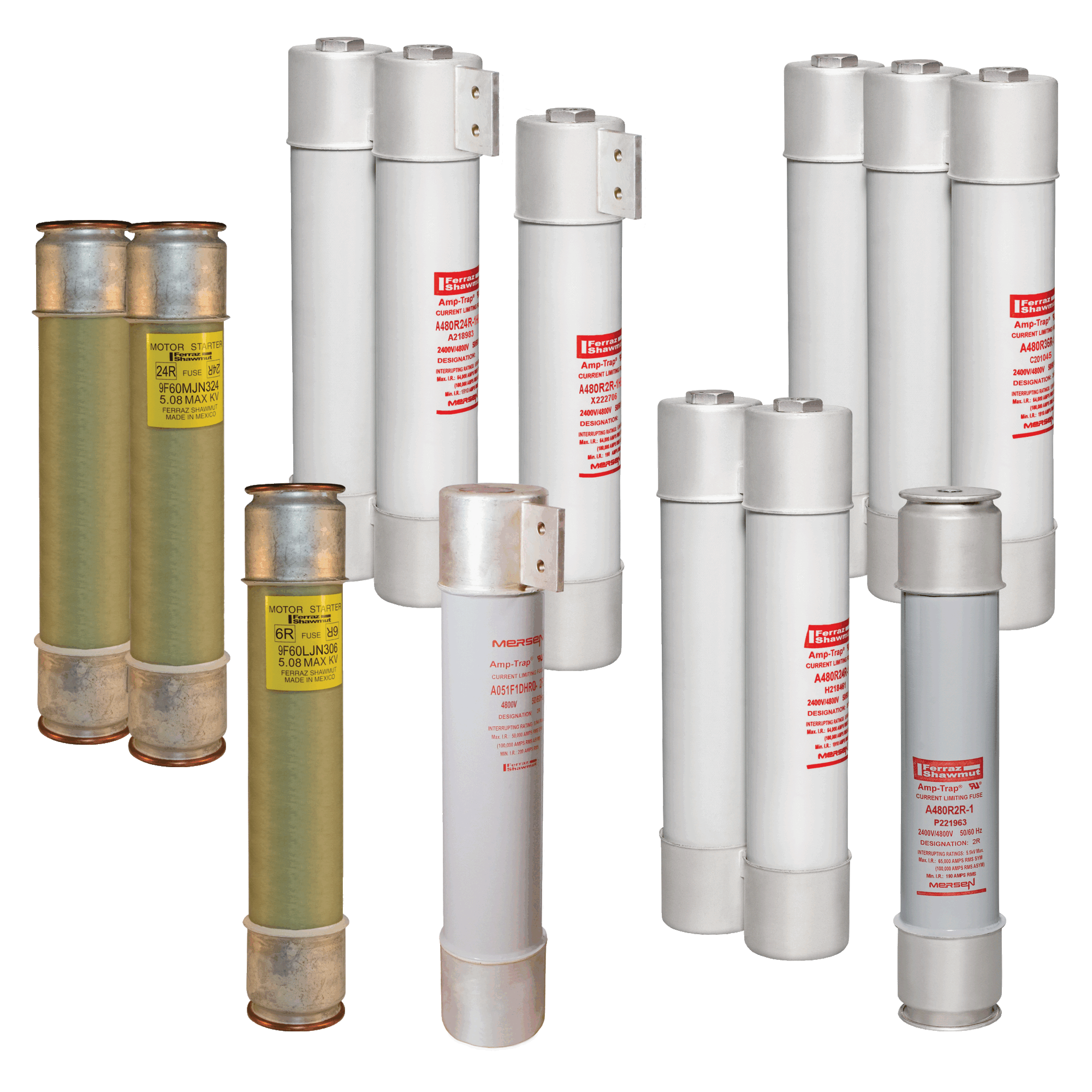

9F60NLD836 Type EJ2 2-Barrel Back Up Medium Voltage Motor Protection Fuse, 36 A, 5.08 kV AC, 50 kA, Class R, Ferrule Body

MFR:
Mersen
MFR #:
9F60NLD836
UPC:
782001396367
Item #:
579456

Availability

Location Available Qty
Available Available to Order

Back-Up R-Rated Medium Voltage Fuse 5080VAC 36R Mounting: Ferrule Style: NLD Visual Indicator Amp-Trap

Manuals and Documentation
Catalog Number 9F60NLD836
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 36
Application Short circuit protection of medium voltage motors and motor controllers
Connection Ferrule
Interrupt Rating 50 KA
Material clips
Mounting Clip
Response Time R-Rated
Special Features The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Hookeye for non load-break isolation by hookstick: On the 4.8kV an optional hookeye mounted in the factory is available On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612 Blown-fuse indicator to give positive identification of open fuse Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60: 0.125 lb tripped force – 0.20 Inch
Standard Amp-Trap: UL File E93367 9F60: UL File E191980
UPC 782001396367
GTIN 00782001396367
Item Type Back-Up R-Rated Ferrule Mount Fuses for Motor Protection
Size 19.2 x 4
Type of Indicators Visual Indicator
Voltage Rating 5080
