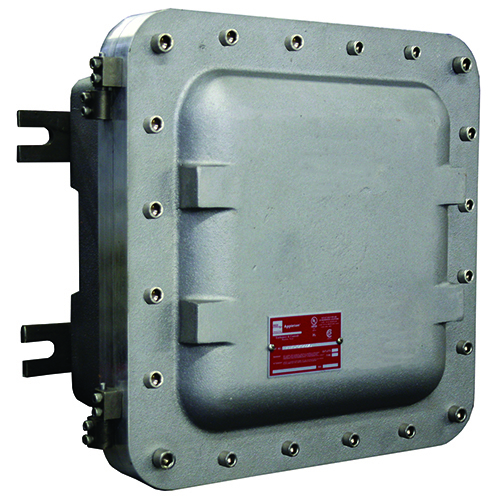

Metallic Junction Box, 14.81 inch Length, 14.81 inch Width, 9.13 Depth, Surface Mount, Copper Free Aluminum

MFR:
Appleton Electric
MFR #:
AJBEW101006
UPC:
781381846363
Item #:
577786

Availability

Location Available Qty
Available Available to Order
$4,848.92 each

Explosionproof Junction Box, Hub Size 2 Inch, Overall Size 14.81 Inch L x 14.81 Inch W x 9.13 Inch D, Inner Size 10.25 Inch L x 10.25 Inch W x 5.75 Inch D, Cover Type Bolt-On, Hinged, Enclosure Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/9EFG, IP66, Body Material Sand Cast Copper-Free Aluminum, Body Finish Shot Blast, Cover Material Sand Cast Copper-Free Aluminum, Cover Finish Shot Blast, Mounting Horizontal/Vertical with Slotted Feet, Approval UL 886, CSA C22.2, Application Hazardous Location, Used On Terminal, Splicing wire, Pull box, Bus box, Includes Stainless Steel Cover Bolt, Neoprene O-Ring, Galvanized Steel Mounting Pan

Catalog Number AJBEW101006
Manufacturer Appleton Electric
Brand Appleton
Country of Origin United States
Made in USA Yes
RoHS Indicator Yes
UPC 781381846363
GTIN 00781381846363
Length 14.0000
Length UOM Inch
Width 16.0000
Width UOM Inch
Height 24.0000
Height UOM Inch
Weight 54.000
Weight UOM Pounds
