Discontinued
Square D

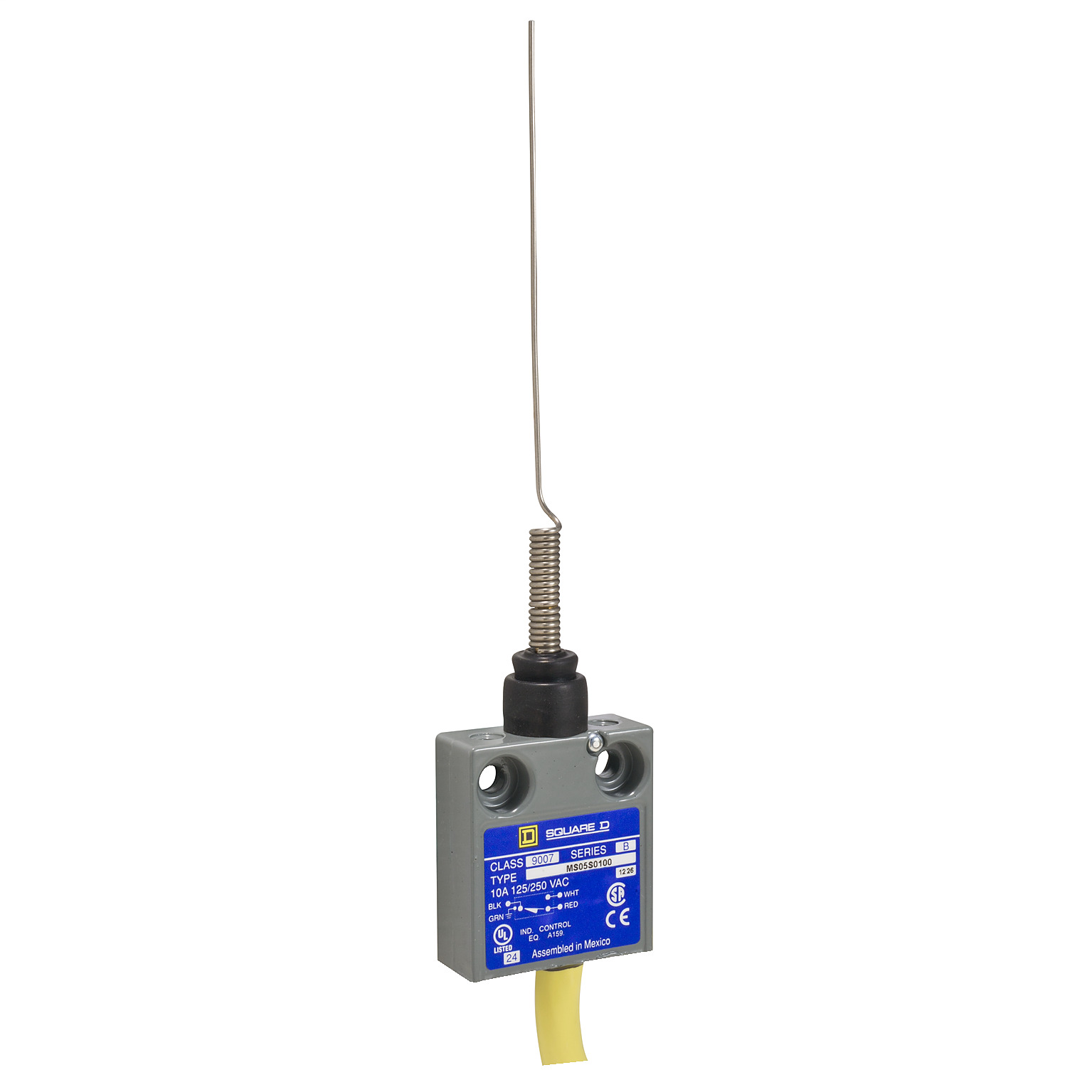

9007MS05G0100 Heavy Duty Miniature Potted Limit Switch, 240 VAC/28 VDC, 10 A, 1CO 1 Form C SPDT Contact, 1 Pole

MFR:
Schneider Electric
MFR #:
9007MS05G0100
UPC:
785901667278
Item #:
576669

Availability

Location Available Qty
Available Available to Order

9007MS limit switch - cat whisker any direction spring rtn. - 3' bottom cable

Manuals and Documentation
Catalog Number 9007MS05G0100
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action BY ANY MOVING PART,MULTI-DIRECTIONAL APPROACH,SNAP ACTION
Actuator SPRING RETURN WIRE WHISKER STEEL -
Amperage Rating 10
Application 9007MS/ML,MINIATURE POTTED,MULTI-DIRECTIONAL HEAD
Connection PRE-WIRED CABLE BOTTOM
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Operating Cycles 100000 CYCLES
Special Features FIXED,METAL
Standard 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,E78403-LR 25490 CLASS 32 11 03,IP54 IEC 60529,UL-CE-CSA
UPC 785901667278
GTIN 00785901667278
Item Type LIMIT SWITCH,MULTI-DIRECTIONAL HEAD
Size 0.62 IN,1.56 IN,1.75-1.75 IN
Operating Temperature -40-220 A Degrees F
Voltage Rating 100 MA 125 V AC-30 MA 28 V DC
