2212018 Standard Duty Lace Closing Split Mesh Double Weave Ring Support Grip, 2040 lb Breaking Strength, 1.5 to 1.74 in Cable, Bronze, TiN Coated
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- 02212018
- UPC:
- 783585306346
- Item #:
- 57626
2212018 Standard Duty Lace Closing Split Mesh Double Weave Ring Support Grip, 2040 lb Breaking Strength, 1.5 to 1.74 in Cable, Bronze, TiN Coated
- MFR #:
- 02212018
- UPC:
- 783585306346
- Item #:
- 57626
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

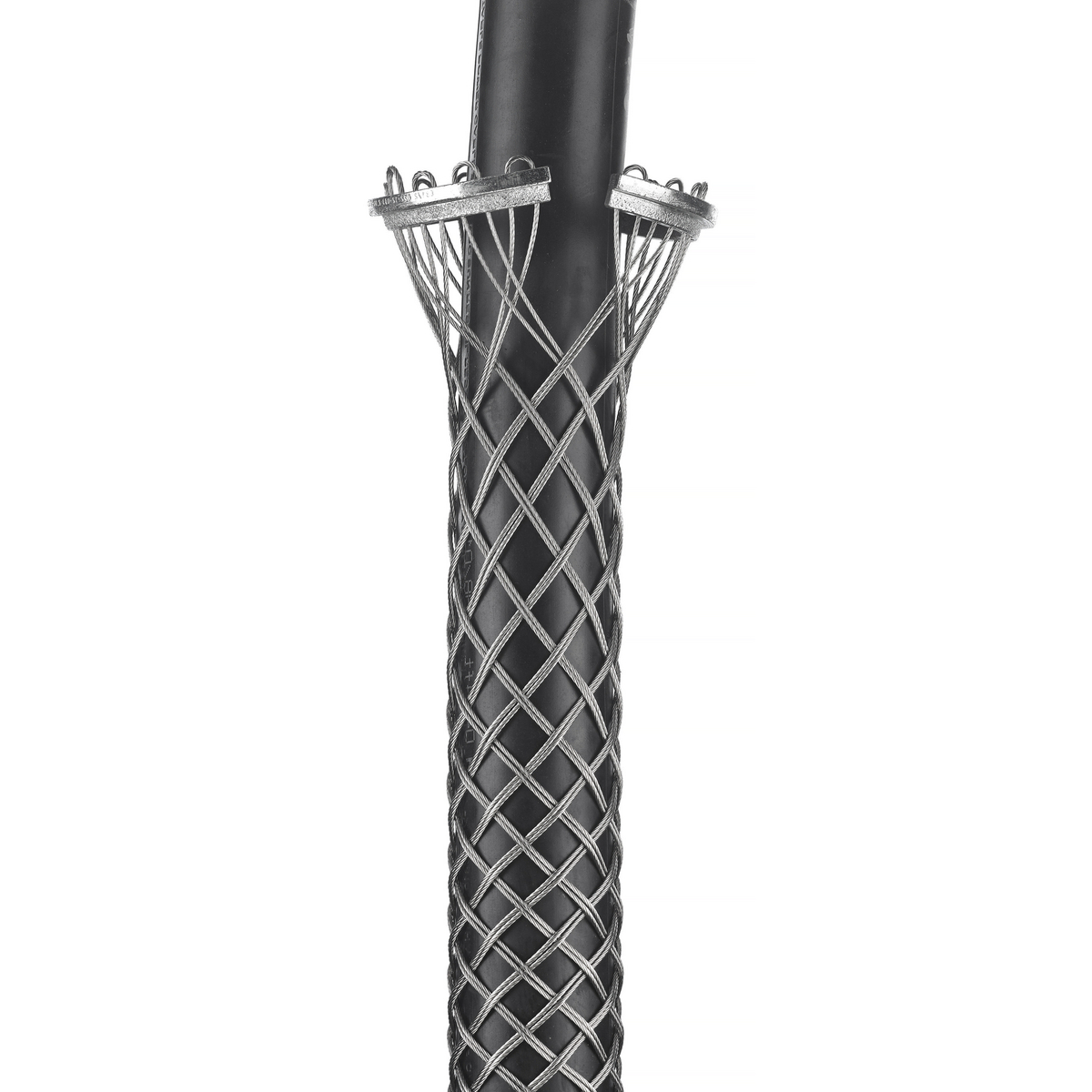

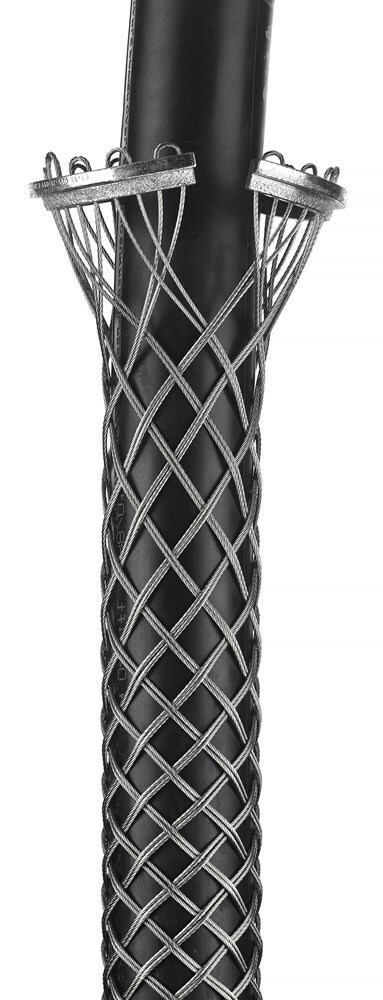

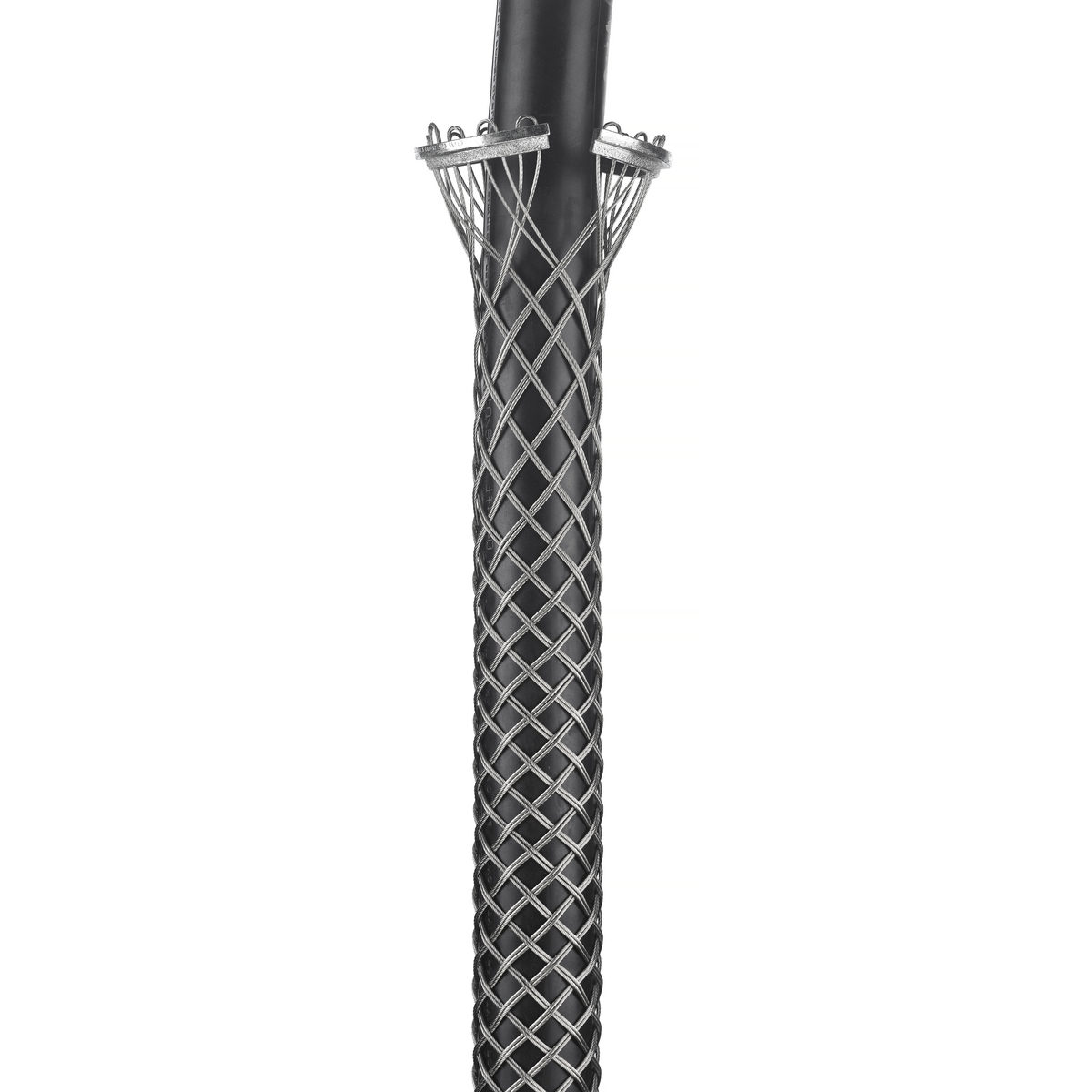

Conduit Riser Grips - Double Weave, Split Mesh, Lace Closing - Kellems Conduit Riser Support Grips will support cable runs in vertical or sloping standard rigid conduit. The grip is fastened to a support ring which seats on the rim of the conduit. The entire grip is supported by the conduit itself and no other hardware is required. The rings will fit schedule 40 rigid PVC conduit and standard electrical rigid metal conduit only. For permanent support when cable end is not available. Recommended safety factor is ten for catalog listed support grips.
Manuals and Documentation
| Catalog Number | 02212018 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Cable Support in Conduit |
| Cable Size | 1.50"-1.74" (3.81-4.42) |
| Color | Metallic |
| Construction | Woven |
| Hub Size | 2 1/2 in NPT |
| Material | Bronze, Tin Coated |
| Mounting | Conduit |
| Special Features | Split Mesh-Lace Closing |
| Standard | CSA Certified |
| UPC | 783585306346 |
| GTIN | 00783585306346 |
| Item Type | Ring Type |
| Size | Standard Sized |
