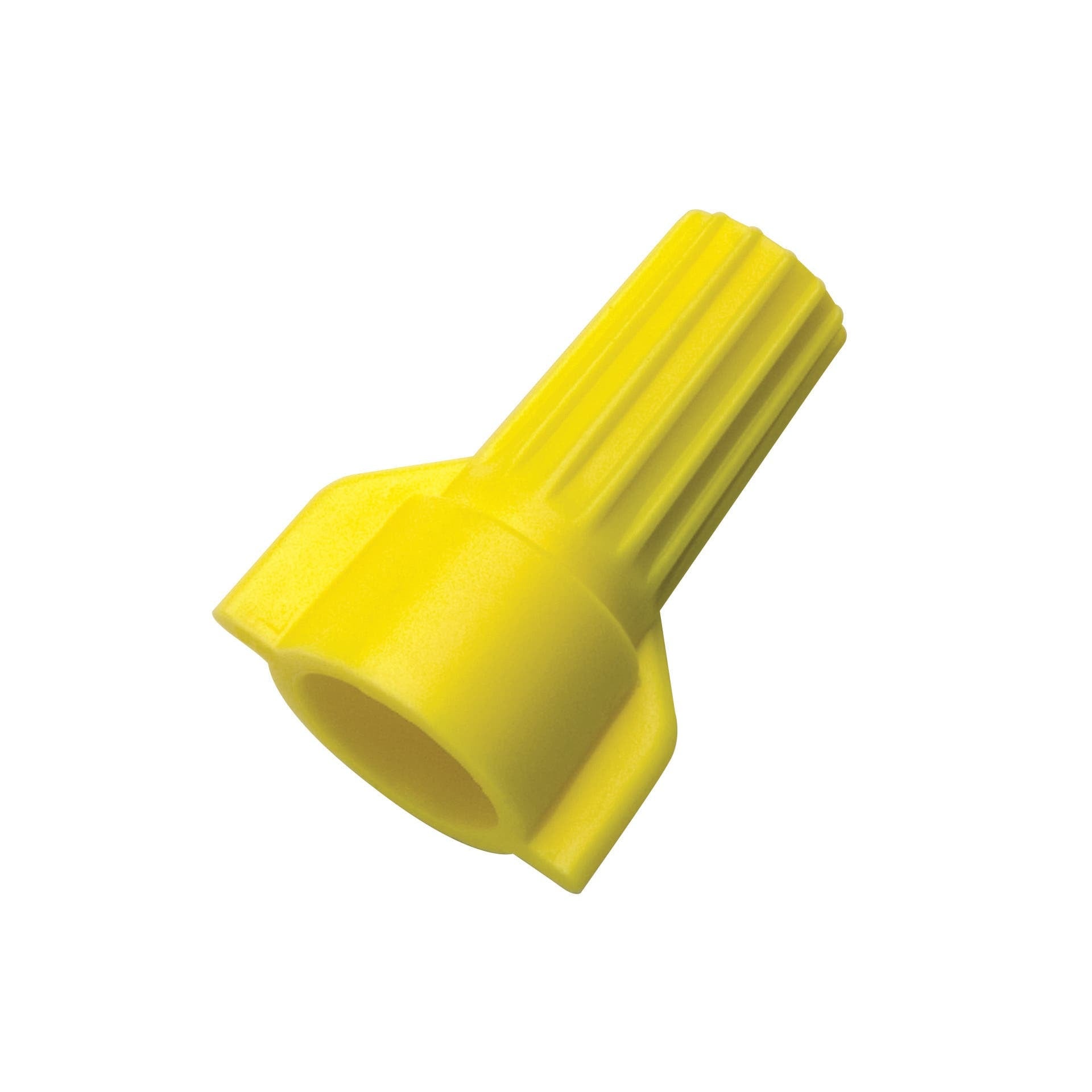

WT51-B WingTwist Wire Connector, Model WT51, Yellow, Bag of 500

MFR:
Ideal Industries
MFR #:
WT51-B
UPC:
781789611013
Item #:
57562

Availability

Location Available Qty
Available 10,500 ea
$0.103 each

With a full line for virtually every wire size and combination, the WingTwist Wire Connector offers a great combination of performance and value.The contoured wing design of the WingTwist provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections.With a tough, flame-retardant shell that withstands environmental extremes, and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, the WingTwist Wire Connector brings comfort and performance at a price that is right.

Manuals and Documentation
Catalog Number WT51-B
Manufacturer Ideal Industries
Brand Buchanan
Country of Origin United States
Made in USA Yes
Application Insulating or Joining 1 or more conductors
Color Yellow
Conductor Range 18 - 10 AWG, 2/18 AWG Min, 3/12 AWG MAX
Material Flame-retardant Polypropelene
Number of Conductors 1 to 6
Special Features Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Green Model Designed For Ground Connections; Unique Contoured Wing Design Acts As Built-In Wrench Providing Maximum Torque With Minimum Effort; Fixed, Square-Wire Spring Threads Itself Creating Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; UL 486C Listed (WGR UL 467 Listed) And CSA C22.2 #188 Certified; 1,000V Maximum In Fixtures And Signs; Model Number: WT51
Standard CSA C22.2 #188, UL 486C Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 781789611013
GTIN 00781789611013
Environmental Conditions Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Voltage Rating 600
