Square D

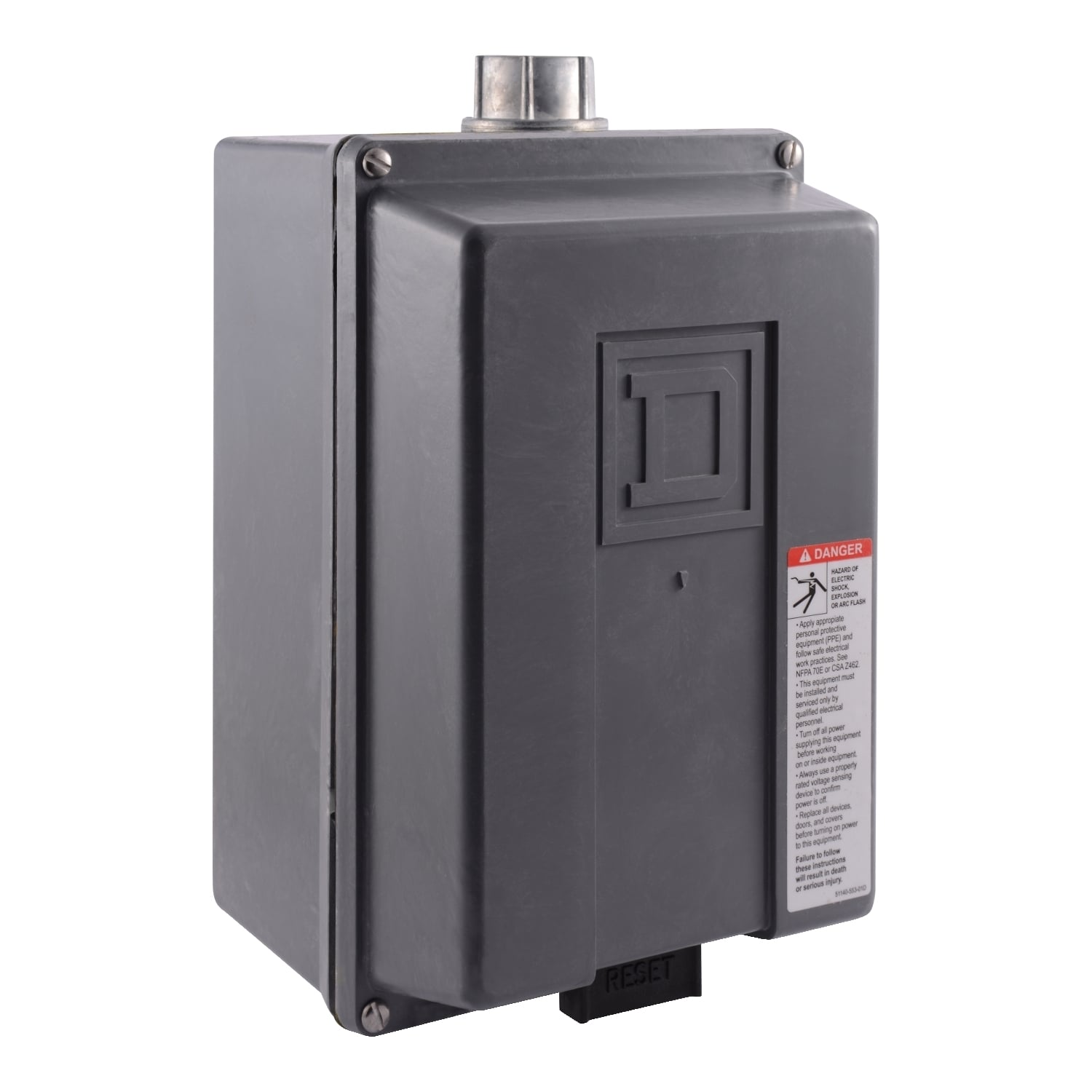

8536SCW23V03 Type S Magnetic Starter, 220 V AC at 50 Hz/240 V AC at 60 Hz V Coil, 3 Poles, NEMA 4/4X Enclosure

MFR:
Schneider Electric
MFR #:
8536SCW23V03
UPC:
785901853909
Item #:
573927

Availability

Location Available Qty
Available Available to Order

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is in a NEMA 4X glass polyester watertight, dusttight and corrosion resistant enclosure. This enclosure is 12.13 inches tall, 6.50 inches wide and 6.44 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Manuals and Documentation
Catalog Number 8536SCW23V03
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901853909
GTIN 00785901853909
