Discontinued
Square D

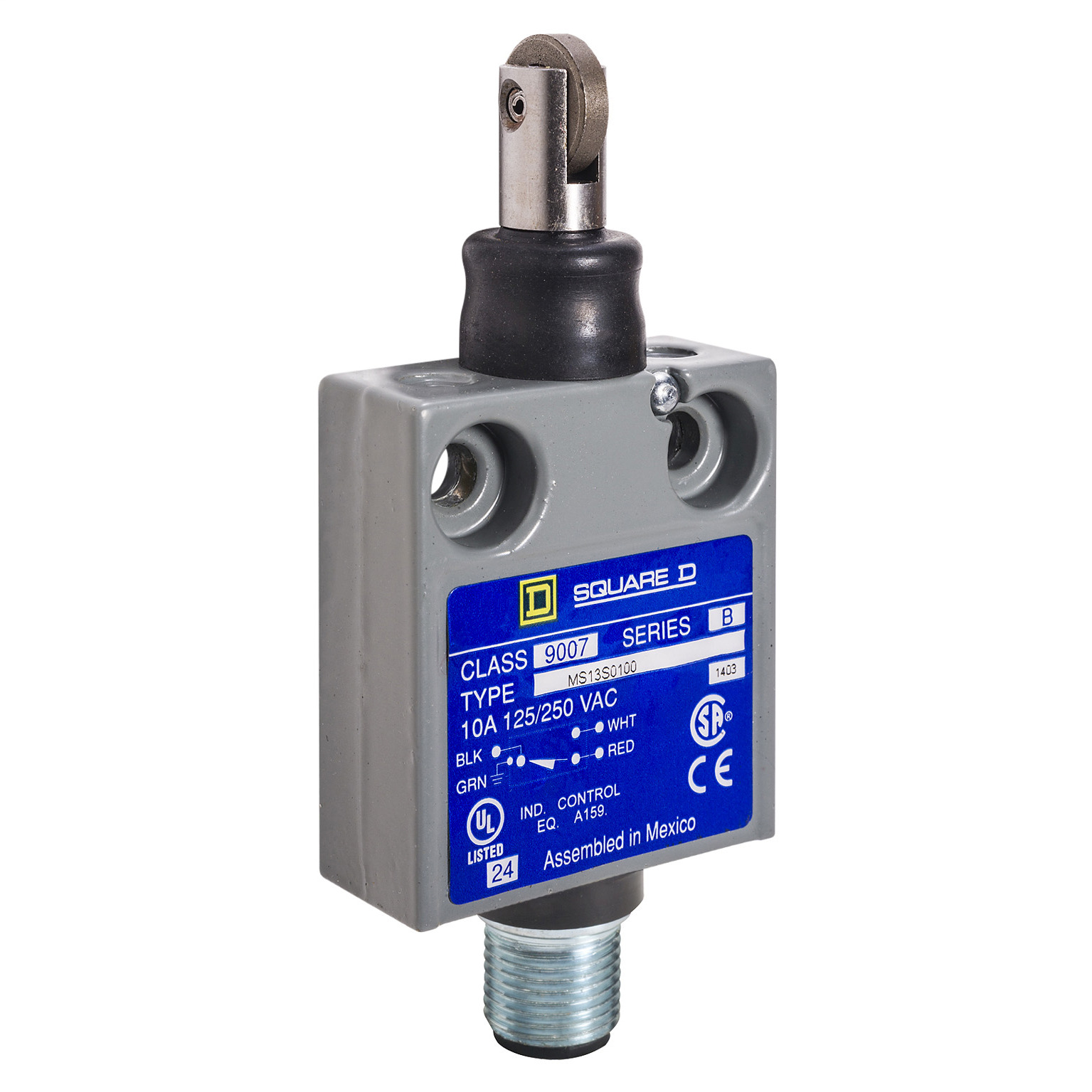

9007MS13S0054 Miniature Potted Limit Switch, 240 VAC/28 VDC, 10 A, 1CO 1 Form C SPDT Contact, 1 Pole

MFR:
Schneider Electric
MFR #:
9007MS13S0054
UPC:
785901600725
Item #:
572286

Availability

Location Available Qty
Available Available to Order

LIMIT SWITCH 240VAC 10AMP MS +OPTIONS

Manuals and Documentation
Catalog Number 9007MS13S0054
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action BY 30A Degrees CAM,SNAP ACTION,TRAVERSE APPROACH, 2 DIRECTIONS
Actuator SPRING RETURN CROSS ROLLER PLUNGER STEEL BOOTED
Amperage Rating 3
Application 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD
Connection MALE CONNECTOR M12 MICRO DC TYPE 4 PINS BOTTOM
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250
Mounting By The Body
Operating Cycles 100000 CYCLES
Special Features FIXED,METAL
Standard 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CE-CSA-UL,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529
UPC 785901600725
GTIN 00785901600725
Item Type LIMIT SWITCH,PLUNGER HEAD
Size 0.62 IN,1.56 IN,1.75-1.75 IN
Operating Temperature -40-220 A Degrees F
Voltage Rating 3 A 28 V DC-3 A 120 V AC-3 A 240 V AC
