Discontinued

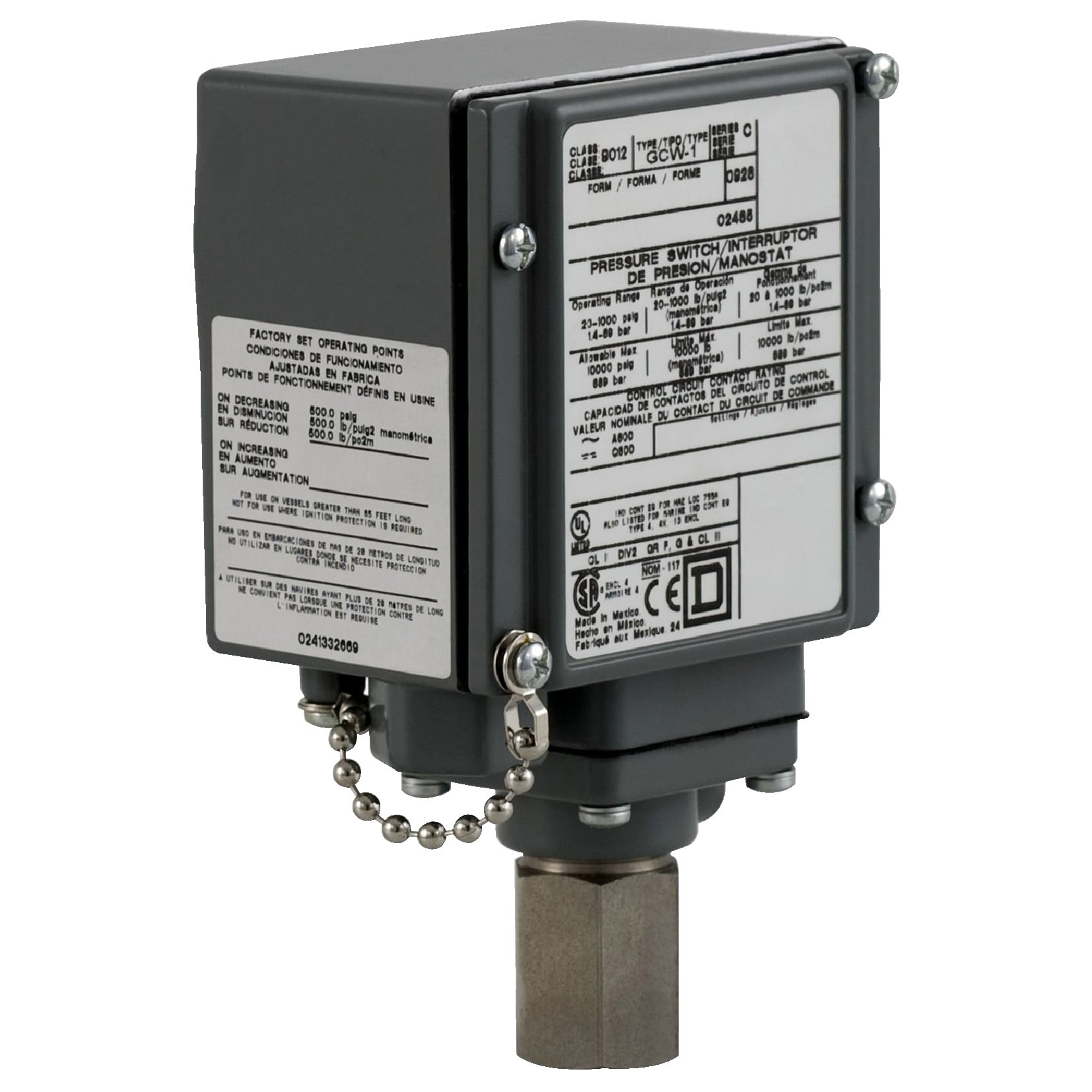

9012GFW1G21V1Z18 1-Stage Electromechanical Pressure Switch, 20 to 1000 psi Pressure, 59 psi Differential, NO-NC 2SPDT-DB Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GFW1G21V1Z18
- UPC:
- 785901826095
- Item #:
- 572258
Discontinued
9012GFW1G21V1Z18 1-Stage Electromechanical Pressure Switch, 20 to 1000 psi Pressure, 59 psi Differential, NO-NC 2SPDT-DB Contact, Screw Clamp Connection
- MFR #:
- 9012GFW1G21V1Z18
- UPC:
- 785901826095
- Item #:
- 572258
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - fixed scale - 1 threshold - 20 to 1000 PSIG psig
Manuals and Documentation
| Catalog Number | 9012GFW1G21V1Z18 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | DETECTION OF 1 SINGLE THRESHOLD |
| Contact Configuration | NC-NO, 2 SPDT-DB, FORM Z, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.44 INCH 20 UNF-2B UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CE-UL 508-CSA C22.2 NO 14,CSA LR25490 CLASS 3211 03-UL LISTED FILE E12158 CCN NKPZ-CE |
| UPC | 785901826095 |
| GTIN | 00785901826095 |
| Item Type | 2.75 A 24 V DC,ELECTROMECHANICAL PRESSURE SWITCH,FIXED |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 1000 PSI,1000 PSI |
