Kaf-Tech

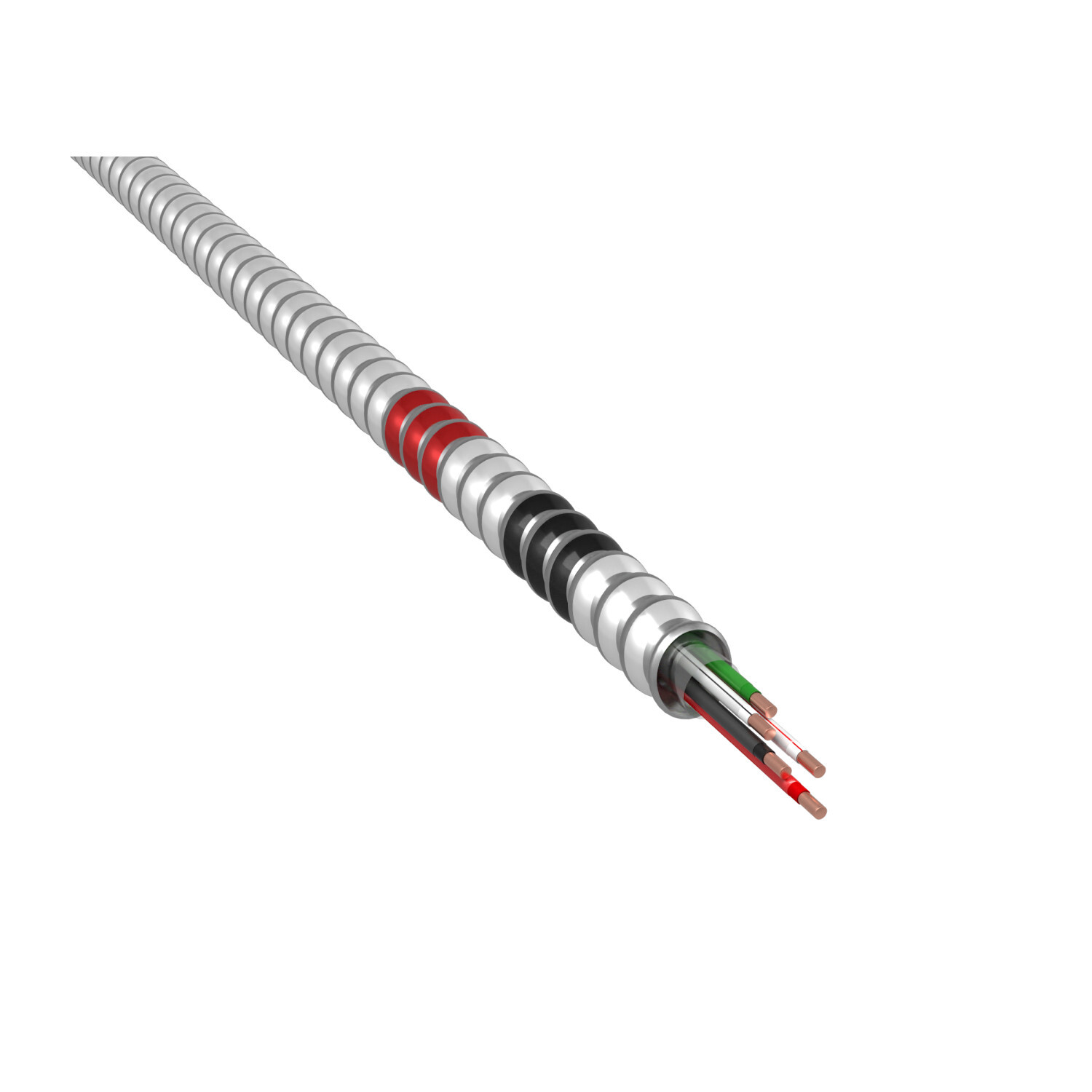

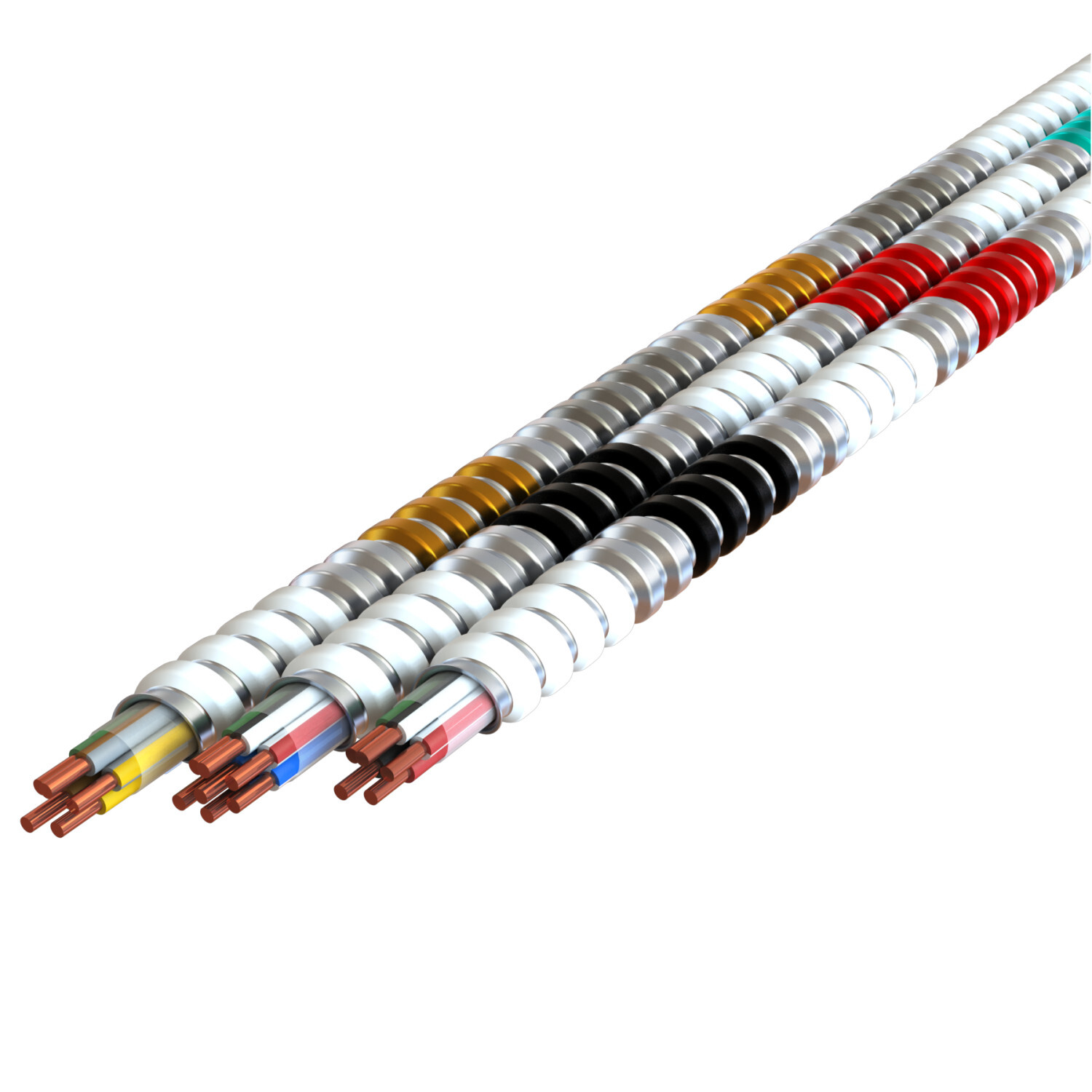

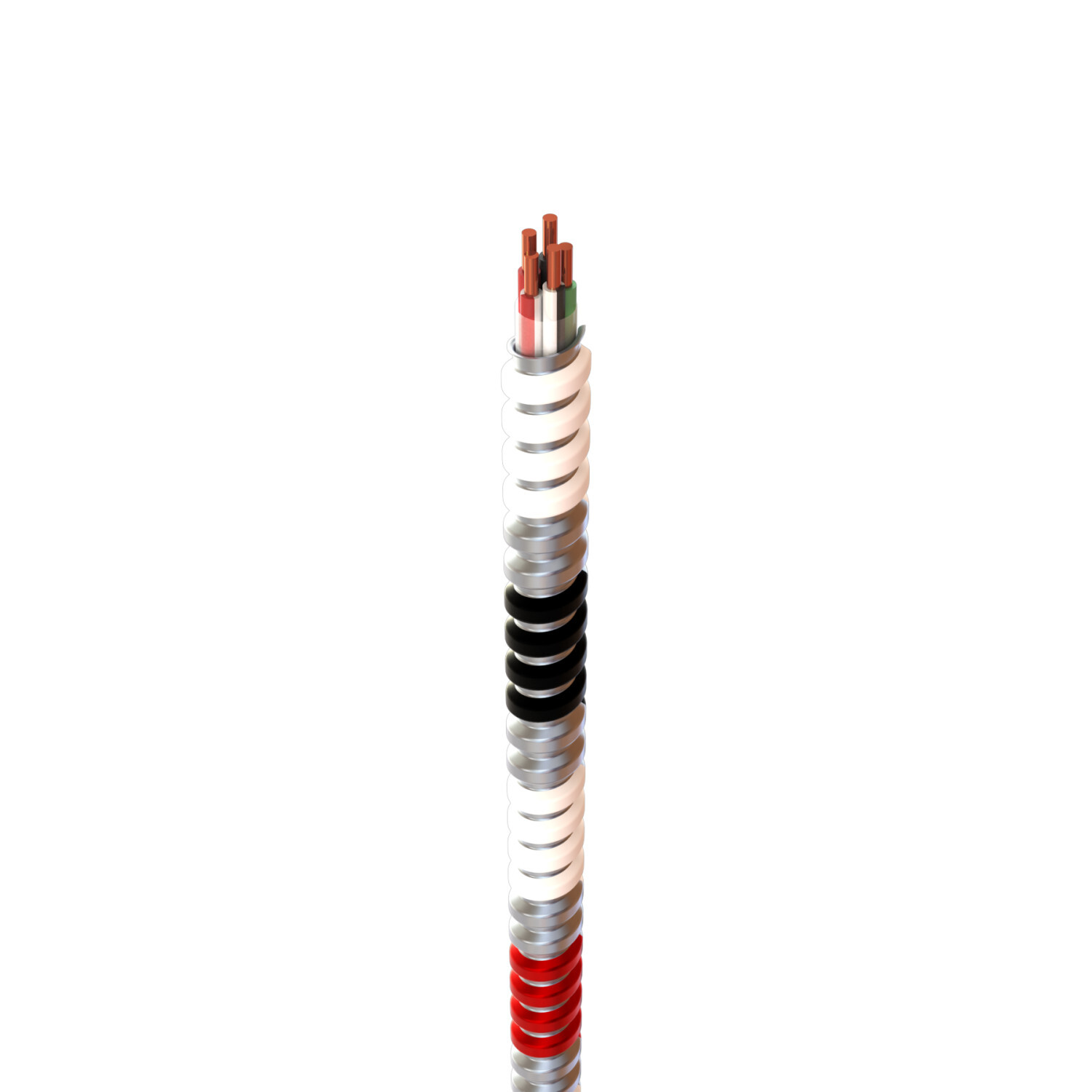

3908-60-01 MC-Plus Traditional Type MC Neutral Per Phase Armored Cable, Reel Packaging, 600 V, (6) 10 AWG Solid Copper Conductor, 250 ft L

MFR:
ATKORE - KAF-TECH
MFR #:
3908-60-01
UPC:
077680259783
Item #:
571610

Availability

Location Available Qty
Available Available to Order
$14.1341 each

Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.

Manuals and Documentation
Catalog Number 3908-60-01
Manufacturer ATKORE - KAF-TECH
Brand Kaf-Tech
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Color White
Conductor Material Copper
Conductor Size 10 AWG
Number of Conductors 7
Standard UL 83, 1479, 1569, 1581, 2556, File Reference E80042 NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 645Federal Specification A-A–59544 (formerly J-C–30B) Meets all applicable OSHA and HUD Requirements UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141
UPC 077680259783
GTIN 00077680259783
Item Type MC-Plus® Neutral Per Phase Steel Armored Cable
Length 1000
Length UOM Foot
Weight 0.4329 LB/FT
Outside Diameter 0.71 IN
Temperature Rating 90
Voltage Rating 600V
