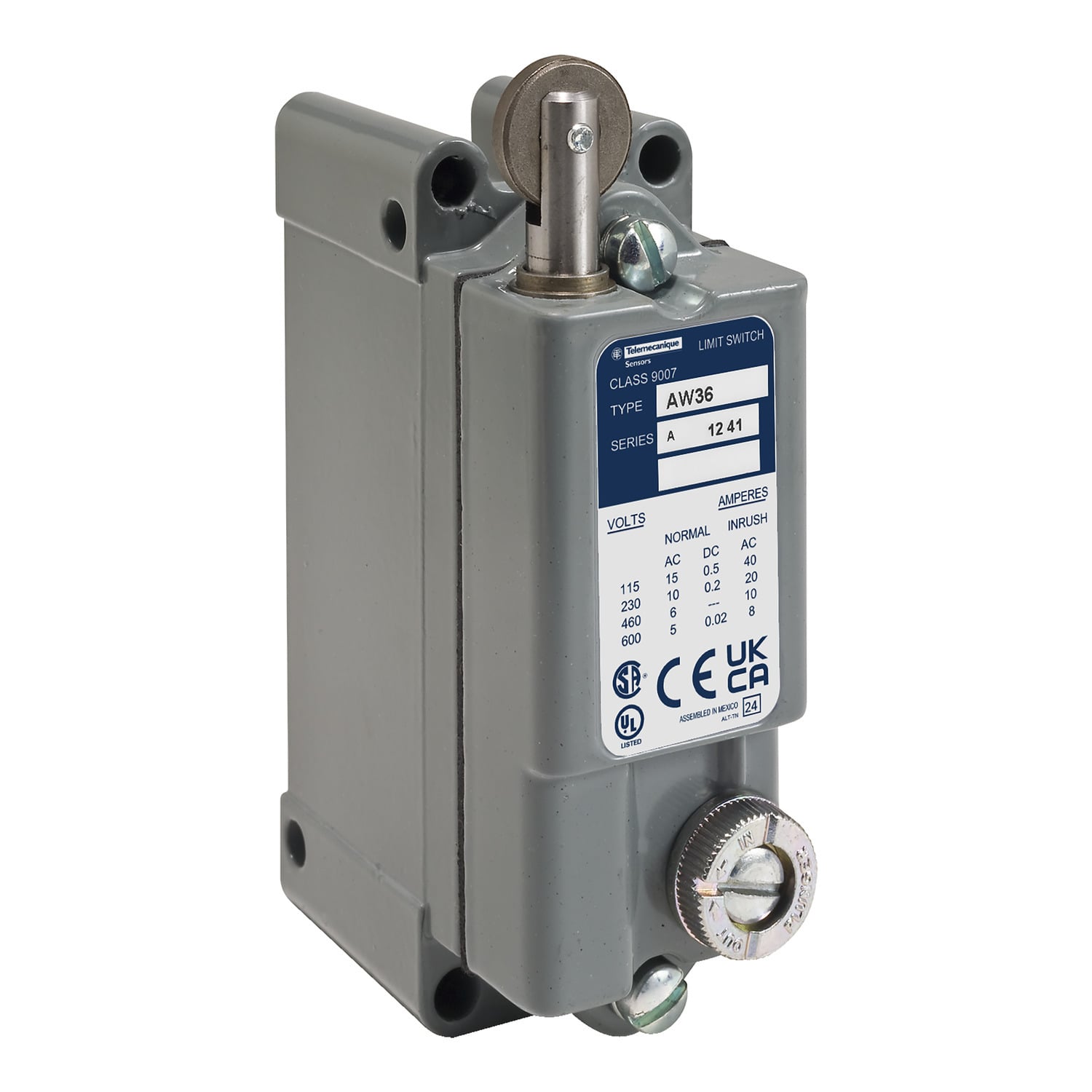

Limit switch, 9007, 600 VAC 15amp aw +options
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007AW32
- UPC:
- 785901804420
- Item #:
- 571592
Limit switch, 9007, 600 VAC 15amp aw +options
- MFR #:
- 9007AW32
- UPC:
- 785901804420
- Item #:
- 571592
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$423.53
each
LIMIT SWITCH 600VAC 15AMP AW +OPTIONS
Manuals and Documentation
| Catalog Number | 9007AW32 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | By 30 Degrees cam;Traverse approach, 2 directions;Snap action |
| Actuator | Plunger head;Spring return roller plunger steel with micrometer adjustment;Cast zinc |
| Amperage Rating | 15 |
| Application | Precision |
| Connection | 1-2 screw-clamp terminals AWG 22...AWG 12) |
| Contact Configuration | Form Z;NC-NO SPDT-DB |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | Surface |
| Number of Poles | 1 |
| Special Features | FIXED,METAL |
| Standard | IP65 IEC 60529 |
| UPC | 785901804420 |
| GTIN | 00785901804420 |
| Item Type | Limit switch |
| Size | 1.44 |
| Operating Temperature | 0-185 A Degrees F |
| Voltage Rating | 5 A 600 V AC, A600 NEMA RATING DESIGNATION-6 A 480 V AC, A600 NEMA RATING DESIGNATION-10 A 240 V AC, A600 NEMA RATING DESIGNATION-15 A 120 V AC, A600 NEMA RATING DESIGNATION-0.02 A 600 V DC-0.2 A 250 V DC-0.5 A 125 V DC |
