Discontinued

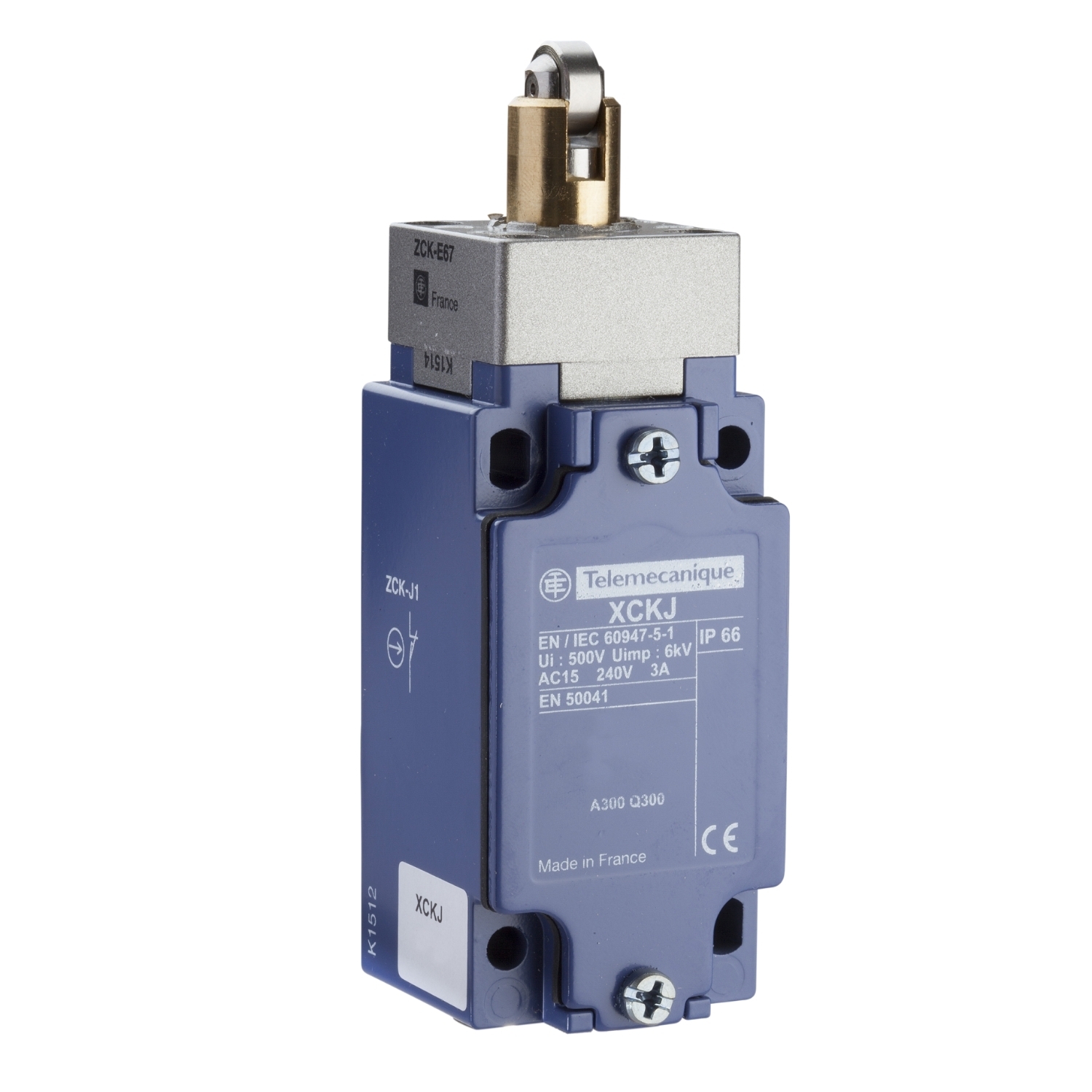

XCKJ167DSC8 OsiSense XC Standard Format Fixed XC Limit Switch, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ167DSC8
- UPC:
- 785901089001
- Item #:
- 571264
Discontinued
XCKJ167DSC8 OsiSense XC Standard Format Fixed XC Limit Switch, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKJ167DSC8
- UPC:
- 785901089001
- Item #:
- 571264
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Limit switch metal NO NC - plunger - M12 connector
Manuals and Documentation
| Catalog Number | XCKJ167DSC8 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Country of Origin | France |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal reinforced |
| Amperage Rating | 4 |
| Application | INDUSTRIAL |
| Connection | Male connector M12, 5 pins |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-UL 508-IEC 60947-5-1-EN 60204-1-CSA C22.2 NO 14-IEC 60204-1-CENELEC EN 50041,IK07 EN 50102,IP66 IEC 60529,UL-CSA-CCC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=469752086&lang=en-us |
| UPC | 785901089001 |
| GTIN | 03389119614283 |
| Item Type | Limit switch |
| Size | 40 MM,44 MM,89-89 MM |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A-3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A |
