Appleton

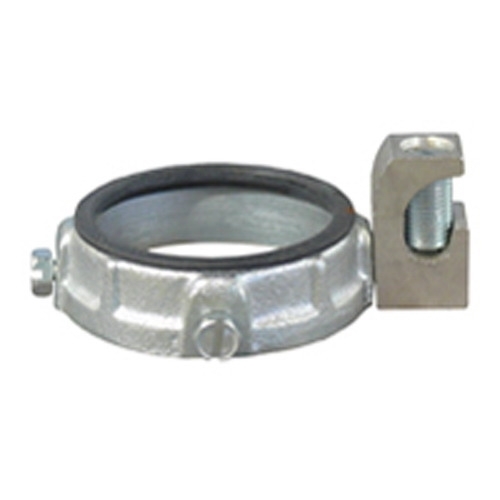

Insulated Grounding Bushing, 1 inch, 14 - 2/0 AWG, Threadless Connection

MFR:
Appleton Electric
MFR #:
GIB-100LS-20AC
UPC:
781381093330
Item #:
570906

Availability

Location Available Qty
Available Available to Order
$37.16 each

Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 1 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Temperature Rating: 150 DEG C, Dimensions: 0.56 IN Height X 1-3/4 IN Diameter, Cable Size: 14 AWG Solid - 2/0 AWG Stranded, Turning Radius: 1.69 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC

Manuals and Documentation

Features

  • Self extinguishing
  • Resists corrosion
  • UL listed
  • CSA certified
Catalog Number GIB-100LS-20AC
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit And IMC
Finish Zinc Electroplated Body, Tin Plated Lug
Material Malleable Iron
Special Features Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
Standard UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381093330
GTIN 00781381093330
Item Type Insulated Grounding Bushing With Aluminum Lay-In-Lug
Length 8.0000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 0.1600
Height UOM Inch
Weight 0.160
Weight UOM Pounds
Size 1
Temperature Rating 150 DEG C
