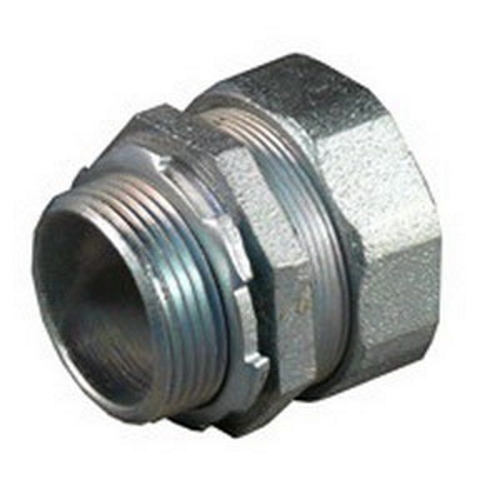

Liquidtight Strain Relief Cord and Cable Connector; Threaded Hub, 1.250 - 1.375 Inch, Steel, Green Label
MFR: Appleton Electric
MFR #: CG-125125S
UPC: 781381449540
Item #: 57010
Liquidtight Strain Relief Cord and Cable Connector; Threaded Hub, 1.250 - 1.375 Inch, Steel, Green Label
MFR #: CG-125125S
UPC: 781381449540
Item #: 57010
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$106.55
each
Straight Liquidtight Strain Relief Connector, Size: 1-1/4 IN, Conductor Range: 1-1/4 - 1-3/8 IN, Material: Machined Steel, Color: Green Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 2.13 IN Height, Standard: Class
Manuals and Documentation
- Catalog Number
- CG-125125S
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
- Color
- Green Label
- Conductor Range
- 1-1/4 - 1-3/8 IN
- Connection
- Threaded Hub
- Material
- Machined Steel
- NEMA Rating
- 3R
- Special Features
- For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Remove sufficient outer covering of cord or cable to pass conductors through connector body; Machined steel cap; Neoprene sealing grommet
- Standard
- Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
- UPC
- 781381449540
- GTIN
- 00781381449540
- Item Type
- Straight Liquidtight Strain Relief Connector
- Size
- 1-1/4
