SQUARE D

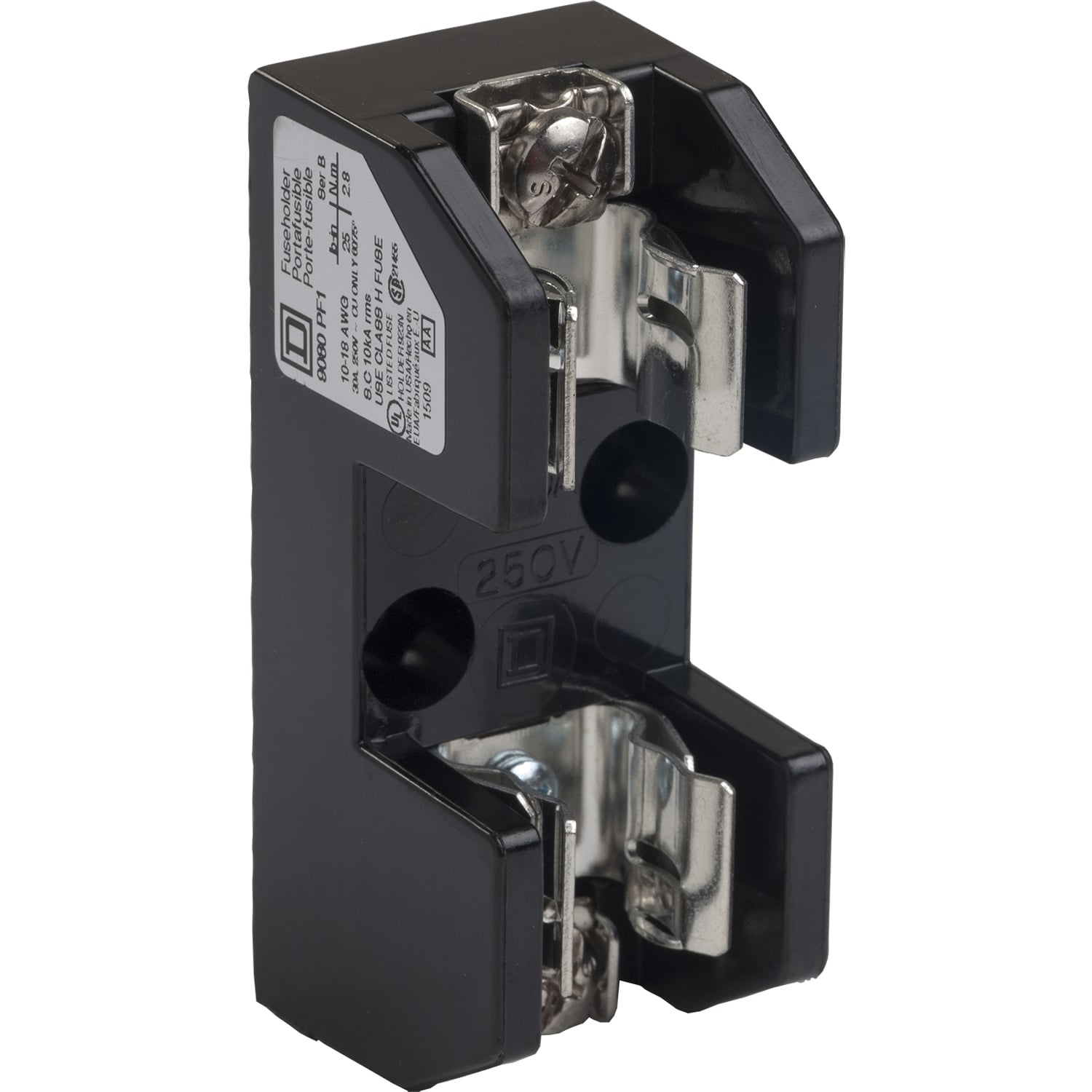

9080PF1 Terminal Block Fuse Holder, 250 V AC/DC, 30 A, Class: H/K, 18 to 10 AWG Wire, 1 Poles

MFR:
Schneider Electric
MFR #:
9080PF1
UPC:
785901567004
Item #:
56935

Availability

Location Available Qty
Available Available to Order
$79.29 each

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 amperes. This one pole fuse holder will accept class H and class k fuses. The rating of the fuse can be up to 30 amperes with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 ampere. This fuse holder is UL listed and CSA certified.

Catalog Number 9080PF1
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application 0.5625 x 2 in
Connection screw terminals 25 lbf.in AWG 14...AWG 10 copper;Pressure wire clamp
Fuse Type H and K
Material Thermoplastic: block
Mounting Surface
Standard CE;UL listed file E40747 CCN IZLT;CSA file 70360 class 6225 01
UPC 785901567004
GTIN 00785901567004
Item Type Fuse holder
Width 1.12
Width UOM Inch
Height 3.0
Height UOM Inch
Depth 1.38 IN
Wire Size AWG 18...AWG 10 copper or aluminium
