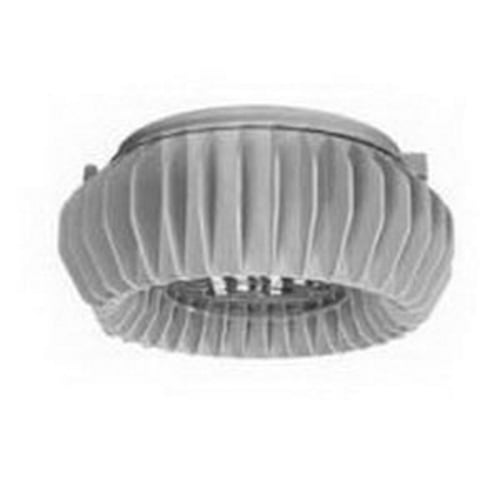

Enclosed & Gasketed LED Fixture, 250 W, 120 - 277 V, Pendant Mount

MFR:
Appleton Electric
MFR #:
MLEDNA252P5BU
UPC:
781381961103
Item #:
568519

Availability

Location Available Qty
Available Available to Order
$4,629.03 each

Appleton Mercmaster Enclosed And Gasketed Luminaire, Fixture Type: Pendant (Rigid Mounting), Lamp Type: 95.5 WTT 9455 LM 70 CRI 60000 HR 5650 DEG K LED, Lamp Wattage: 95.5 WTT, Voltage Rating: 120 - 277 VAC, Material: Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood And Ballast Body, Stainless Steel Hardware And Latch Assemblies, Amperage Rating: 0.83 AMP At 120 V, Length: 15.4 IN, Width: 15.4 IN, Housing Finish: Baked Gray Epoxy-Clad, Housing Material: Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 50 DEG C, Temperature Range: 75 DEG C Supply Wire, Lens Material: Polycarbonate Globe, Number Of Hubs: 1, Hub Size: 3/4 IN NPT, Frequency Rating: 50/60 HZ, Lamp Wattage Equivalent: 250 WTT HPS/PSMH, Enclosure: IP66/67, Standard: ATEX/IECEx: Zone 2 and 22, Ex II 2 GD, For Marine And Wet Locations, Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust, Corrosive Atmosphere Or High Ambient Temperatures Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem

Manuals and Documentation
Catalog Number MLEDNA252P5BU
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Marine And Wet Locations, Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust, Corrosive Atmosphere Or High Ambient Temperatures Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem
Lamp Type 95.5 WTT 9455 LM 70 CRI 60000 HR 5650 DEG K LED
Special Features Compact light weight low profile design is suited for low mounting heights; Modular design allows scores of fixture component combinations to meet installation needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction assures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; NPT and metric threads standard; NEMA type V symmetrical light distribution
Standard ATEX/IECEx: Zone 2 and 22; Ex II 2 GD
UPC 781381961103
GTIN 00781381961103
Item Type Enclosed And Gasketed Luminaire
Voltage Rating 120 - 277
