SCHNEIDER ELECTRIC

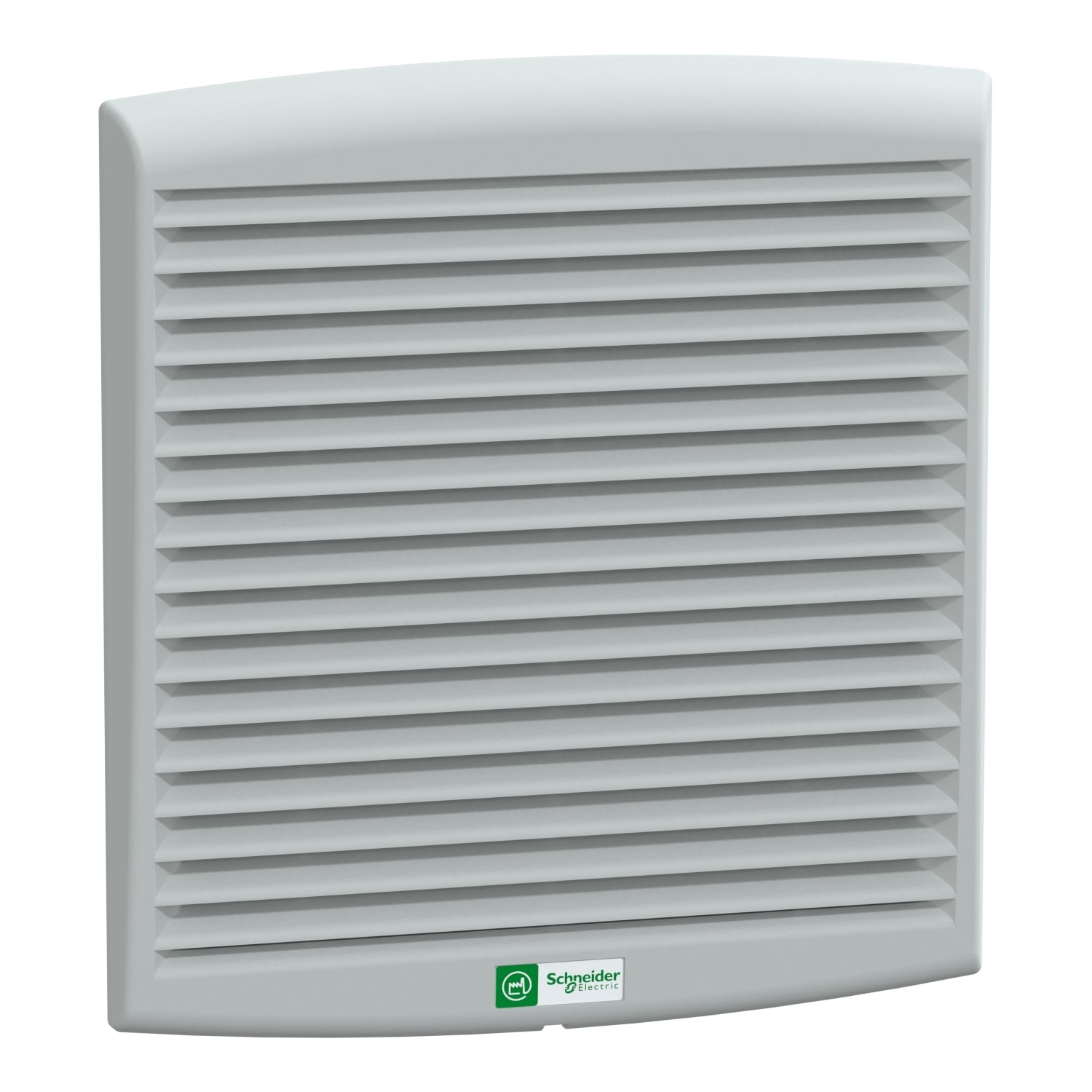

NSYCVF165M230PF ClimaSys Self-Extinguishing Forced Ventilation Fan, 230 V AC, 0.12/0.94 A, 14.3/16.3 W Power Rating, 165 cu-m/hr Air Flow, IP54 Enclosure

MFR:
Schneider Electric
MFR #:
NSYCVF165M230PF
Item #:
56629

Availability

Location Available Qty
Available Available to Order
$116.08 each

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 14.3 W 50 Hz, 16.3 W 60 Hz. Free flow rate with standard filter of 156 m3/h at 50 Hz and 193 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Manuals and Documentation
Catalog Number NSYCVF165M230PF
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Consist of 1 axial motor;2 protective grille on the front and rear surfaces;1 filter front of axial motor;1 outlet grille front;1 cut-out template;1 power cord
Input Voltage 230 V 50/60 Hz
Material Outlet grille injected thermoplastic (ASA PC)
Special Features Faston connector
Standard IP54
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10178367&lang=en-us
GTIN 03606480151248
Item Type Fan
Width External: 248 mm
Height External: 268 mm
Depth External : 104 mm
