Square D™

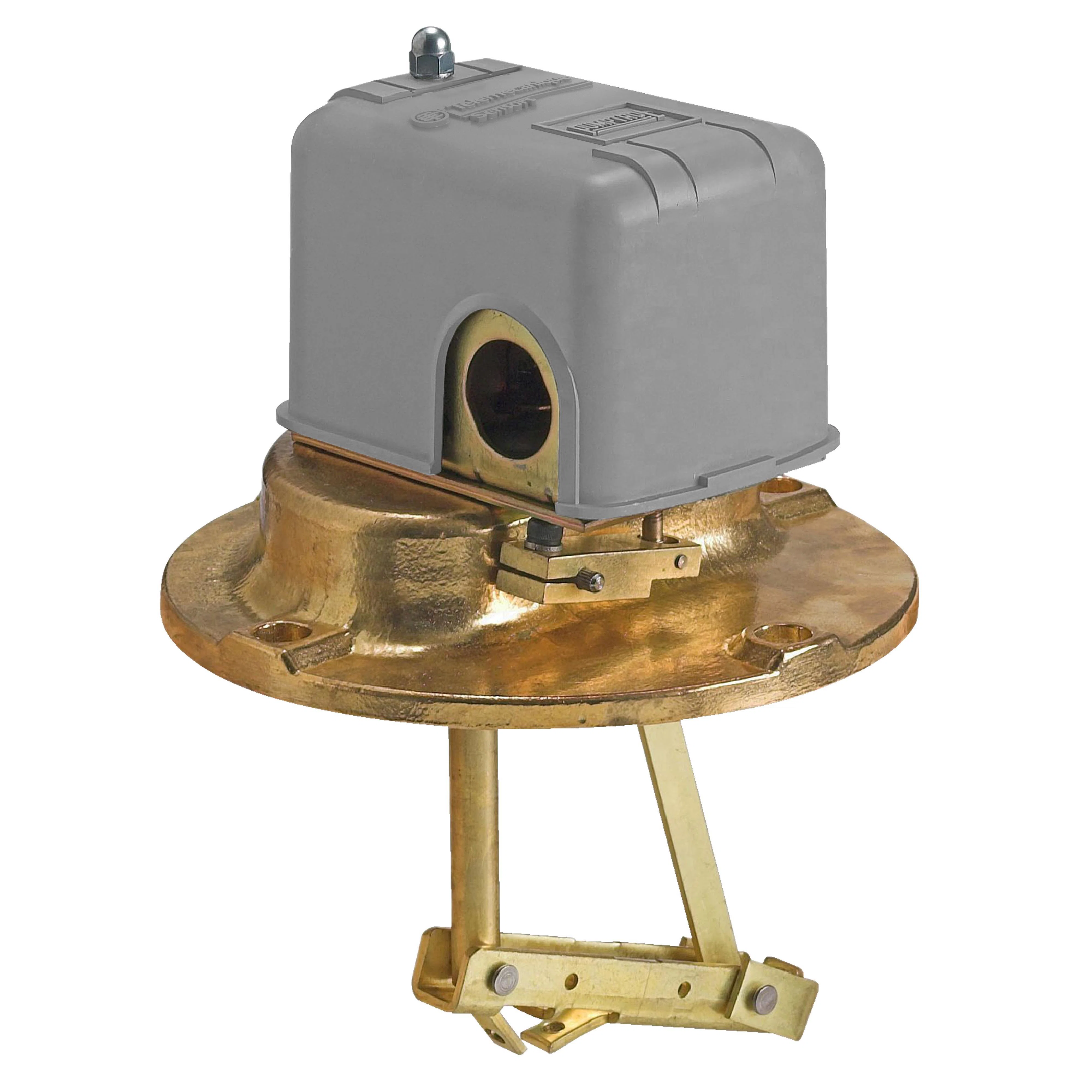

Float switch, Pumptrol, closed tank, NEMA 1, flange mounted, 2 NC DPST DB contacts

MFR:
Schneider Electric
MFR #:
9037EG9
UPC:
785901485445
Item #:
56587

Availability

Location Available Qty
Available Available to Order
$351.63 each

Square D™ Pumptrol™ Float Switch, Closed Tank Level Control Variable Fixed DPST, Series: 9037, 575 V AC Input, 10 AWG Screw Clamp Connection, -22 to 220 deg F, Polypropylene

Manuals and Documentation

Features

  • 2NC DPST contacts
  • Three knockouts for 1/2 in conduit UL 508 cable entry number
  • 20 A cartridge fuse gG short circuit protection
  • 100 cycles at 60 cycles/min electrical durability
  • 300 cycles mechanical durability
  • Four-terminal, 60 cycles/min operating rate
  • 1 hp power rating
  • Nitrile (Buna-N) or equivalent rubber, 304 stainless steel, yellow brass, 304/316 stainless steel material in contacts with fluid
  • Field configurable action
  • Variable fixed float movement
  • Flange mounting
  • NEMA 1 enclosure
  • Screw clamp terminal connection
  • Without 20 A cartridge fuse
Manufacturer Part Number 9037EG9
Brand Square D™
Manufacturer Schneider Electric
UPC 785901485445
EAN 0785901485445
Country Of Origin MX
Material Polypropylene
Series 9037
Temperature Rating -22 to 220 deg F
Type Closed Tank Level Control Variable Fixed DPST
Alternative Part Number 8064017
Manufacturer Item Status Active
Country USA
Warranty 18 months
Standards Approvals RoHS Compliant | UL 50/508 File No. E12158 | CSA File No. LR25490 | CE Marked | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
Application Liquid Level Control Applications
Connection Size 10 AWG Screw Clamp
Input 575 V AC
