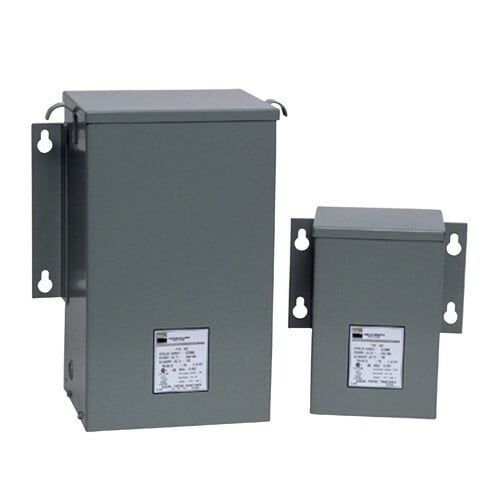

HZ1500 HSZ Encapsulated Control Transformer, 240/480, 230/460, 220/440 V AC Primary, 110/115/120 VAC Secondary, 1.5 kVA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- SolaHD
- MFR #:
- HZ1500
- UPC:
- 783472570652
- Item #:
- 564903
HZ1500 HSZ Encapsulated Control Transformer, 240/480, 230/460, 220/440 V AC Primary, 110/115/120 VAC Secondary, 1.5 kVA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- HZ1500
- UPC:
- 783472570652
- Item #:
- 564903
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,776.35
each
Manuals and Documentation
| Catalog Number | HZ1500 |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| Enclosure | NEMA 3R |
| Frequency Rating | 50/60 |
| Phase | 1 |
| Primary Voltage | 240/480, 230/460, 220/440 Volt Primary |
| Secondary Voltage | 120/115/110 Volt Secondary |
| Special Features | UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| UPC | 783472570652 |
| GTIN | 00783472570652 |
| Item Type | HSZ Series Industrial Control Transformers |
| Length | 7 |
| Width | 10 |
| Height | 12 |
| Temperature Rating | 80 DEG Temperature Rise under full load |
| Wattage | 1 |
