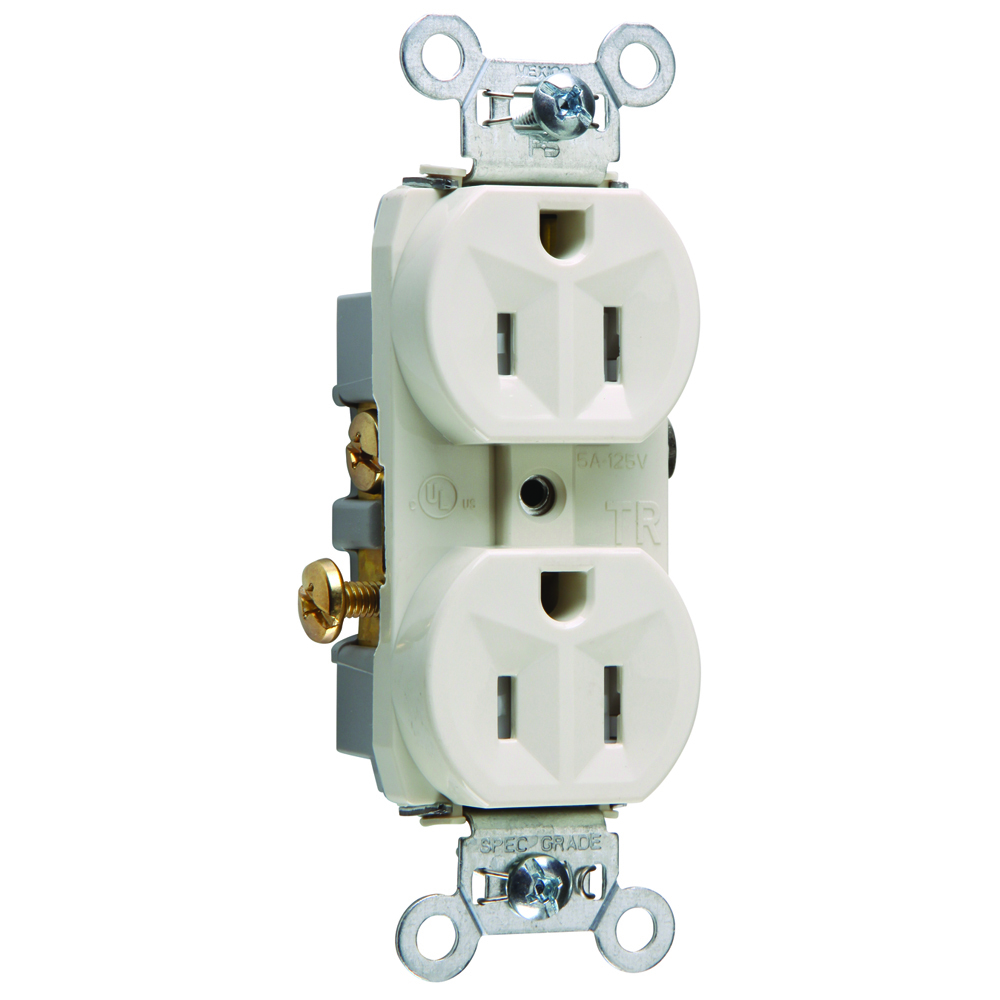

TR15LA 15 Amp 125V Commercial Grade Duplex Receptacle, Light Almond
MFR: Legrand-Pass & Seymour
MFR #: TR15LA
UPC: 785007241693
Item #: 563586
TR15LA 15 Amp 125V Commercial Grade Duplex Receptacle, Light Almond
MFR #: TR15LA
UPC: 785007241693
Item #: 563586
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$8.10
Tamper-Resistant Commercial Grade Receptacle, 15A, 125V. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
- Catalog Number
- TR15LA
- Manufacturer
- Legrand-Pass & Seymour
- Brand
- Legrand-Pass & Seymour
- Warranty Description
- 1-Year Limited Warranty
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 15
- Application
- Commercial
- Color
- Light Almond
- Connection
- Side wire
- Material
- Nylon
- Mounting
- Wall
- NEMA Rating
- 5
- Number of Poles
- 2
- Number of Wires
- 3
- Special Features
- Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive steel terminal screws for faster installation. Side wire capability. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- Standard
- cULus UL498, CSA C22.2 No. 42
- UPC
- 785007241693
- GTIN
- 00785007241693
- Item Type
- Tamper-Resistant Commercial Grade Receptacle
- Size
- 1.322 L x 1.130 W x 3.281 H
- Environmental Conditions
- Flammability: UL94 V2
- Temperature Rating
- -40° - 50° C
- Voltage Rating
- 125
- Wire Size
- 14 - 10 AWG
