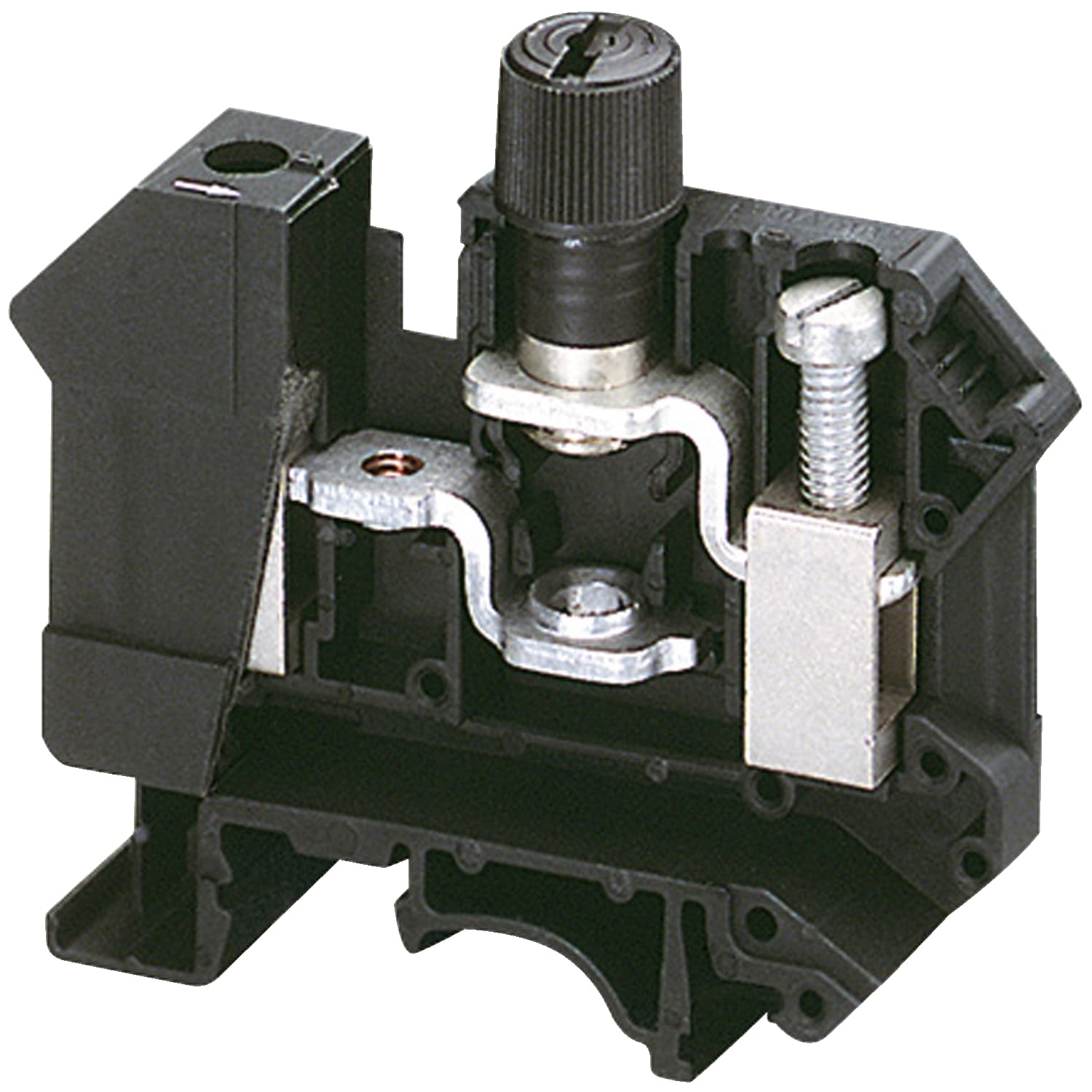

NSYTRV162SF 1-Level 2-Point Fused Terminal Block, 500 V AC, 20 A, 24 to 6 AWG Wire, 1 Pole, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV162SF
- Item #:
- 563241
NSYTRV162SF 1-Level 2-Point Fused Terminal Block, 500 V AC, 20 A, 24 to 6 AWG Wire, 1 Pole, Clip-Fit Mount
- MFR #:
- NSYTRV162SF
- Item #:
- 563241
Availability
| Location | Available Qty |
|---|---|
| Available | 45 ea |
Linergy TR is terminal block for Linergy. It belongs to linergy fixed carrier terminal block with 16 mm nominal cross section. The rated operational voltage is 300V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has black surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, DNV, LR, EAC).
Manuals and Documentation
| Catalog Number | NSYTRV162SF |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Poland |
| Made in USA | No |
| Application | Protection;5 x 20 mm |
| Color | Black |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761954&lang=en-us |
| GTIN | 03606480532320 |
| Item Type | Fixed carrier;Terminal block;Spacial enclosures |
