O-Z/Gedney

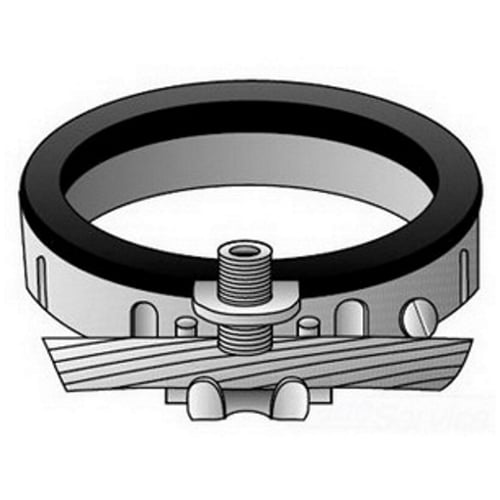

RBLG-1104 Type RBLG Insulated Ground Bushing, 1 in Trade, 14 AWG Wire Min, 4 AWG Wire Max, 1-5/8 in Dia, Bronze

MFR:
O-Z/Gedney
MFR #:
RBLG-1104
UPC:
783126468298
Item #:
563098

Availability

Location Available Qty
Available Available to Order
$155.65 each
Manuals and Documentation

Features

  • Low grounding connector profile
  • Spring action design maintains positive firm contact on grounding conductor
  • Set screw provides fixed alignment and positive ground continuity
  • UL listed
  • CSA certified
Catalog Number RBLG-1104
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Threaded Rigid Conduit And IMC
Connection Set-Screw
Material Bronze Body, Stainless Steel Screws
Special Features O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug
Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126468298
GTIN 00783126468298
Item Type Type RBLG Insulated Grounding Bushing
Size 1
Temperature Rating 150 DEG C
