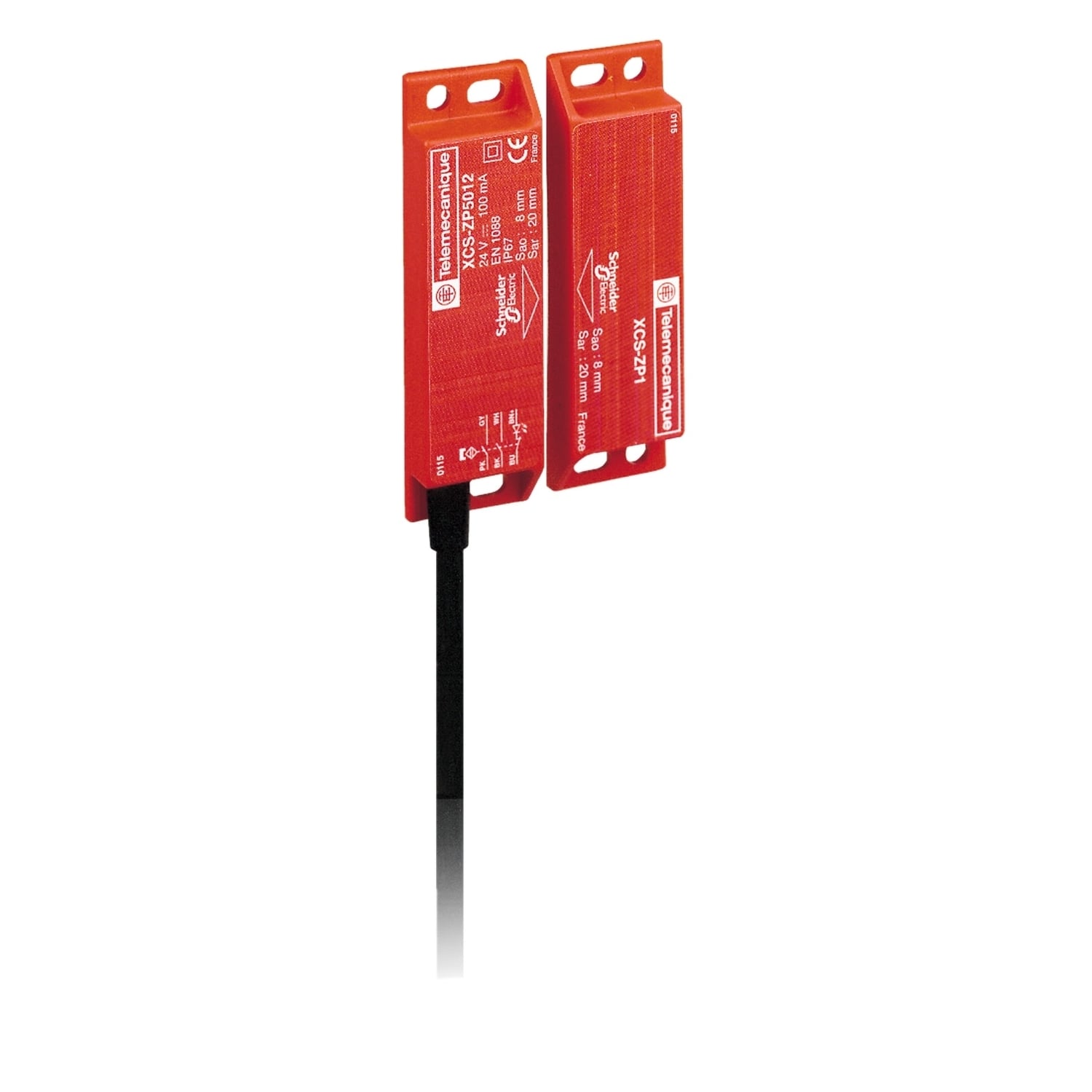

XCSDMP5005 Preventa 3-Direction 3-Pole Non-Contact Standard Safety Interlock Switch, Coded Magnetic Actuator, 100 mA at 24 V DC Contact, 2NO-1NC Contact, Rhodium Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSDMP5005
- UPC:
- 785901435914
- Item #:
- 562690
XCSDMP5005 Preventa 3-Direction 3-Pole Non-Contact Standard Safety Interlock Switch, Coded Magnetic Actuator, 100 mA at 24 V DC Contact, 2NO-1NC Contact, Rhodium Contact
- MFR #:
- XCSDMP5005
- UPC:
- 785901435914
- Item #:
- 562690
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$167.90
each
Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 1 NC + 2 NO, 1 NO staggered, 5 m
Manuals and Documentation
| Catalog Number | XCSDMP5005 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Morocco |
| Made in USA | No |
| Action | 1 NO staggered |
| Actuator | NON-CONTACT |
| Amperage Rating | 100 |
| Connection | Pre-cabled |
| Contact Configuration | 1 NC + 2 NO |
| Enclosure | Thermoplastic PBT |
| Number of Poles | 3 |
| Operating Cycles | 1200000 CYCLES |
| Special Features | PLASTIC |
| Standard | 10 GN 10-150 HZ)IEC 60068-2-6,30 GN 11 MS IEC 60068-2-27,CSA-BG-UL,EN/IEC 60204-1-UL 508-EN/ISO 12100-EN/IEC 60947-5-1-ISO 14119-CSA C22.2 NO 14,IP66 IEC 60529-IP67 IEC 60529,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859006&lang=en-us |
| UPC | 785901435914 |
| GTIN | 03389110971941 |
| Item Type | Coded magnetic switch |
| Size | 88 x 25 x 13 mm |
| Operating Temperature | -25-85 A Degrees C |
| Voltage Rating | 24 V DC |
