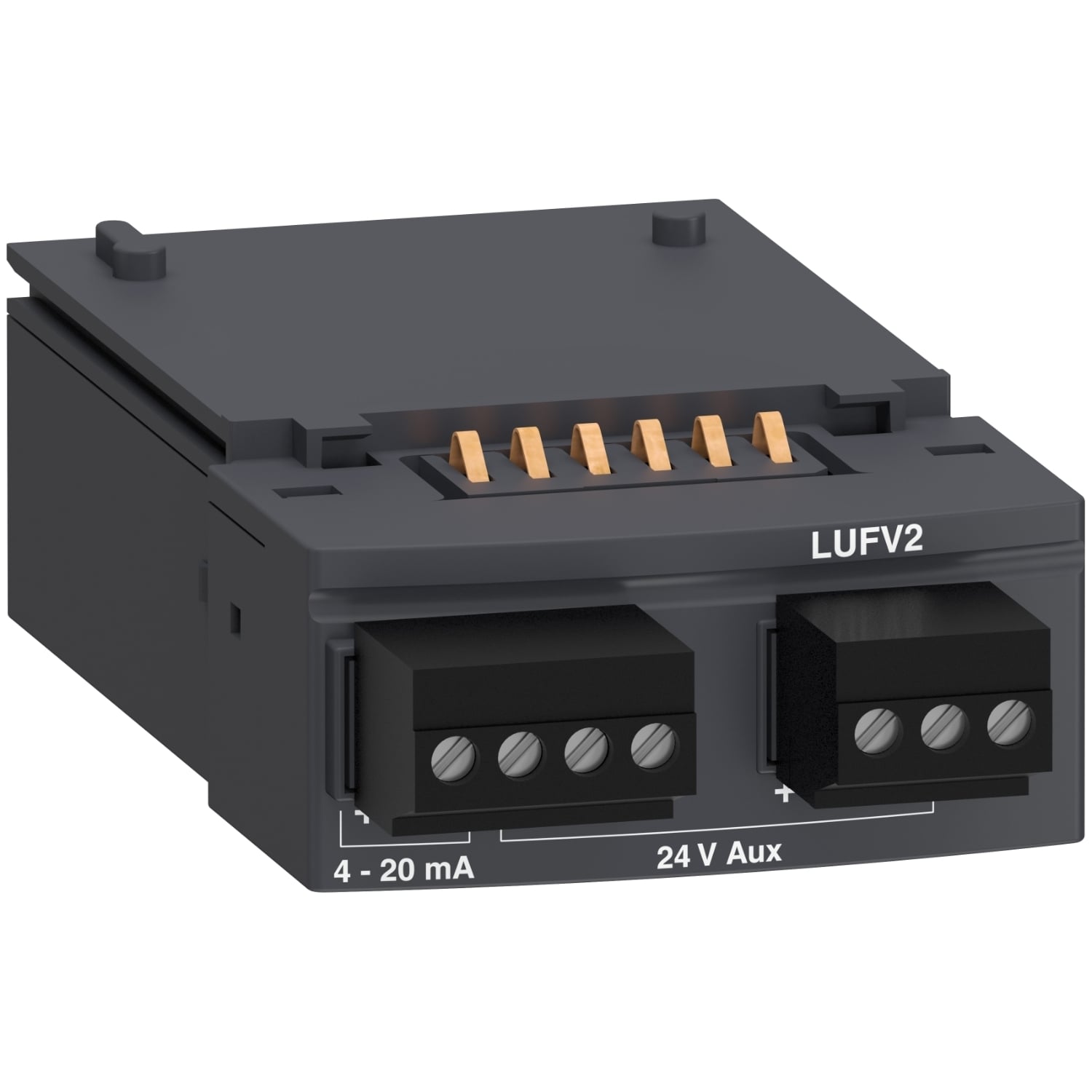

Function module, indication of motor load, TeSys Ultra, 4mA to 20mA
MFR: Schneider Electric
MFR #: LUFV2
Item #: 561277
Function module, indication of motor load, TeSys Ultra, 4mA to 20mA
MFR #: LUFV2
Item #: 561277
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
- Catalog Number
- LUFV2
- Manufacturer
- Schneider Electric
- Brand
- SCHNEIDER ELECTRIC
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- GTIN
- 03389110365498
