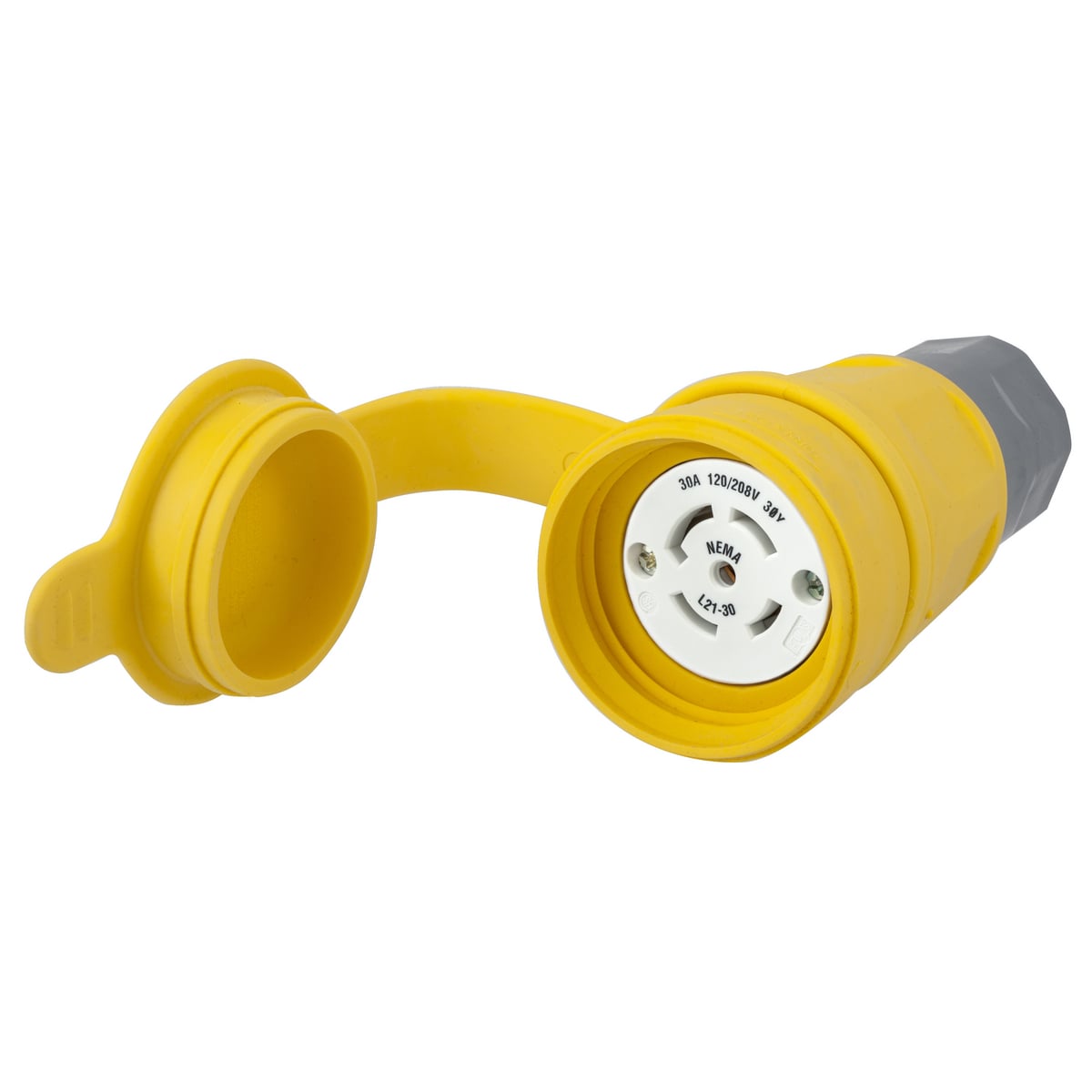

HBL29W81 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL29W81
- UPC:
- 783585131924
- Item #:
- 560623
HBL29W81 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
- MFR #:
- HBL29W81
- UPC:
- 783585131924
- Item #:
- 560623
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$228.68
each
Manuals and Documentation
| Catalog Number | HBL29W81 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Industrial/Commercial |
| Color | Yellow |
| Conductor Range | #14AWG to #10AWG |
| Connection | Terminal Screws |
| Insulation | Insulated Body |
| Material | Elastomer/Composite |
| Mounting | Cord |
| NEMA Rating | 1 |
| Number of Conductors | 5-Wire Grounding |
| Number of Poles | 4 |
| Special Features | Watertight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| UPC | 783585131924 |
| GTIN | 00783585131924 |
| Item Type | Connector Body |
| Size | 2.77 in x 2.77 in x 5.67 in |
| Environmental Conditions | Water Tight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 3-Phase Y 120/208 |
