Appleton

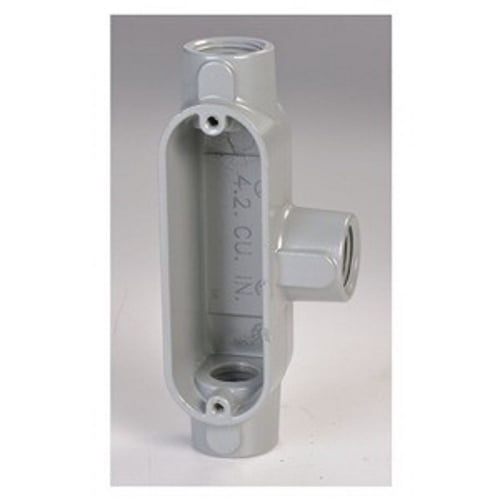

T100T-A Unilets Type T Conduit Outlet Body, Form 85 Form, 11.8 cu-in Capacity, Pressure Cast Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
T100T-A
UPC:
781381687454
Item #:
55864

Availability

Location Available Qty
Available Available to Order
$89.89 each

Form 85 UNILETS Type T Conduit Outlet Body, Hub Size: 1 IN, Form: 85, Length: 6.69 IN, Height: 1.88 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Set-Screw, Standard: UL 514A, UL 514B, UL File Number E2527,

Manuals and Documentation
Catalog Number T100T-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin India
Made in USA No
Application For Use With EMT
Connection Set-Screw
Finish Epoxy Powder Coat
Form 85
Hub Size 1 IN
Material Pressure Cast Aluminum
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Set screw type has slotted hex head steel hardened cup-point set screw for EMT; Wiring capacity: 11.8 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381687454
GTIN 00781381687454
Item Type Type T Conduit Outlet Body
Length 6.69
Length UOM Inch
Height 1.88
Height UOM Inch
