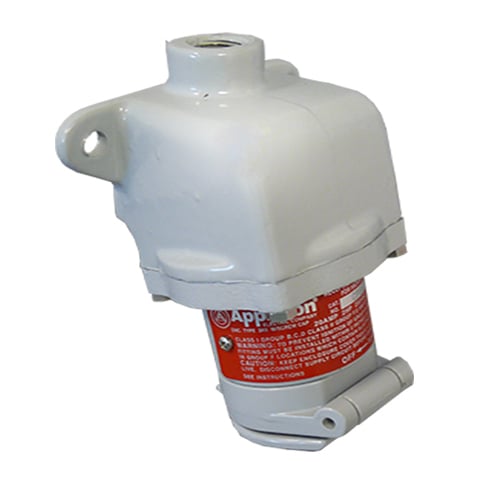

CPSA-2375 CPS 15 deg Angle Explosionproof Receptacle Assembly, 120 to 240 V AC/24 V DC, 20 A, 3 Poles, 2 Wires
- MFR:
- Appleton Electric
- MFR #:
- CPSA-2375
- UPC:
- 781381198851
- Item #:
- 557857
CPSA-2375 CPS 15 deg Angle Explosionproof Receptacle Assembly, 120 to 240 V AC/24 V DC, 20 A, 3 Poles, 2 Wires
- MFR #:
- CPSA-2375
- UPC:
- 781381198851
- Item #:
- 557857
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,043.41
each
15 DEG Angle Type CPS Series Receptacle, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 120 - 240 VAC, 24 VDC, Material: Copperfree (Less Than 4/10 Of 1 PCT) Aluminum Cover, Malleable Iron Mounting Box, Nema Rating: NEMA 3RX, 7BCD, Mounting: Surface Mount With 3/4 IN Hub, Connection: Pressure Wire Terminal, Motor Horsepower: 1 HP, Finish: Epoxy Powder Coat Cover And Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) Mounting Box, Dimensions: 4-3/4 IN Width X 6.02 IN Height X 4 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups F, G, UL Standard: UL 1010 (UL 1203)
Manuals and Documentation
Features
- Discontinued
| Catalog Number | CPSA-2375 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | For CPP-2023 Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (Less Than 4/10 Of 1 PCT) Aluminum Cover, Malleable Iron Mounting Box |
| Mounting | Surface |
| NEMA Rating | 3R |
| Number of Poles | 3 |
| Number of Wires | 2 |
| Special Features | Explosion proof, dead-front safety construction; Factory sealed: external seals not required; CPS series receptacles are supplied with pressure terminal connectors; Captive stainless steel hex head slotted screws; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Fiberglass reinforced thermoset polyester insulating blocks; Energizes receptacle terminals deeply recessed to prevent accidental touching |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; UL Standard: UL 1010 (UL 1203) UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644 |
| UPC | 781381198851 |
| GTIN | 00781381198851 |
| Item Type | 15 DEG Angle Type CPS Series Receptacle |
| Voltage Rating | 120 - 240 VAC, 24 VDC |
