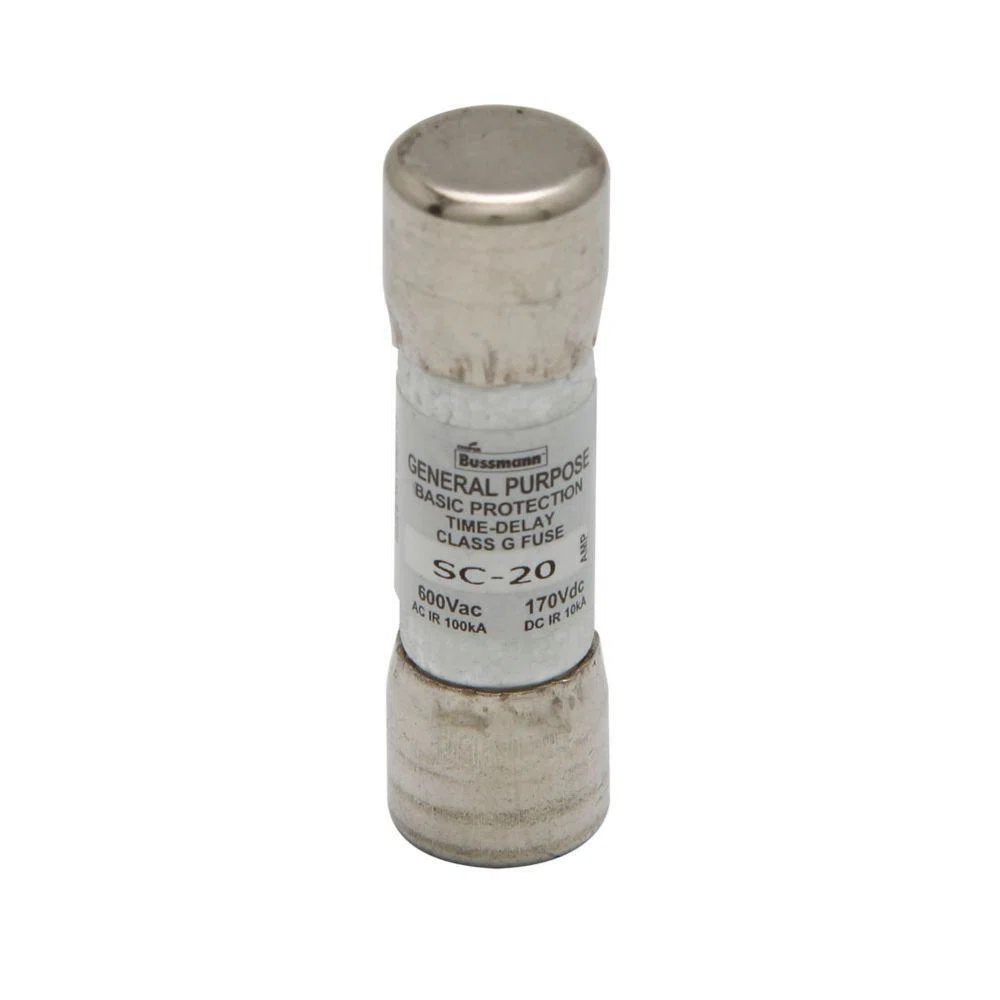

SC-20 SC Series Current Limiting Time Delay Fuse, 20 A, 600 V AC/170 V DC, 100/10 kA Interrupt, Class: G, Cylindrical Body
- MFR:
- Eaton
- MFR #:
- SC-20
- UPC:
- 051712250207
- Item #:
- 55739
SC-20 SC Series Current Limiting Time Delay Fuse, 20 A, 600 V AC/170 V DC, 100/10 kA Interrupt, Class: G, Cylindrical Body
- MFR #:
- SC-20
- UPC:
- 051712250207
- Item #:
- 55739
Availability
| Location | Available Qty |
|---|---|
| Available | 41 ea |
$61.64
each
Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing
Manuals and Documentation
| Manufacturer Part Number | SC-20 |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712250207 |
| EAN | 5027590455053 |
| Amperage Rating | 20 A |
| Material | Melamine |
| Mounting Type | Holder |
| Series | SC Series |
| Type | Current Limiting |
| Voltage Rating | 600 V AC/170 V DC |
| Alternative Part Number | 7608290 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant,CE Marked |
| Application | For fusible branch panelboards and HVAC branch circuit protection applications |
| Body Size | 0.41 in Dia x 1.41 in L |
| Body Type | Cylindrical |
| Class | G |
| Element | Dual |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 100/10 kA |
| Rejection Non Rejection | Rejection |
| Response Time | 12 s |
| Terminal Type | Ferrule |
