SCHNEIDER ELECTRIC

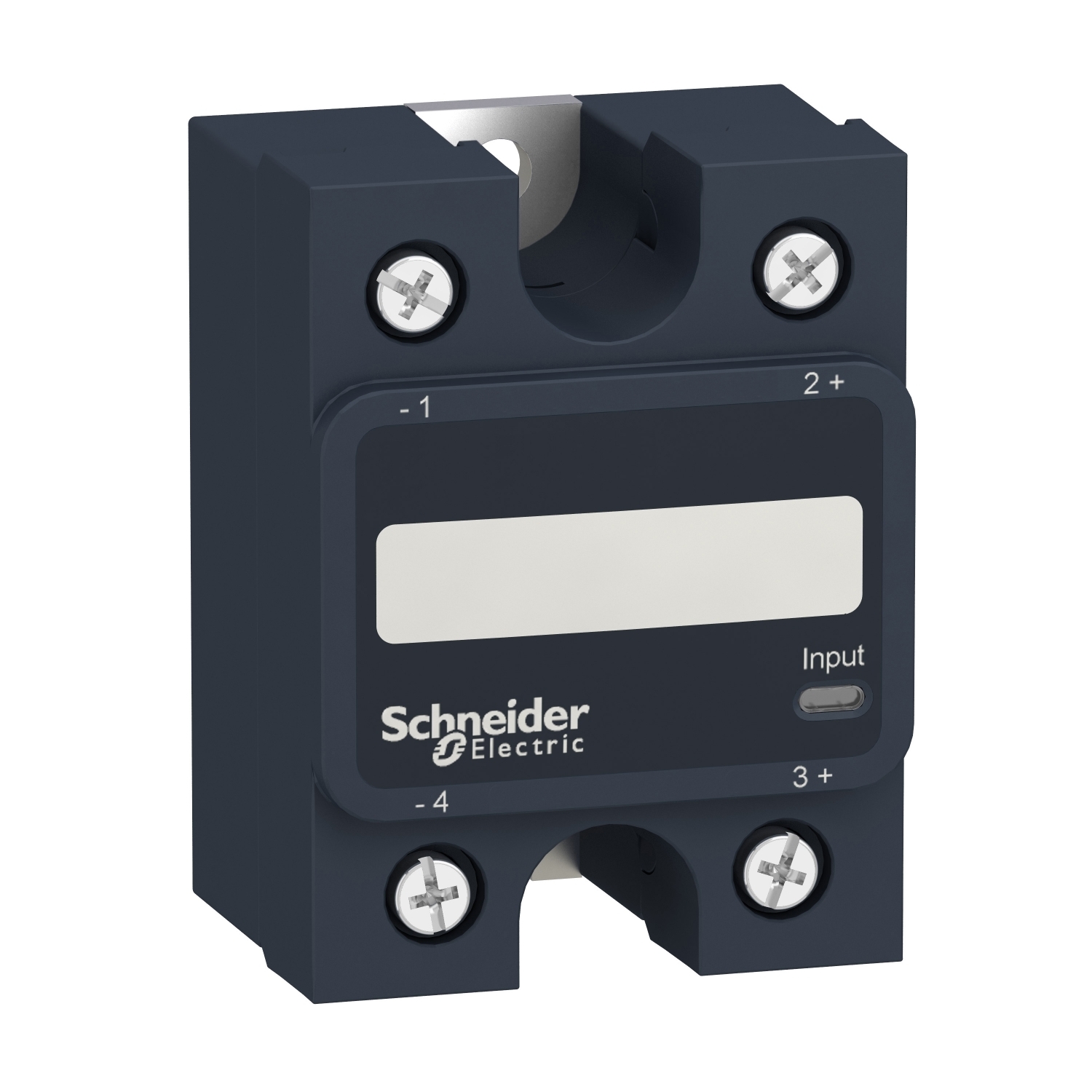

SSP1A110M7T Zelio 1-Phase Zero Voltage Switching Solid State Relay With Embedded Thermal Pad, 10 A, 1NO 1 Form A SPST Contact, 90 to 280 V AC V Coil

MFR:
Schneider Electric
MFR #:
SSP1A110M7T
Item #:
556994

Availability

Location Available Qty
Available Available to Order
$32.59 each

This Harmony SSP solid state panel mount single-phase relay is rated 10A, is controlled with a 90V to 280V AC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Manuals and Documentation
Catalog Number SSP1A110M7T
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin United States
Made in USA Yes
Connection Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input;screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output;screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input;screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output;forked type tag connectors 9.2 x 4 mm input;ring lugs 9.2 x 4 mm input;forked type tag connectors 11.7 x 4.5 mm output;ring lugs 11.7 x 4.5 mm output
Mounting Panel Mount
Phase 1
Response Time 30 ms (turn-off);25 ms (turn-on)
Special Features LED, green input
Standard IP20
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419644&lang=en-us
GTIN 03606485442112
Item Type Panel mount relay
