Buchanan

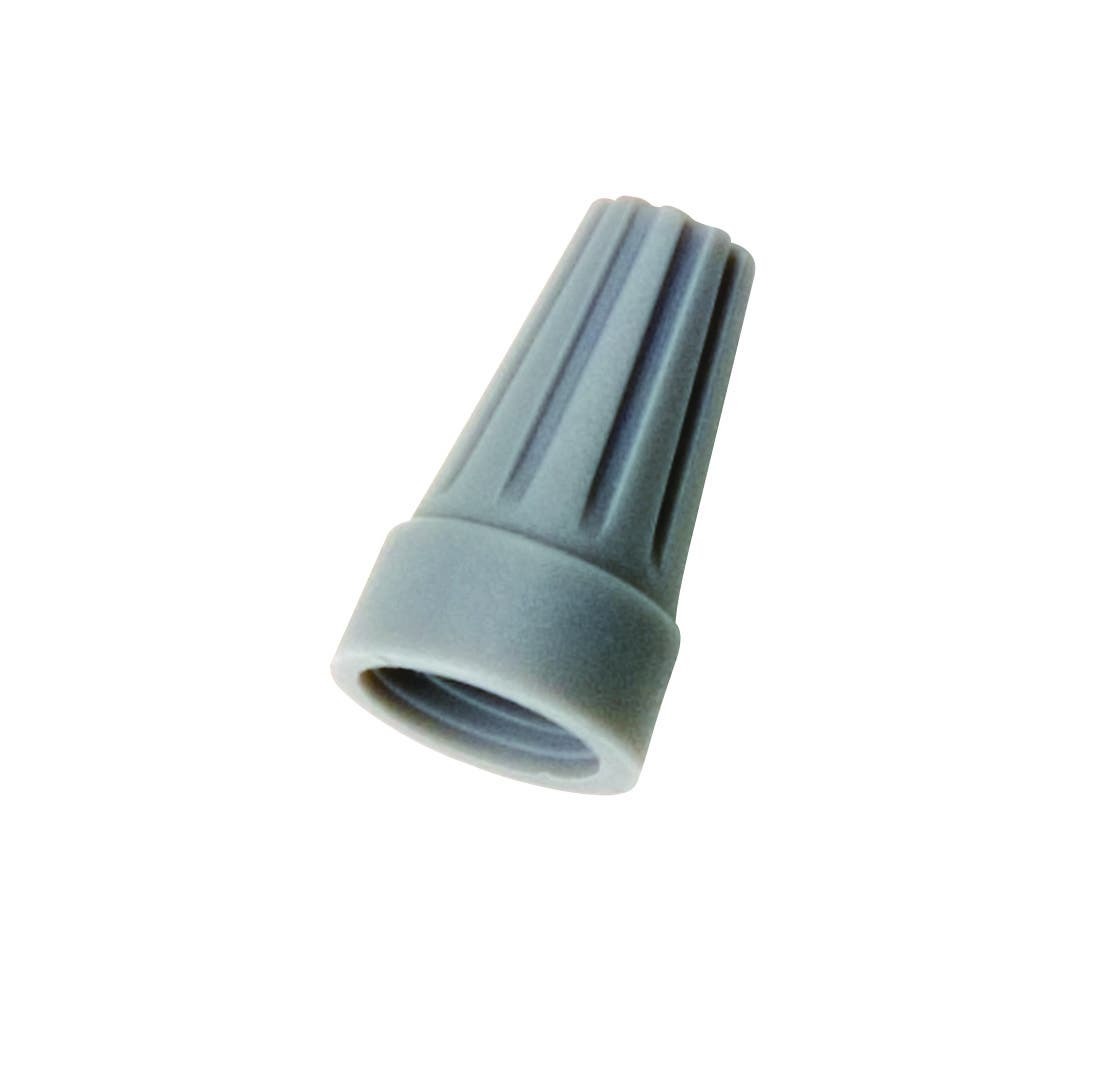

WT1-1 Buchanan WireTwist Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 22 to 14 AWG Stranded Wire, Polypropylene

MFR:
Ideal Industries
MFR #:
WT1-1
UPC:
781789610009
Item #:
555735

Availability

Location Available Qty
Available Available to Order
$0.113 each

With five, color-coded connectors designed to accommodate hundreds of different solid or stranded wire combinations, WireTwist Wire Connectors offer an economical connector that brings a lot of value in comfort and performance.The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flashover and turned back strands providing excellent dielectric protection.

Manuals and Documentation
Catalog Number WT1-1
Manufacturer Ideal Industries
Brand Buchanan
Country of Origin United States
Made in USA Yes
Application Insulating or Joining 1 or more conductors
Color Gray
Conductor Range 22 - 14 AWG, 2/22 AWG Stranded Min, 2/16 AWG Max
Material Flame-retardant Polypropelene
Number of Conductors 1 to 5
Special Features Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Ribbed Cap Provides Positive Grip For Fast, Easy Installation; Fixed, Square-Wire Spring Threads Itself Creating A Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F); UL 486C Listed And CSA 22.2 #188 Certified; Model Number: WT1
Standard CSA C22.2 #188, UL 486C Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 781789610009
GTIN 00781789610009
Environmental Conditions Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Voltage Rating 300
