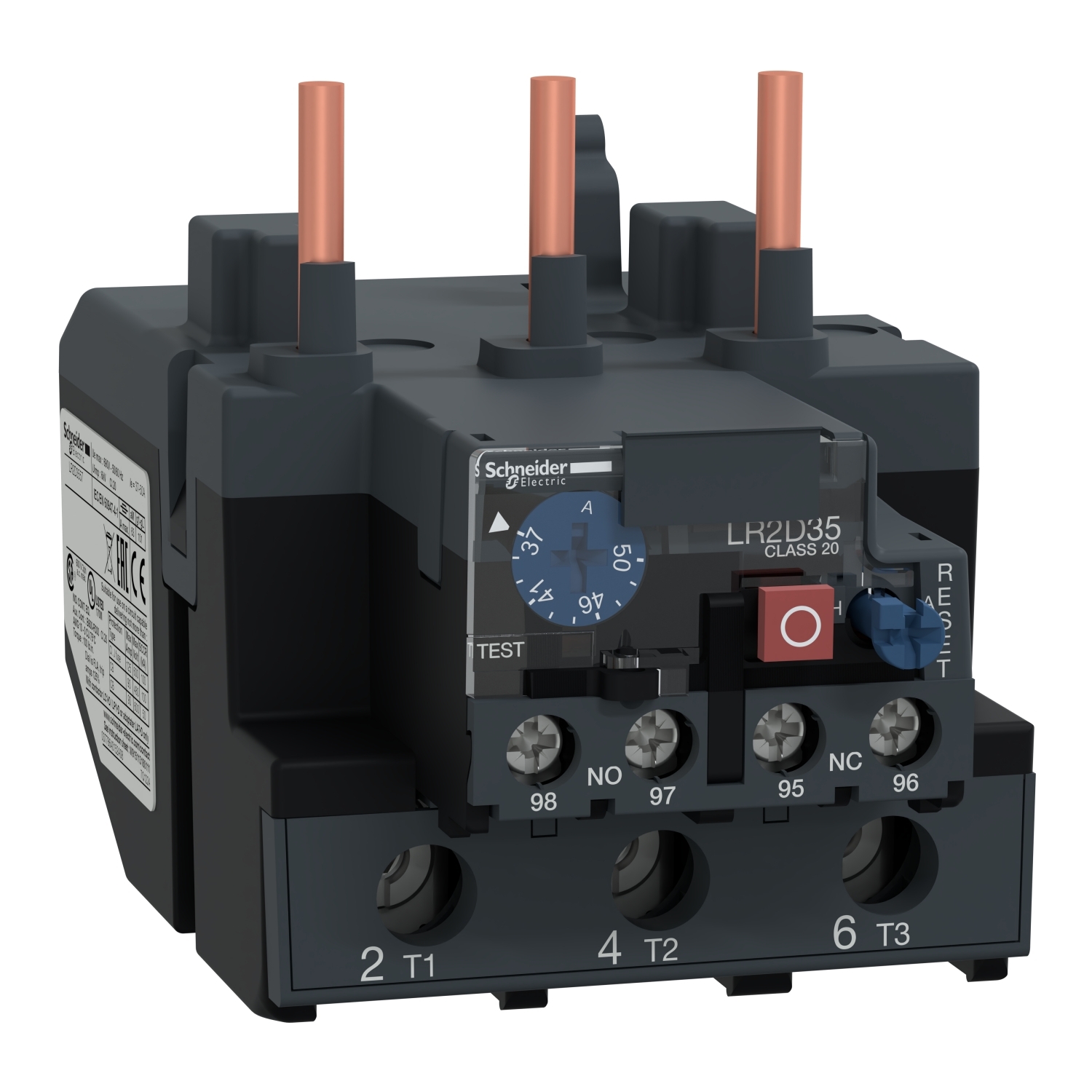

LR2D3557 LRD Bi-Metallic Differential Thermal Overload Relay, 37 to 50 A, 1NO-1NC 1 Form A/1 Form B Contac
- MFR:
- Schneider Electric
- MFR #:
- LR2D3557
- Item #:
- 55472
LR2D3557 LRD Bi-Metallic Differential Thermal Overload Relay, 37 to 50 A, 1NO-1NC 1 Form A/1 Form B Contac
- MFR #:
- LR2D3557
- Item #:
- 55472
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
LR2D3357 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 22kW@400V thanks to a thermal range 37-50A, a tripping class 20 and phase unbalance protection. LR2D3357 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 37-50A, a tripping class 20 and phase unbalance detection, it protects motors 22kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D80 and D95 to form a compact starter. Light and compact, 70mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Manuals and Documentation
| Catalog Number | LR2D3557 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=639772&lang=en-us |
| GTIN | 03389110229103 |
