Square D

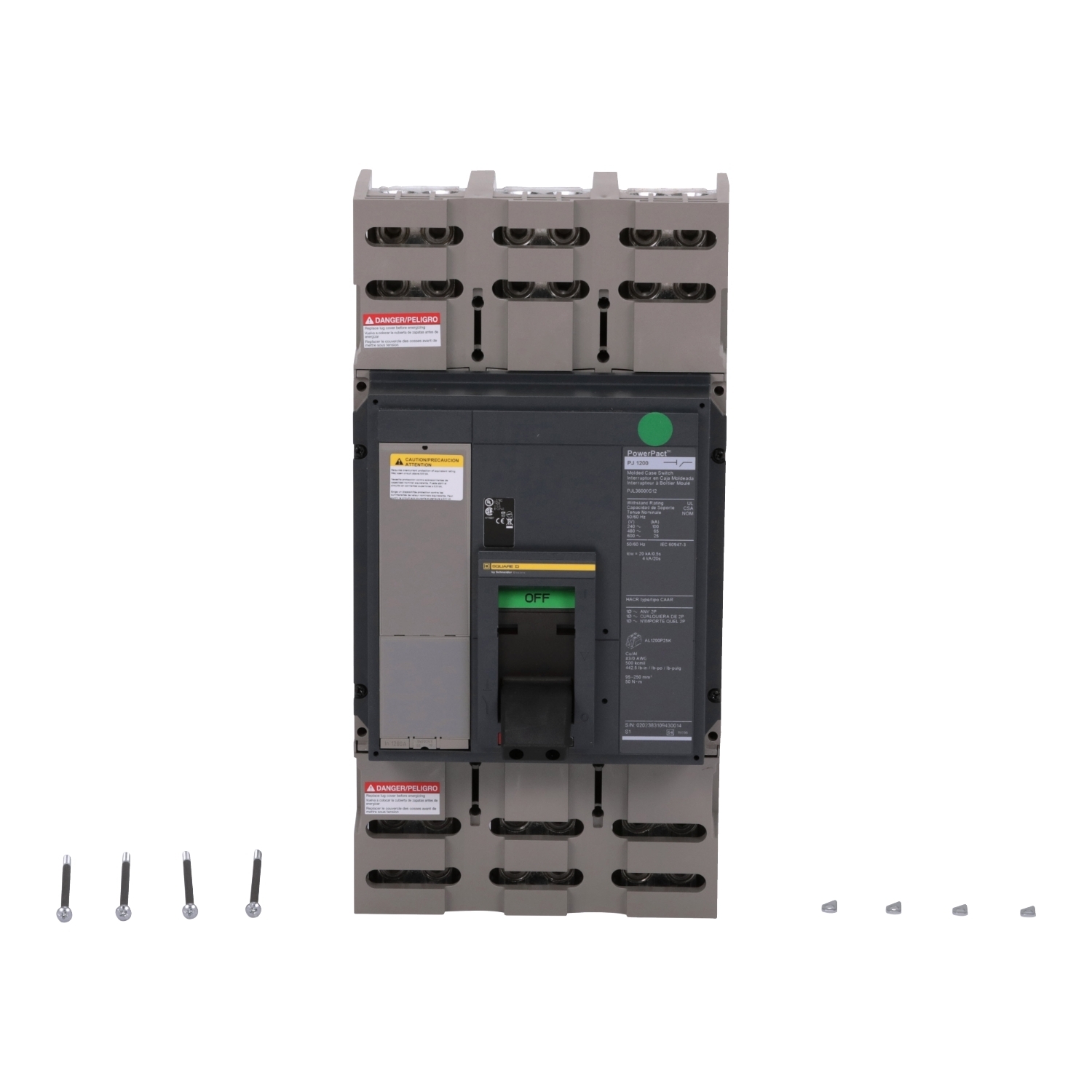

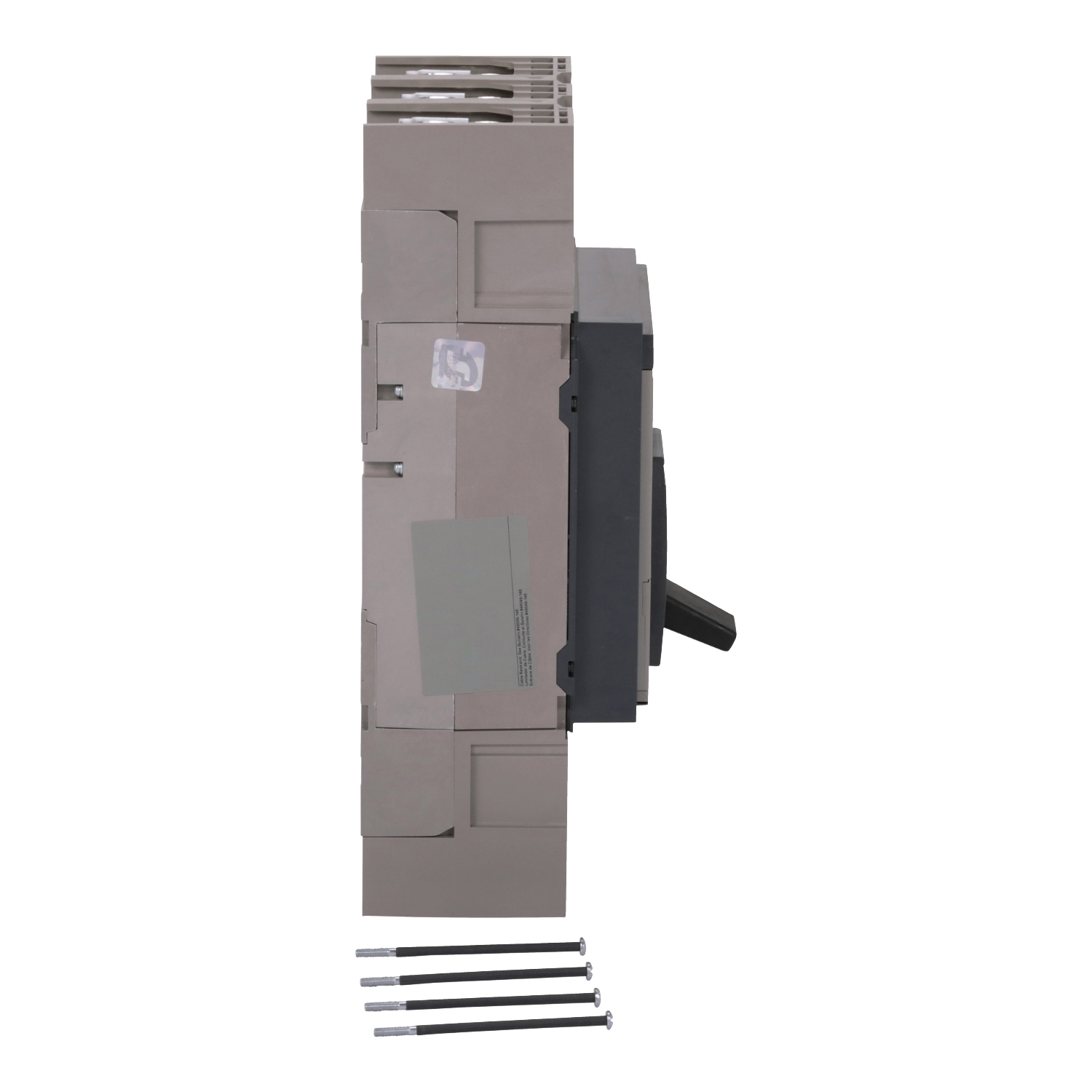

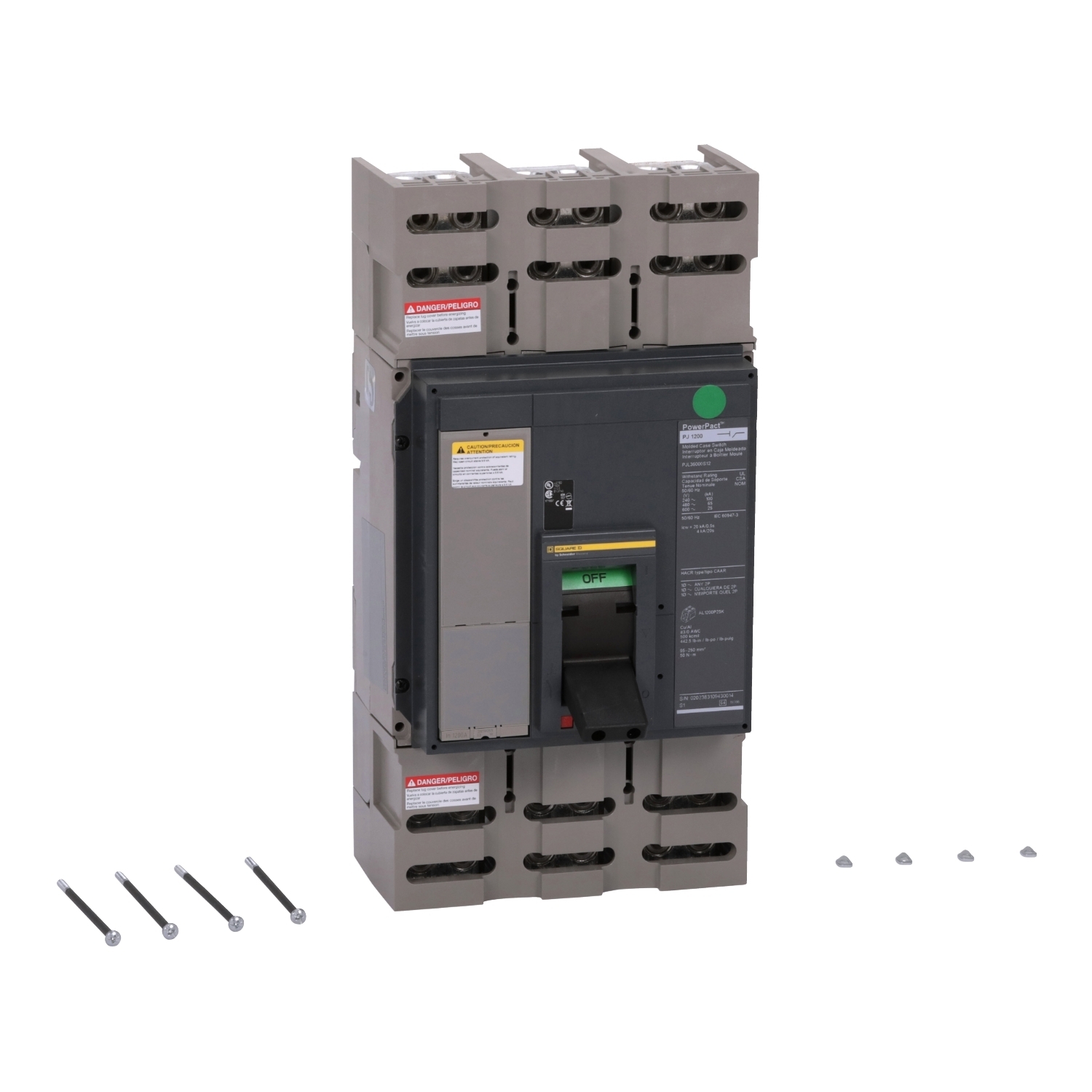

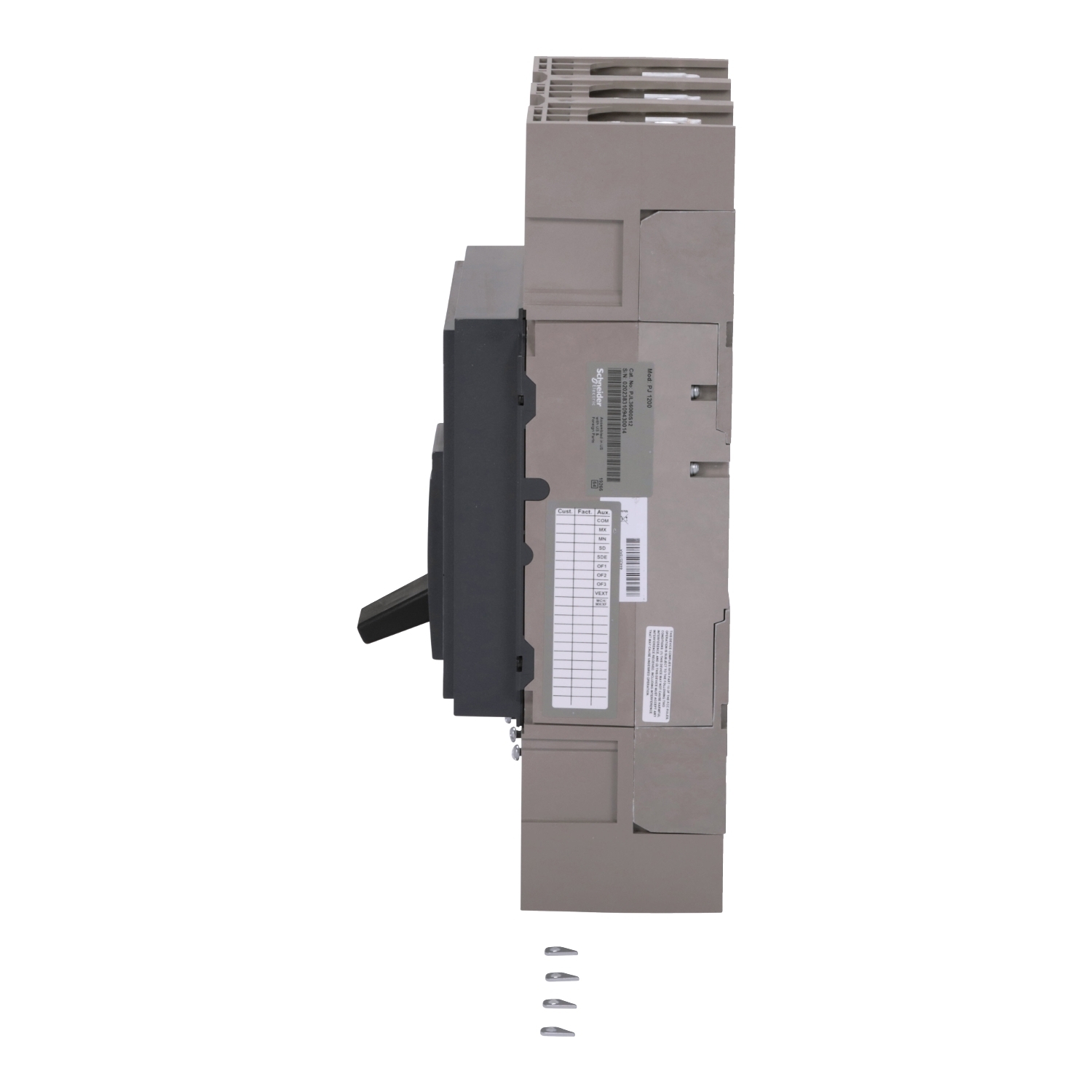

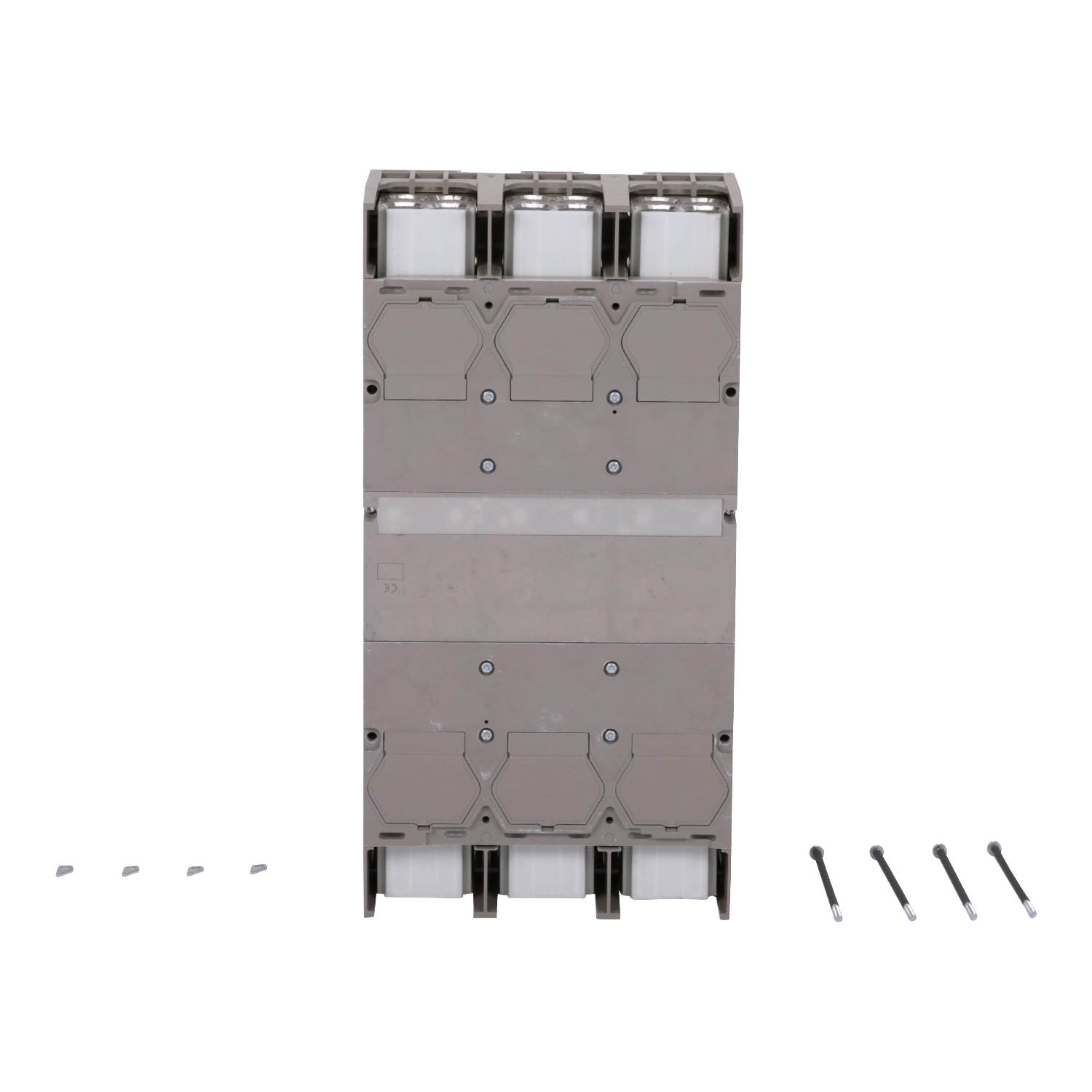

PJL36000S12 PowerPact MasterPact Automatic Molded Case Switch, 600 V AC, 1200 A, 25/65/100 kA Interrupt, 3 Poles, Magnetic Trip

MFR:
Schneider Electric
MFR #:
PJL36000S12
UPC:
785901760252
Item #:
554648

Availability

Location Available Qty
Available Available to Order
$12,855.92 each

PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.

Manuals and Documentation
Catalog Number PJL36000S12
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, line;lugs, load;4 x AWG 3/0...500 kcmil ( aluminium/copper )
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432649&lang=en-us
UPC 785901760252
GTIN 00785901760252
Width 16.54
Width UOM Inch
Height 16.24
Height UOM Inch
Depth 14.49 IN
Cross Reference Products GEIndust SKDA36AN1200|Schneider NCL3600012M|Schneider PJL36000S12|SquareD PJL36000S12
